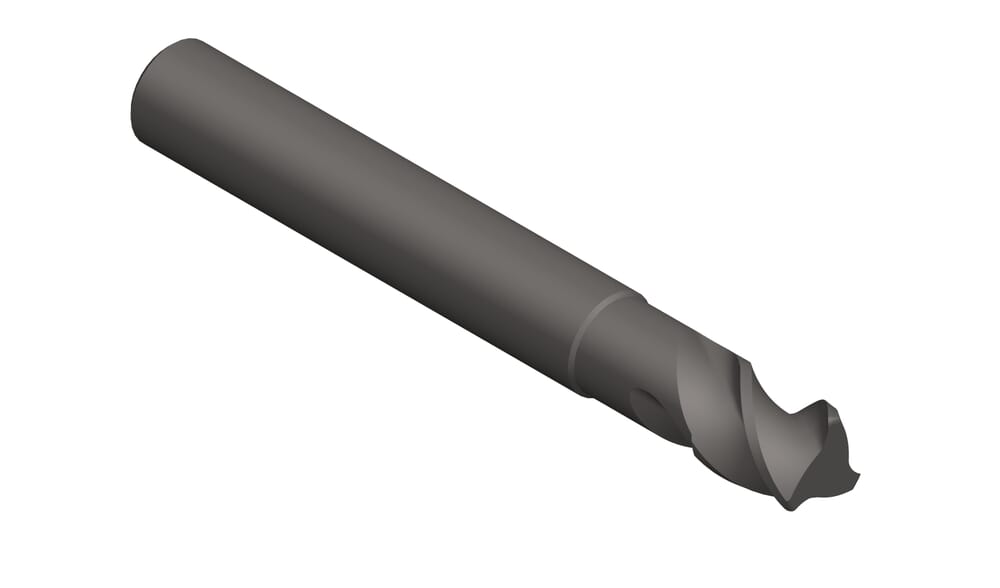

DSR.3.020.38.03 TS3K
DS Milling cutter
Part number DSR30203803TS3K
HORN DS Milling cutter DSR.3.020.38.03 TS3K for Milling
Please note:Technical instructions
eclass-shortcut
21-18-06-01
Total length (l1)
38
mm
Effective cutting length (l2)
3
mm
Corner radius (r)
0.2
mm
Neck diameter (d3)
1.9
mm
ISO_CCTMS
ZYL01F3000h$06
DIN_CCTMS
ZYL00300105
Number of teeth (Z)
3
St.
Cutting diameter (d1)
2
mm
Neck length (l3)
10.5
mm
Shank diameter (d2)
3
mm
| Downloads | |
|---|---|
| DSR_3_020_38_03.STP | Download |
| Download all files | |
