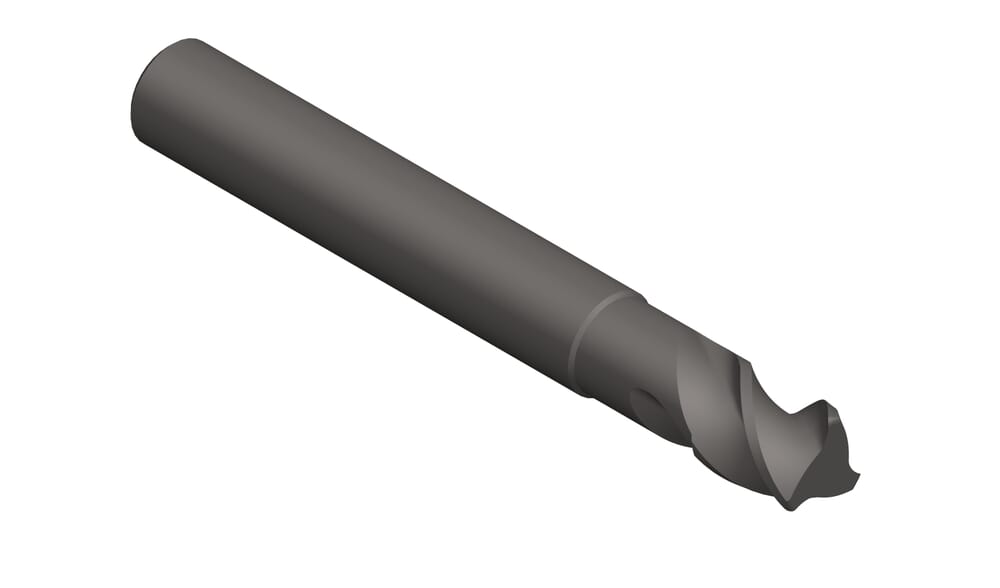

DSR.3.030.38.03 TS3K
DS Milling cutter
Part number DSR30303803TS3K
HORN DS Milling cutter DSR.3.030.38.03 TS3K for Milling
Please note:Technical instructions
eclass-shortcut
21-18-06-01
Total length (l1)
38
mm
Effective cutting length (l2)
4
mm
Corner radius (r)
0.2
mm
Neck diameter (d3)
2.9
mm
ISO_CCTMS
ZYL01F3000h$06
DIN_CCTMS
ZYL00300105
Number of teeth (Z)
3
St.
Cutting diameter (d1)
3
mm
Neck length (l3)
10.5
mm
Shank diameter (d2)
3
mm
| Downloads | |
|---|---|
| DSR30303803_20210629_150840555.DXF | Download |
| DSR30303803_20230112_193436557.STP | Download |
| Download all files | |
