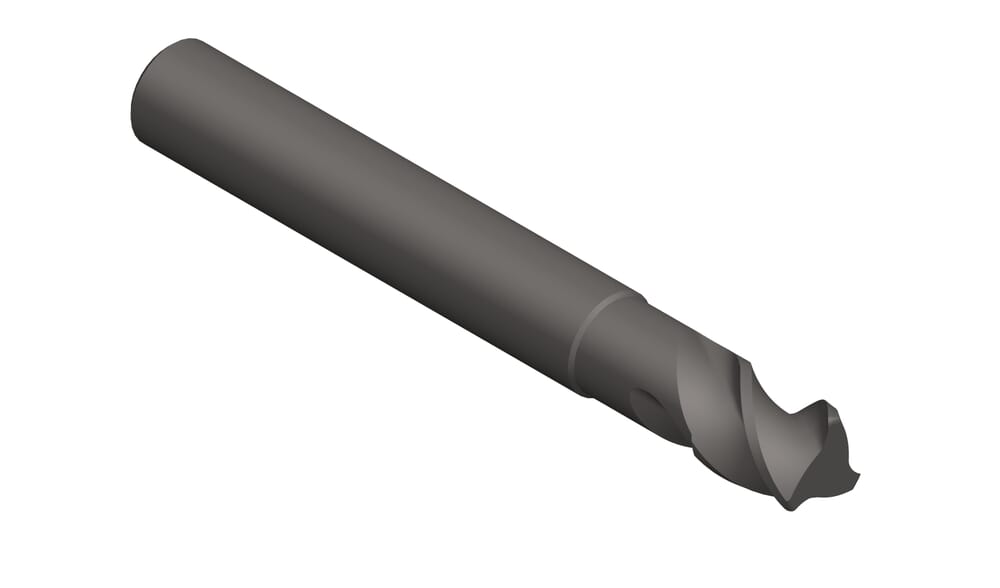

DSR.3.080.63.08 TS3K
DS Milling cutter
Part number DSR30806308TS3K
HORN DS Milling cutter DSR.3.080.63.08 TS3K for Milling
Please note:Technical instructions
eclass-shortcut
21-18-06-01
Total length (l1)
63
mm
Effective cutting length (l2)
9
mm
Corner radius (r)
0.5
mm
Neck diameter (d3)
7.4
mm
ISO_CCTMS
ZYL01F8000h$06
DIN_CCTMS
ZYL00800105
Number of teeth (Z)
3
St.
Cutting diameter (d1)
8
mm
Neck length (l3)
20.5
mm
Shank diameter (d2)
8
mm
| Downloads | |
|---|---|
| DSR30806308_20210629_150912962.DXF | Download |
| DSR30806308_20230112_200954901.STP | Download |
| Download all files | |
