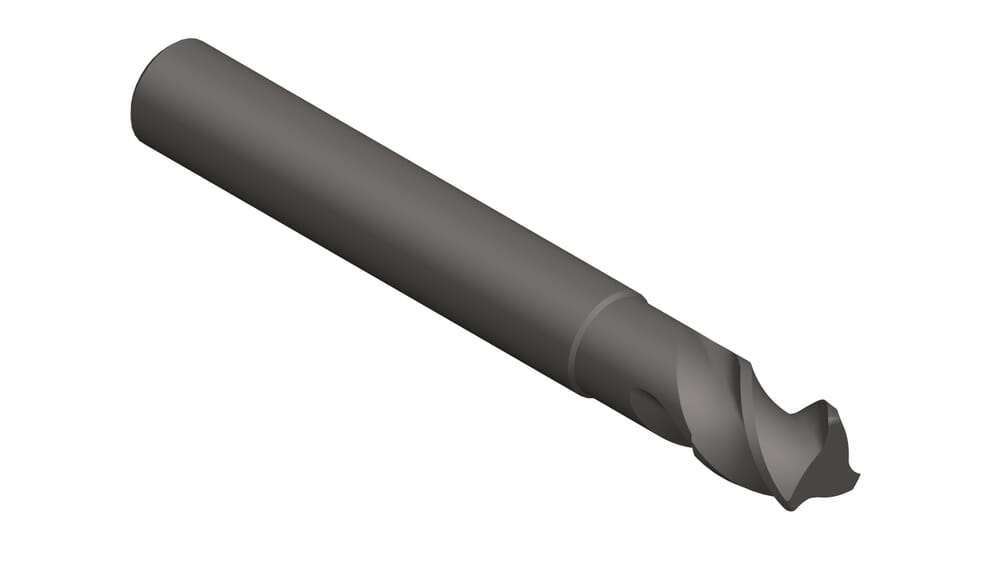

DSR.3.100.69.10 TS3K
DS Milling cutter
Part number DSR31006910TS3K
HORN DS Milling cutter DSR.3.100.69.10 TS3K for Milling
Please note:Technical instructions
eclass-shortcut
21-18-06-01
Total length (l1)
69
mm
Effective cutting length (l2)
12
mm
Corner radius (r)
0.5
mm
Neck diameter (d3)
9.4
mm
ISO_CCTMS
ZYL01G1000h$06
DIN_CCTMS
ZYL01000105
Number of teeth (Z)
3
St.
Cutting diameter (d1)
10
mm
Neck length (l3)
25.5
mm
Shank diameter (d2)
10
mm
| Downloads | |
|---|---|
| DSR31006910_20210629_150940165.DXF | Download |
| DSR31006910_20230112_201024912.STP | Download |
| Download all files | |
