DSRV.5.100.150.30 IG3I

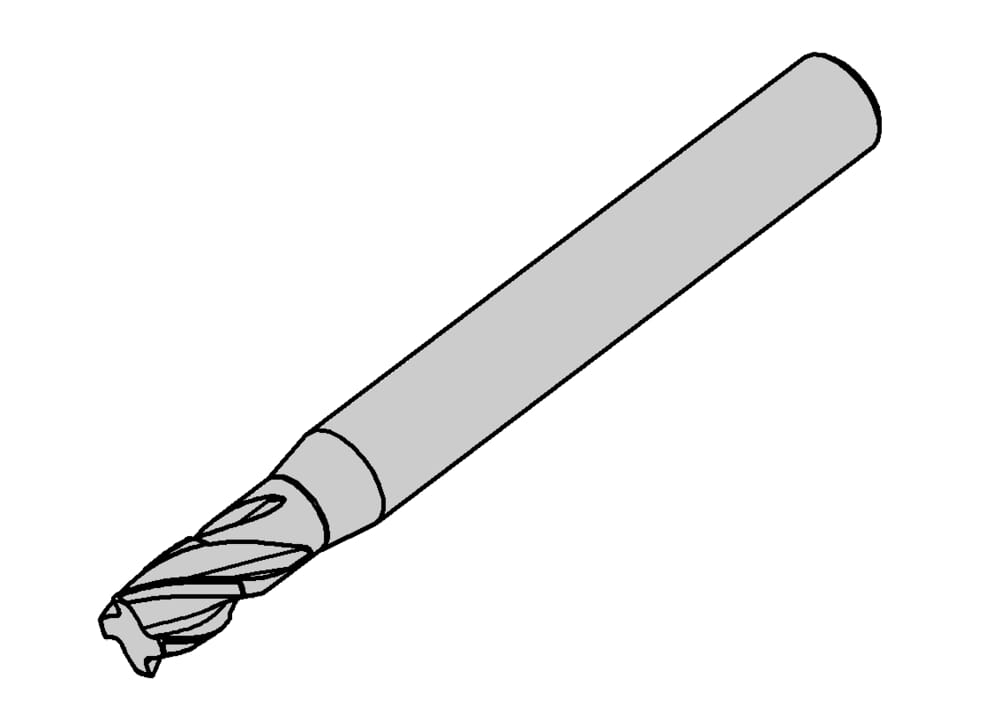

DS-endmill - Ø10.0mm corner radii = 1.5mm length = 3xØ Z = 5 effective

Part number DSRV510015030IG3I

HORN DS-endmill - Ø10.0mm corner radii = 1.5mm length = 3xØ Z = 5 effective DSRV.5.100.150.30 IG3I for Milling

DIN_CCTMS

ZYL01000105

eclass-shortcut

21-18-06-01

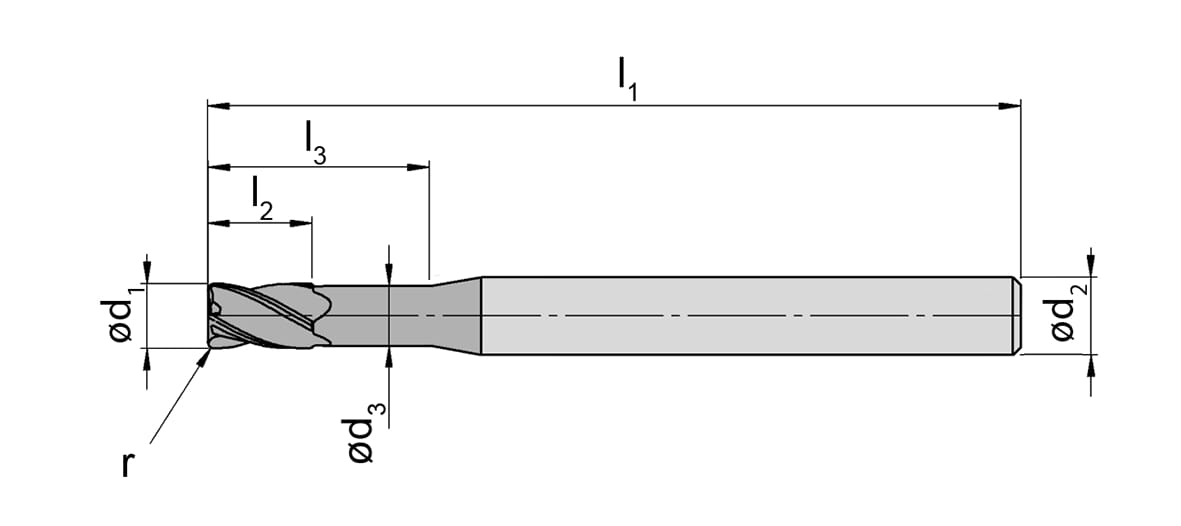

Total length (l1)

72 mm

Effective cutting length (l2)

21 mm

Corner radius (r)

1.5 mm

Form (Form)

Neck diameter (d3)

9.5 mm

ISO_CCTMS

ZYL01G1000h$06

Number of teeth (Z)

5 St.

Cutting diameter (d1)

10 mm

Neck length (l3)

30 mm

Shank diameter (d2)

10 mm
