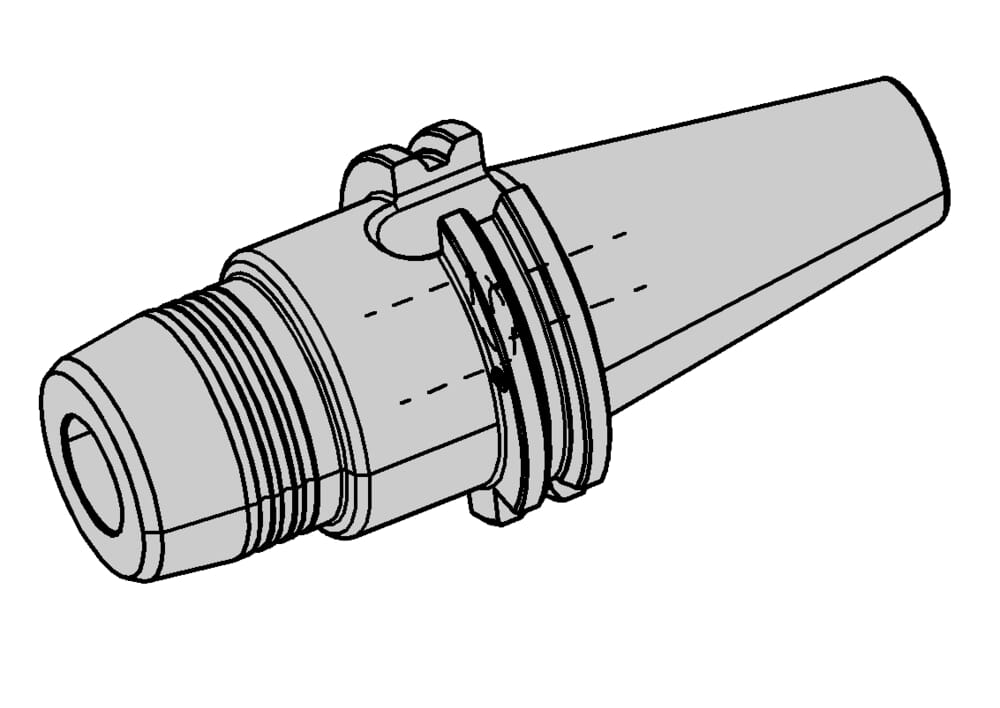

HDC.SK40.20.080
Part number HDCSK4020080
HORN HDC.SK40.20.080 for
Please note:Technical instructions

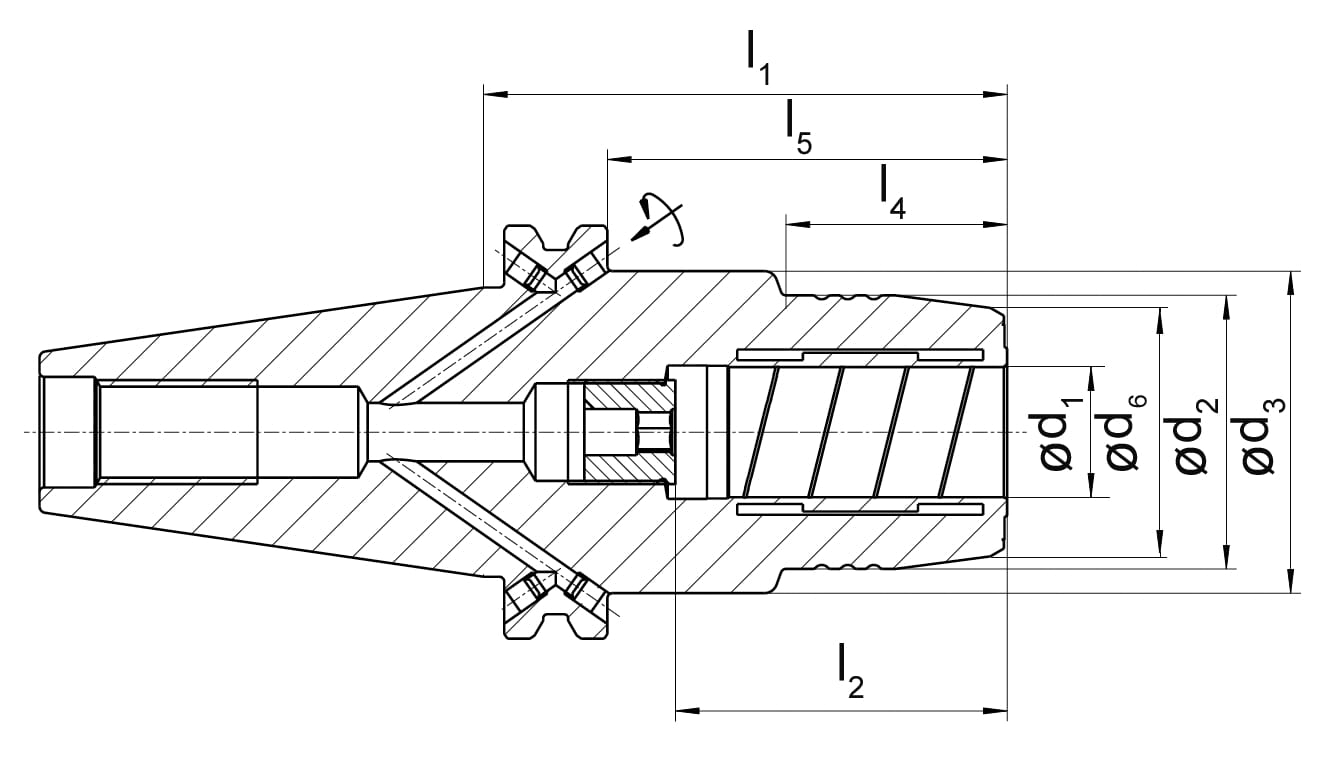

Neck length (l5)
61.5
mm
Largest outer diameter (d3)
49.5
mm
Maximum clamping length (l2)
51
mm
Working length, Extension length (l4)
34
mm
Clamping diameter (d1)
20
mm
System (System)
SK 40
Smallest outer diameter (d6)
38
mm
Weight [kg] (Gewicht [kg])
1.4
kg
Cone diameter (d2)
42
mm
Total length (l1)
80.5
mm
Tightening torque (Mmin [Nm])
330
Nm
