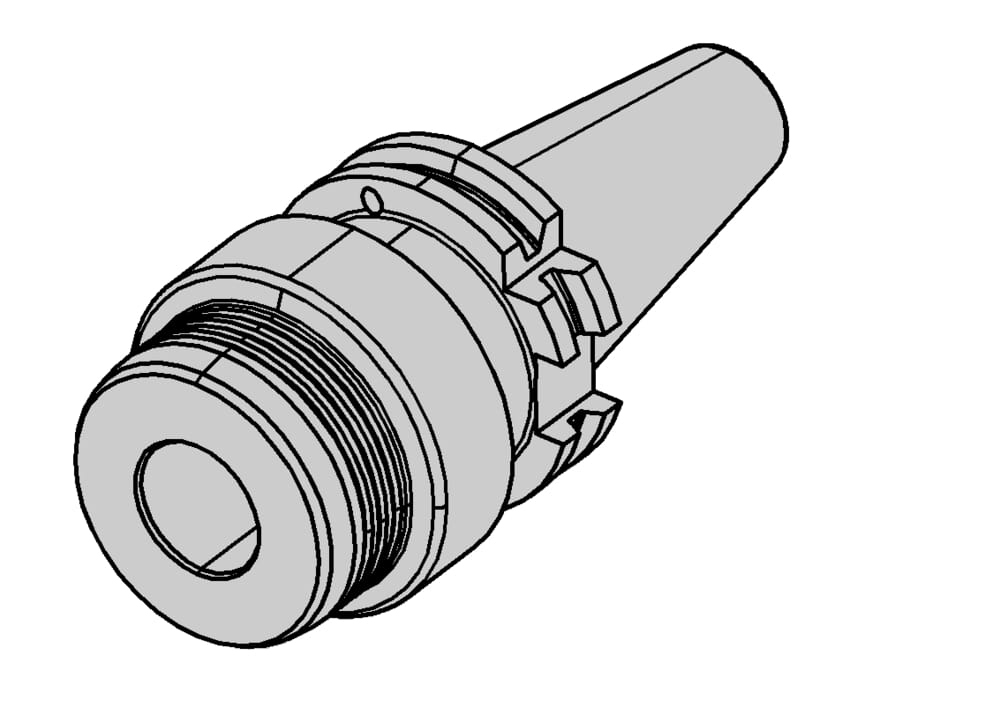

HDR.BT40.20.090
Hydraulic Toolholder
Part number HDRBT4020090
HORN Hydraulic Toolholder HDR.BT40.20.090 for
Please note:Technical instructions

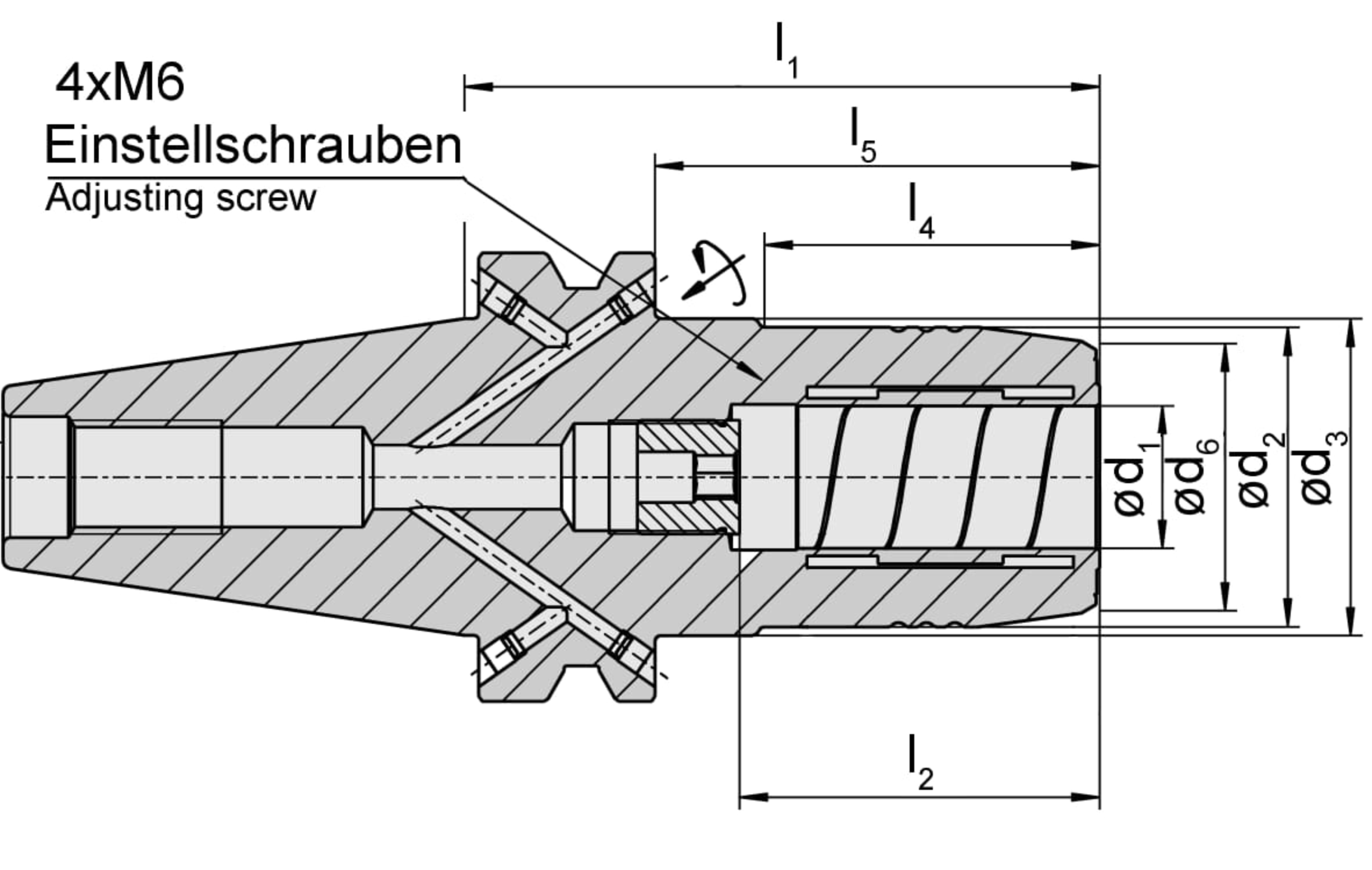

Neck length (l5)
63
mm
Largest outer diameter (d3)
44.5
mm
Maximum clamping length (l2)
51
mm
Working length, Extension length (l4)
47.5
mm
Clamping diameter (d1)
20
mm
System (System)
JIS-BT 40
Smallest outer diameter (d6)
38
mm
Weight [kg] (Gewicht [kg])
1.5
kg
Cone diameter (d2)
42
mm
Total length (l1)
90
mm
Tightening torque (Mmin [Nm])
330
Nm
