HDRK.HSKC063.20.073

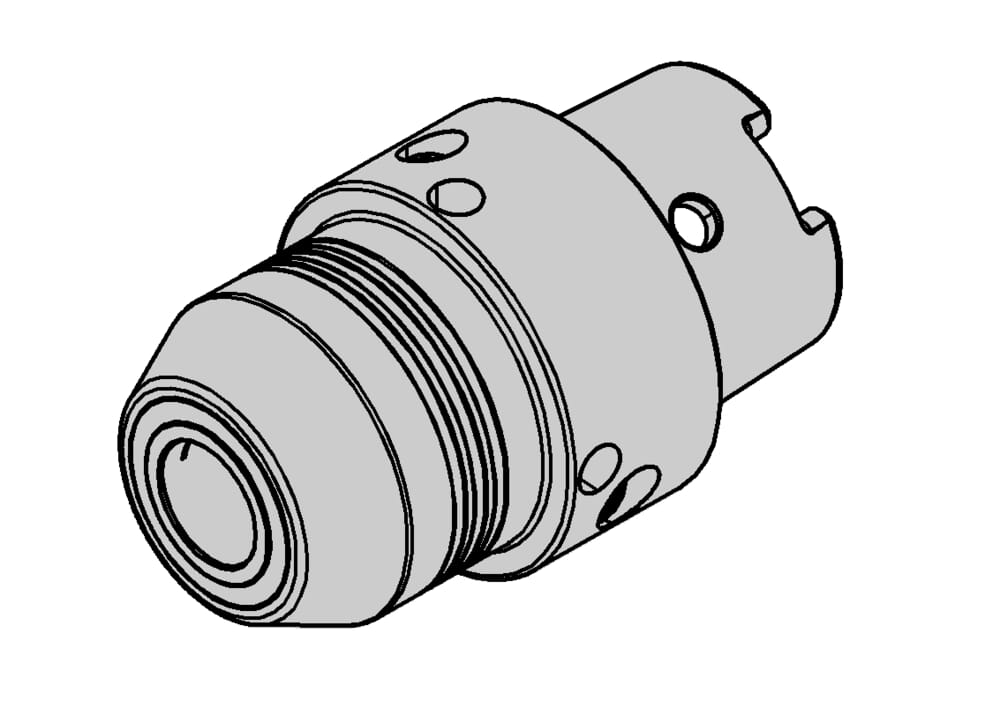

Hydraulic Expansion Adjusting Toolholder
Part number HDRKHSKC06320073
HORN Hydraulic Expansion Adjusting Toolholder HDRK.HSKC063.20.073 for
Please note:Technical instructions

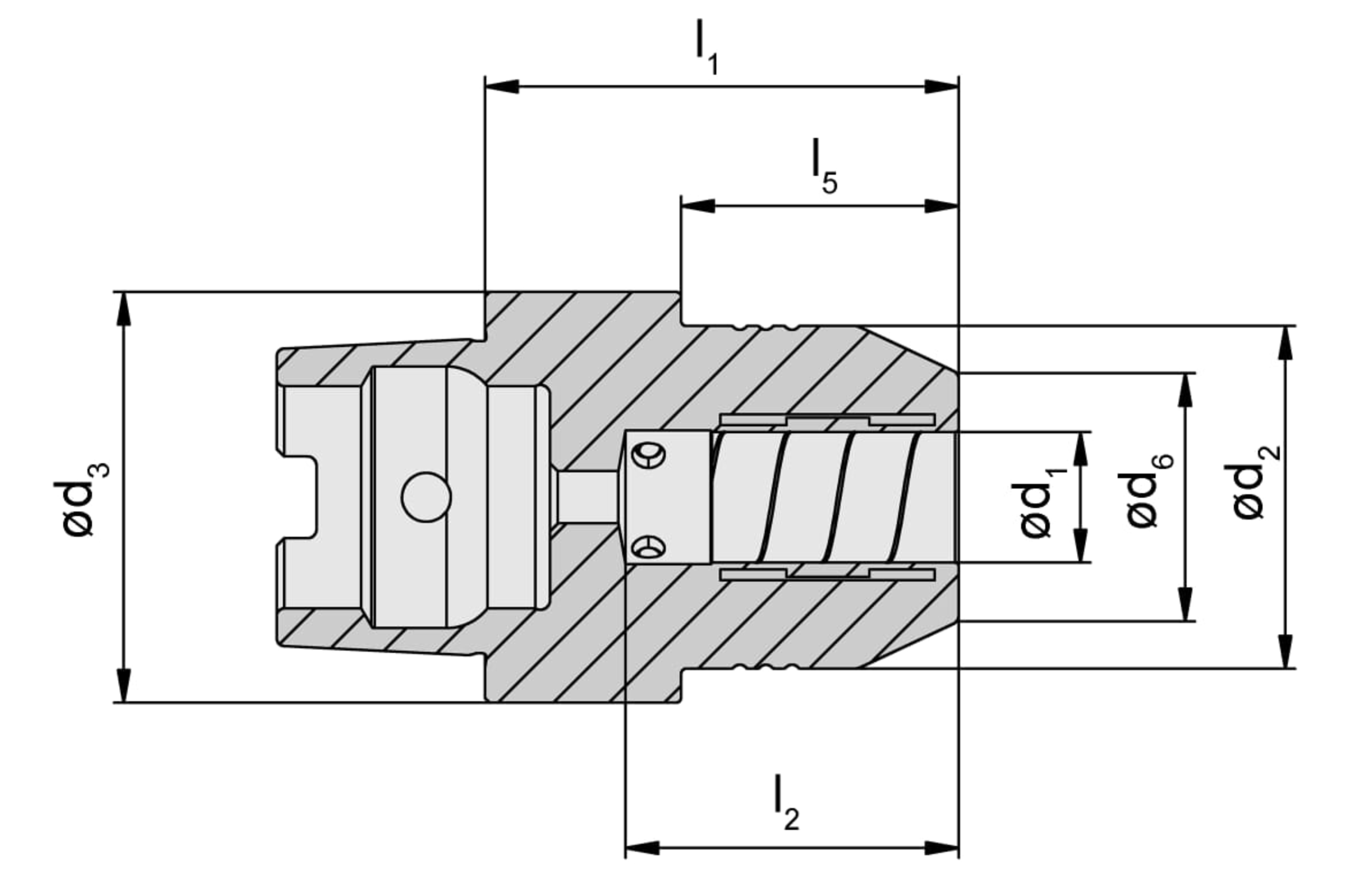

Neck length (l5)
42.5
mm
Largest outer diameter (d3)
52.5
mm
Maximum clamping length (l2)
51
mm
Clamping diameter (d1)
20
mm
System (System)
HSK-C 63
Smallest outer diameter (d6)
38
mm
Weight [kg] (Gewicht [kg])
1.25
kg
Cone diameter (d2)
52.5
mm
Total length (l1)
72.5
mm
Tightening torque (Mmin [Nm])
82
Nm
| Downloads | |
|---|---|
| HDRKHSKC06320073_20210629_154638416.DXF | Download |
| HDRKHSKC06320073_20230112_175219071.STP | Download |
| Download all files | |
