L381.X090.27.04
Toolholders
Part number L381X0902704

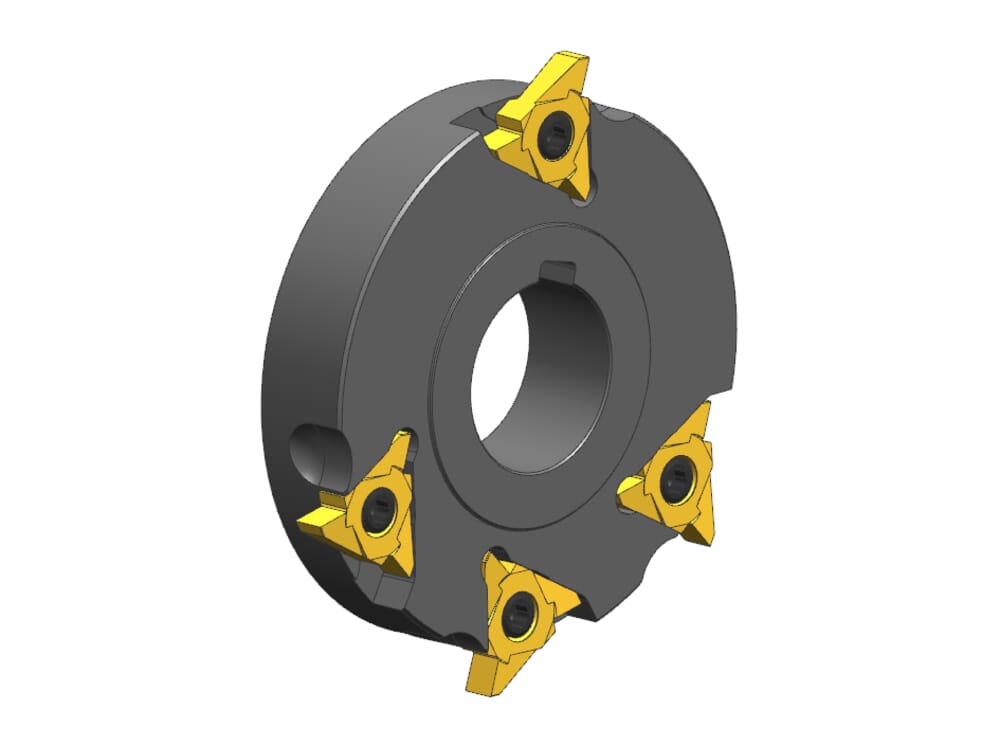

HORN Toolholders L381.X090.27.04 for Milling
Please note:Technical instructions

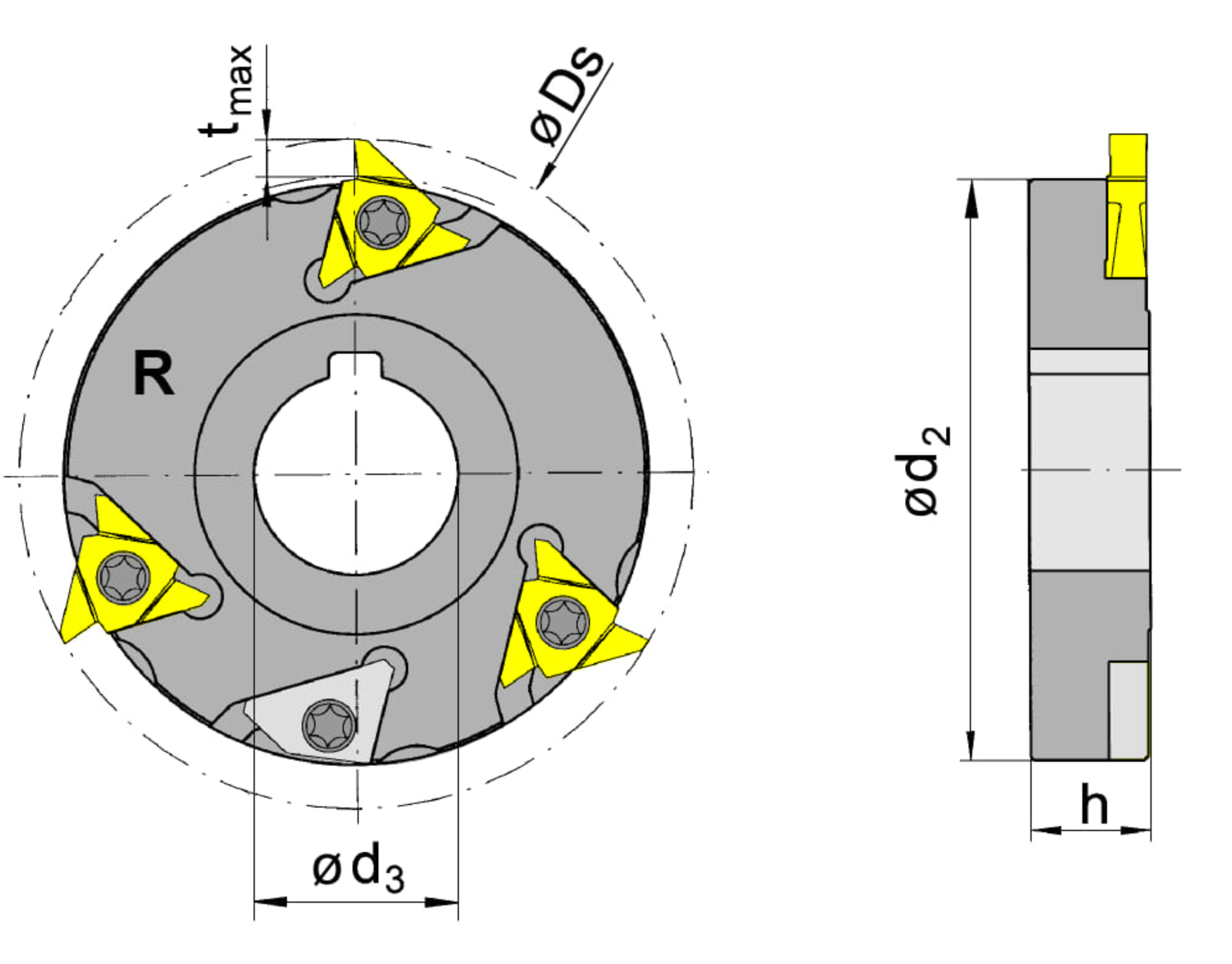

Cutting diameter (Ds)
90
mm
Miller height, miller length, miller thickness (h)
16.2
mm
Machine type (Maschinentyp)
Index ABC
Clamping diameter (d3)
27
mm
ISO_CCTWS
HORN314041101L$$$$$
DIN_CCTWS
HORN-314041101L
Katalog_CCTWS
314041L
Maximum milling depth/ depth of groove (tmax)
5
mm
Miller body diameter (d2)
78
mm
eclass-shortcut
21-18-09-90
| Downloads | |
|---|---|
| L381X0902704_20210629_163838508.DXF | Download |
| L381_X090_27_04_20171121_234753151.STP | Download |
| Download all files | |
