M101.0100.22.20
Toolholder
Part number M10101002220

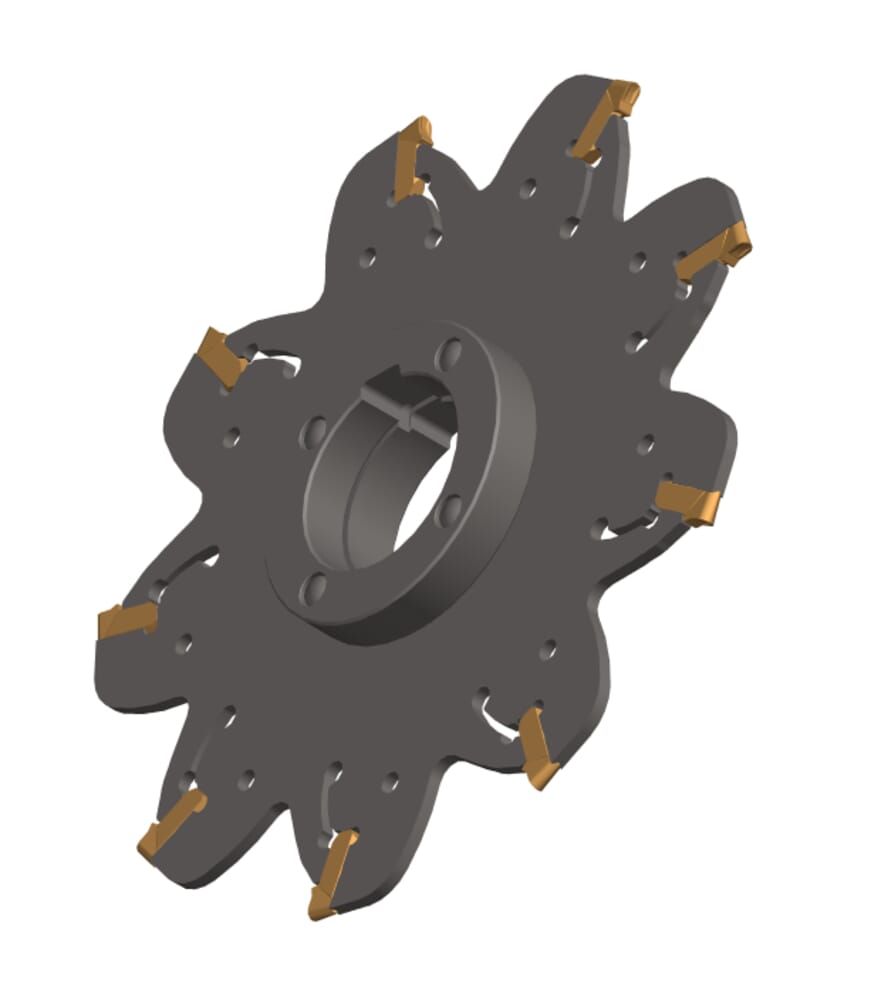

HORN Toolholder M101.0100.22.20 for Milling
Please note:Technical instructions

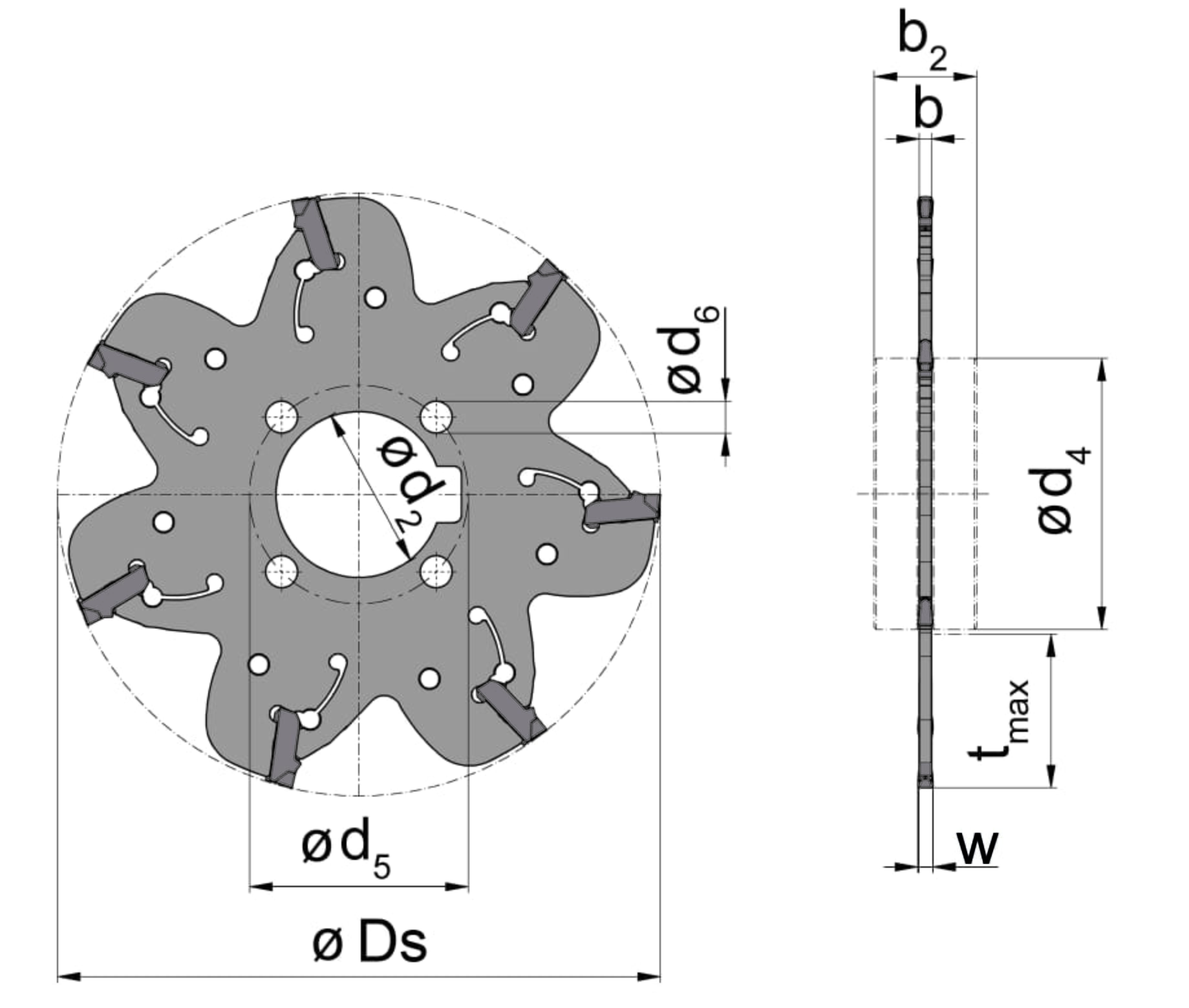

Wide disc cutter without cutting insert (b)
1.6
mm
eclass-shortcut
21-18-08-03
milling-body-wide-met
1.6
mm
Number of revolutions maximum (nmax)
5000
Min-1
Cutting width minimum (Schneidbreite)
2
mm
Diameter for through hole (d6)
4.25
mm
Diameter of driver ring (d4)
36
mm
Total width with drive rings (b2)
13.6
mm
Maximum milling depth/ depth of groove (tmax)
30
mm
Cutting width maximum (Schneidbreite)
2.3
mm
Plating seat size (Größe)
20
Mounting hole diameter (d2)
22
mm
ISO_CCTMS
FDA01G2200$$$$
DIN_CCTMS
FDA02200100
Katalog_CCTWS
10120
DIN_CCTWS
HORN-101200058N
ISO_CCTWS
HORN101200058N$$$$$
Number of teeth (Z)
9
St.
Bore diameter miller body (d5)
29
mm
Cutting diameter (Ds)
100
mm
| Downloads | |
|---|---|
| M101_0100_22_20.DXF | Download |
| Download all files | |
