M101.0125.A32.20
milling cutter
Part number M1010125A3220
HORN milling cutter M101.0125.A32.20 for Milling
Please note:Technical instructions

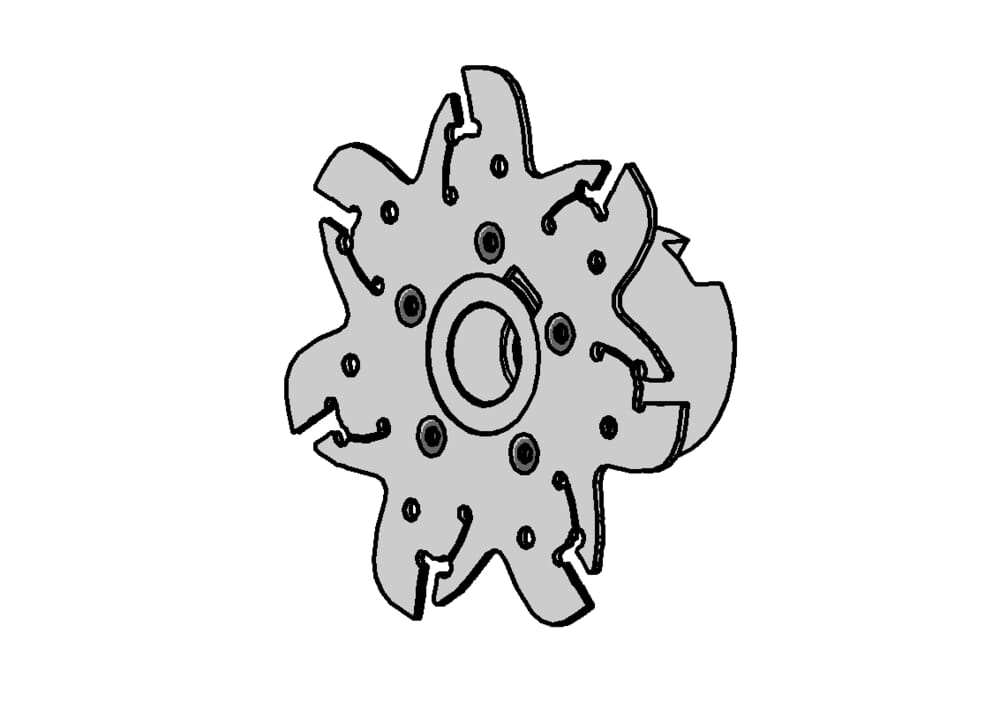

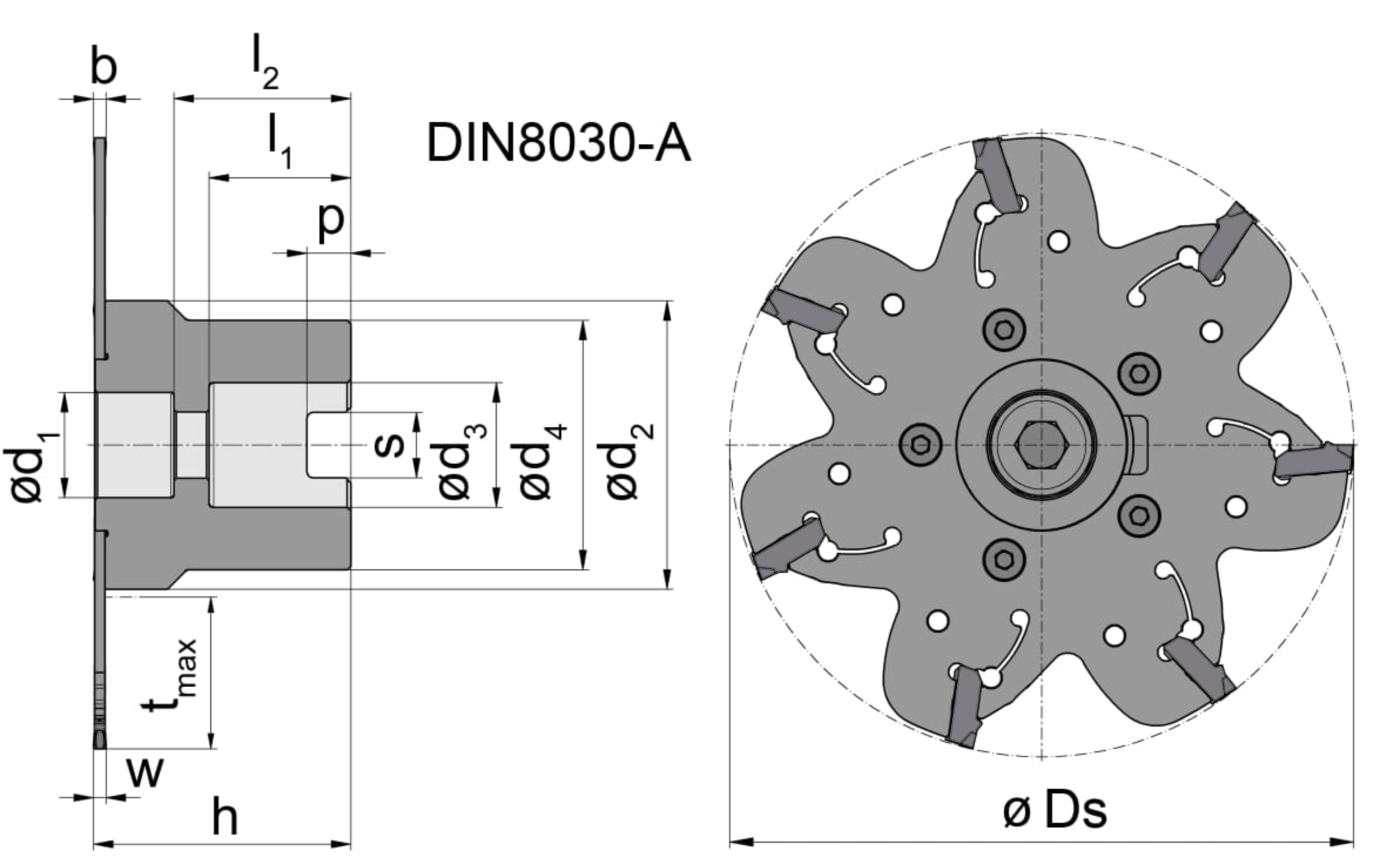

Wide disc cutter without cutting insert (b)
1.6
mm
eclass-shortcut
21-18-08-03
Diameter of the mandrel (d2)
55
mm
Diameter facing system for disk cutters (d3)
32
mm
Number of revolutions maximum (nmax)
4000
Min-1
Cutting width minimum (Schneidbreite)
2
mm
Cutting width maximum (Schneidbreite)
2.3
mm
Plating seat size (Größe)
20
Depth carrier cross groove (P)
8
mm
Width carrier cross groove (s)
14.4
mm
Length from stop to base fastening screw head (l2)
36.7
mm
Mounting hole depth (l1)
25
mm
Neck diameter/ Flange diameter miller mandrel (d4)
45
mm
Lowering for mounting screw head (d1)
28.5
mm
Miller length with indexable insert (h)
50
mm
Maximum milling depth (tmax)
34
mm
ISO_CCTMS
FDA22G3200$$$$
DIN_CCTMS
FDA03202200
Katalog_CCTWS
10120
DIN_CCTWS
HORN-101200058N
ISO_CCTWS
HORN101200058N$$$$$
Number of teeth (Z)
11
St.
Cutting diameter (Ds)
125
mm
