M306.0012.02B
Toolholders
Part number M306001202B

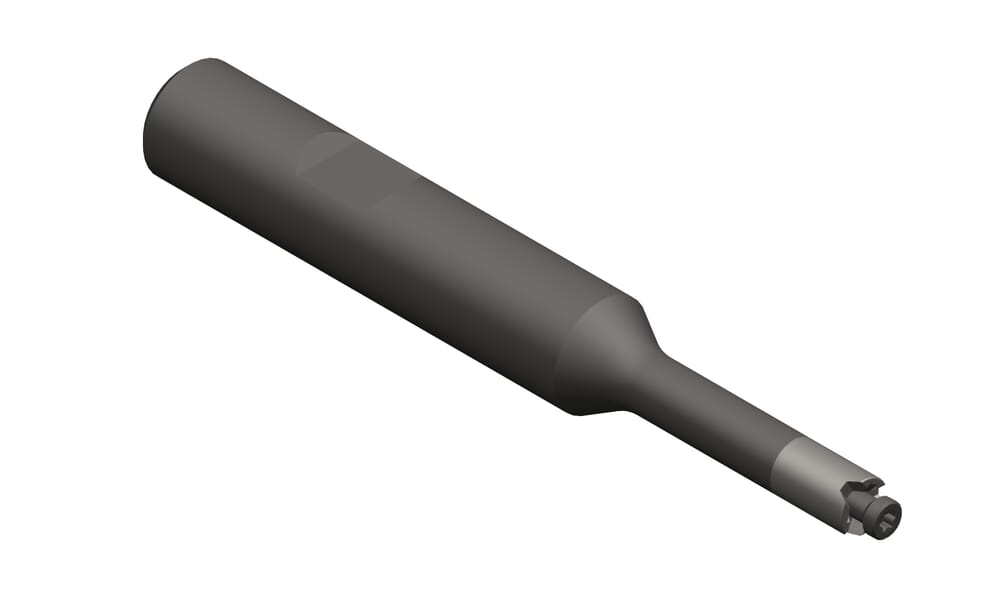

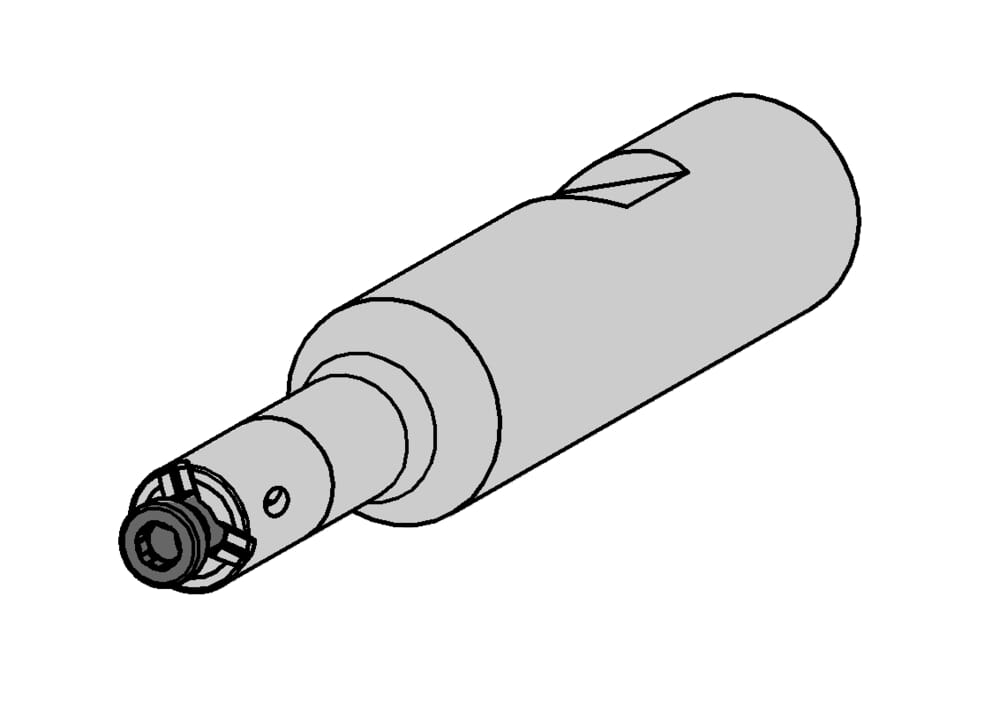

HORN Toolholders M306.0012.02B for Milling
Please note:Technical instructions
DIN_CCTMS
ZYL01201015
eclass-shortcut
21-18-08-90
Form (Form)
HB

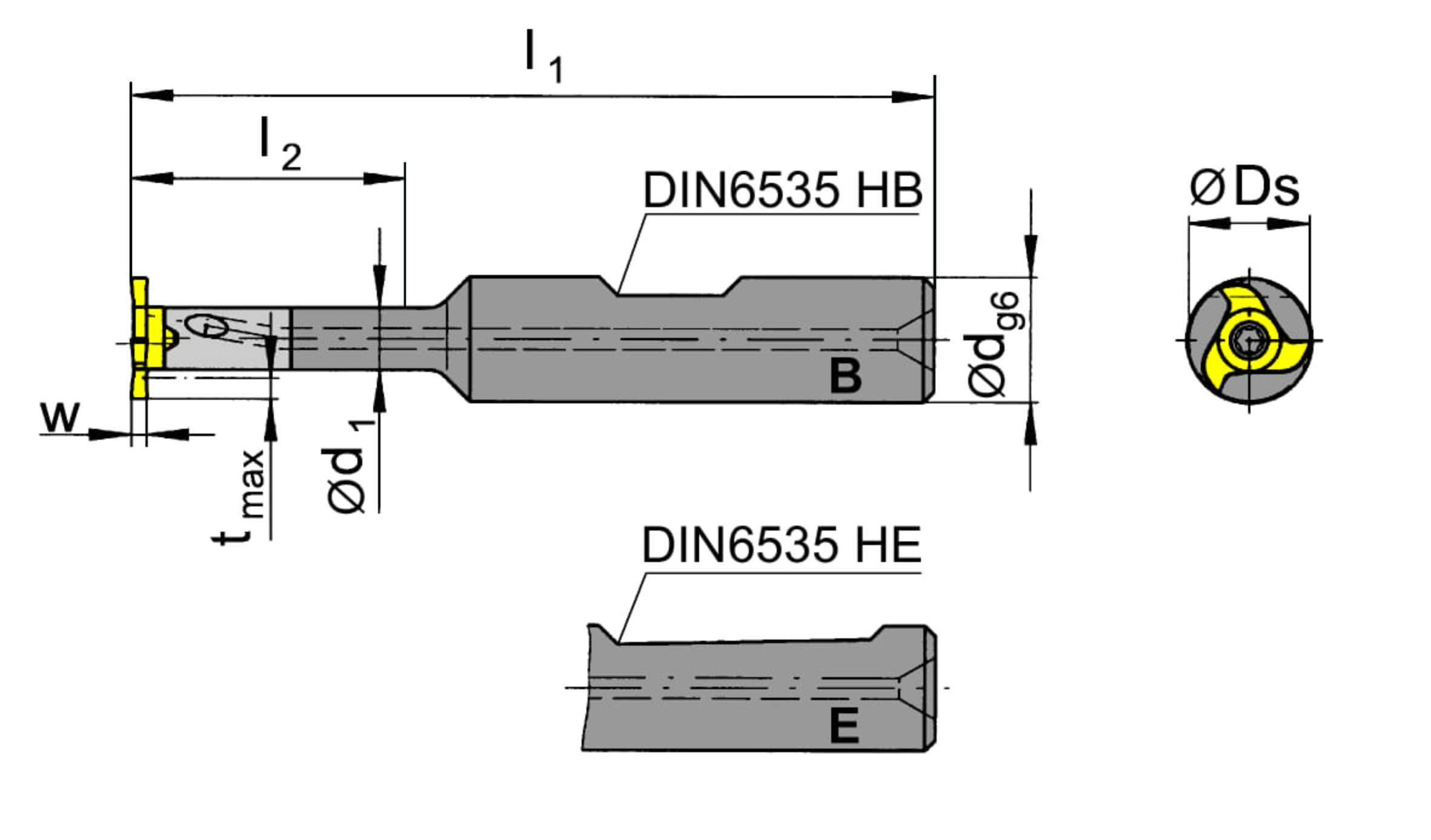

Working length, Neck length, Extension length (l2)
30
mm
Total length insert (l1)
90
mm
Cone diameter (d)
12
mm
Neck diameter (d1)
6
mm
ISO_CCTMS
ZYL10G1200h$06
Katalog_CCTWS
306060R;306060L
DIN_CCTWS
HORN-30606084R;HORN-30606084L
ISO_CCTWS
HORN306060$84R$$$$$;HORN306060$84L$$$$$
Shank diameter (d)
12
mm
| Downloads | |
|---|---|
| M306001202B_20210628_163020922.DXF | Download |
| M306_0012_02B_20171121_190613425.STP | Download |
| Download all files | |
