M310.0050.M10.03
Toolholder
Part number M3100050M1003

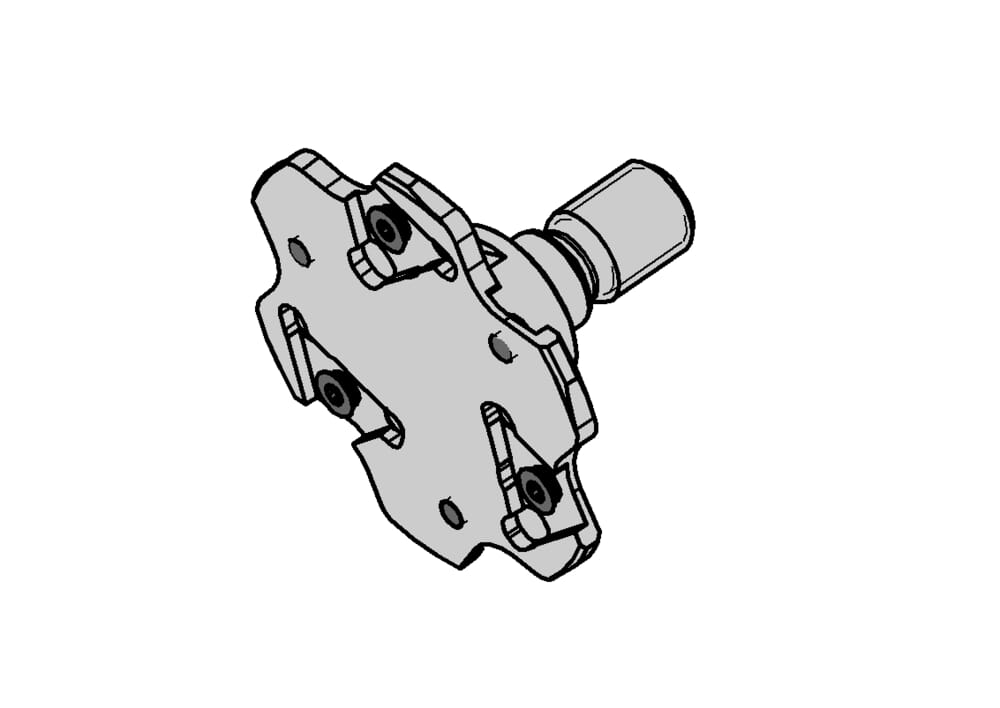

HORN Toolholder M310.0050.M10.03 for Milling
Please note:Technical instructions
ISO_CCTMS
HORN01000105$$
eclass-shortcut
21-18-09-06
Maximum milling depth/ depth of groove (tmax)
15
mm
Key range (SW)
15
mm
Neck diameter on stop (d4)
18
mm
Length from stop (l2)
13
mm
Total milling length with insert (h)
33
mm
Left hand indexable insert (linke WSP)
3x LS310.3017...
Right hand indexable insert (rechte WSP)
3x RS310.3017...
Width of groove (w)
3
mm
Katalog_CCTMS
10001
DIN_CCTMS
HORN-01000115
Katalog_CCTWS
310017R;310017L
DIN_CCTWS
HORN-310017101R;HORN-310017101L
ISO_CCTWS
HORN310017101R$$$$$;HORN310017101L$$$$$
Number of teeth (Z)
3
St.
Cutting diameter (Ds)
50
mm
Screw thread (d2)
M10
