M311.1316.01A

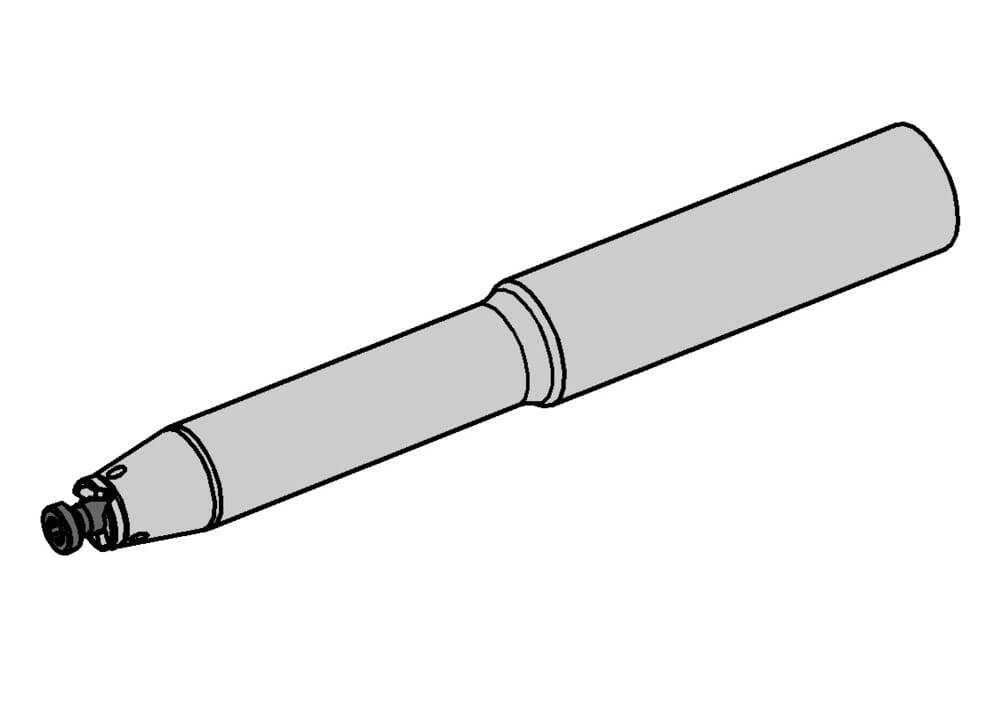

Milling cutter shank
Part number M311131601A
HORN Milling cutter shank M311.1316.01A for Milling
Please note:Technical instructions
DIN_CCTMS
ZYL01600115
eclass-shortcut
21-18-08-90
Form (Form)
HA

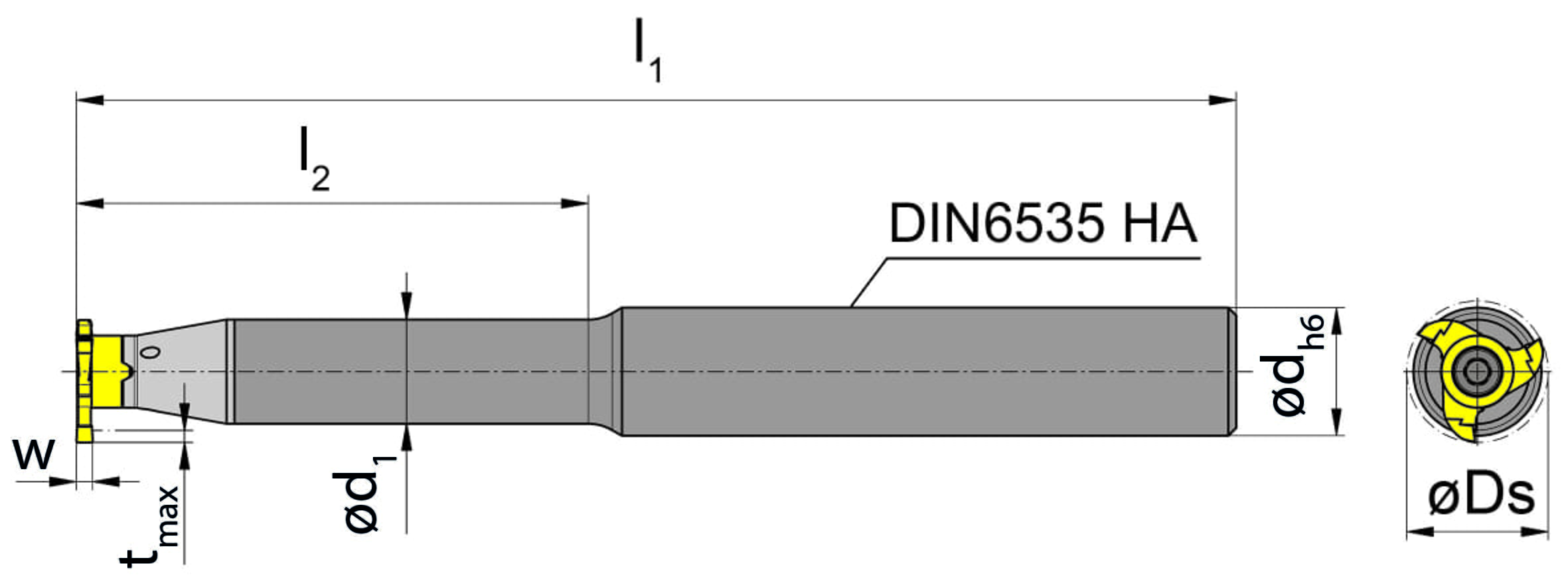

Working length, Neck length, Extension length (l2)
32
mm
Total length insert (l1)
110
mm
cone-diameter-met
16
mm
Neck diameter (d1)
13
mm
ISO_CCTMS
ZYL01G1600h$06
Katalog_CCTWS
311090R
DIN_CCTWS
HORN31109084R
ISO_CCTWS
HORN311090$84R$$$$$
Shank diameter (d)
16
mm
| Downloads | |
|---|---|
| M311131601A.DXF | Download |
| M311_1316_01A.STP | Download |
| Download all files | |
