M313.0016.01B
Toolholders
Part number M313001601B

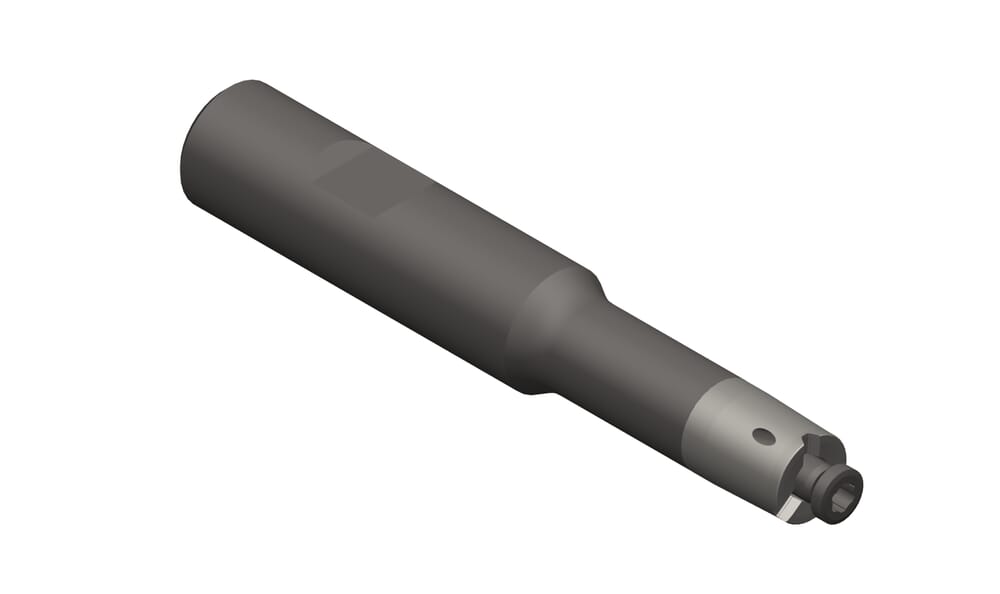

HORN Toolholders M313.0016.01B for Milling
Please note:Technical instructions
DIN_CCTMS
ZYL01601015
eclass-shortcut
21-18-08-90
Form (Form)
HB
Working length, Neck length, Extension length (l2)
42
mm
Total length insert (l1)
100
mm
cone-diameter-met
16
mm
Neck diameter (d1)
12
mm
ISO_CCTMS
ZYL10G1600h$06
Katalog_CCTWS
313113R;313113L
DIN_CCTWS
HORN31311384R;HORN-31311384L
ISO_CCTWS
HORN313113$84R$$$$$;HORN313113$84L$$$$$
Shank diameter (d)
16
mm
| Downloads | |
|---|---|
| M313001601B_20210628_170403249.DXF | Download |
| M313_0016_01B_20171121_215732637.STP | Download |
| Download all files | |
