M328.0020.03B
Toolholders
Part number M328002003B

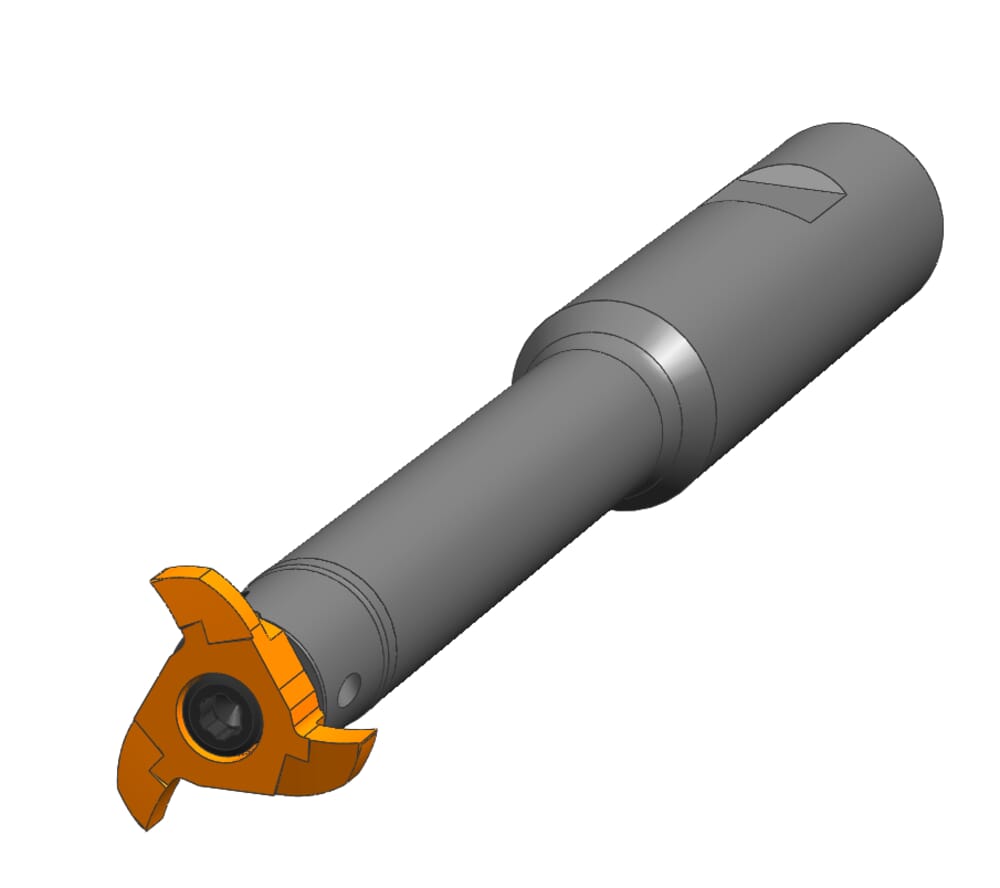

HORN Toolholders M328.0020.03B for Milling
Please note:Technical instructions
DIN_CCTMS
ZYL02001015
eclass-shortcut
21-18-08-90
Form (Form)
HB
Working length, Neck length, Extension length (l2)
85
mm
Total length insert (l1)
160
mm
cone-diameter-met
20
mm
Neck diameter (d1)
14.3
mm
ISO_CCTMS
ZYL10G2000h$06
Katalog_CCTWS
328143R
DIN_CCTWS
HORN32814384R
ISO_CCTWS
HORN328143$84R$$$$$
Shank diameter (d)
20
mm
| Downloads | |
|---|---|
| M328002003B_20210628_171711313.DXF | Download |
| M328_0020_03B_20171121_221141570.STP | Download |
| Download all files | |
