M409.0050.A22.45.05

tangential milling cutters

Part number M4090050A224505

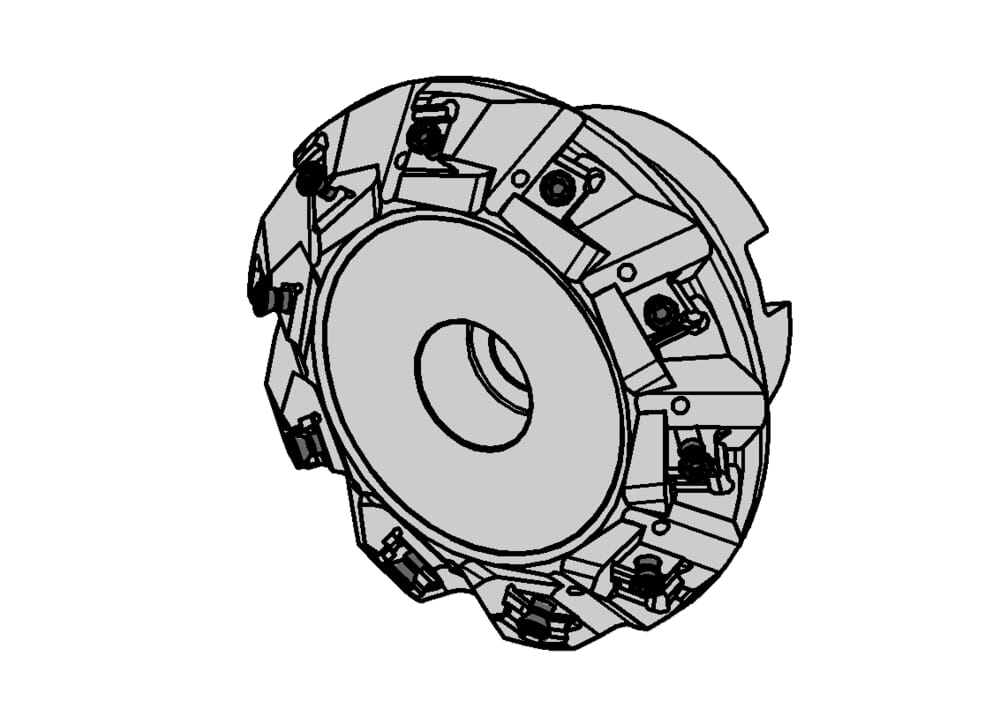

HORN tangential milling cutters M409.0050.A22.45.05 for Milling

cutting-depth-met

6.2 mm

eclass-shortcut

21-02-91-13

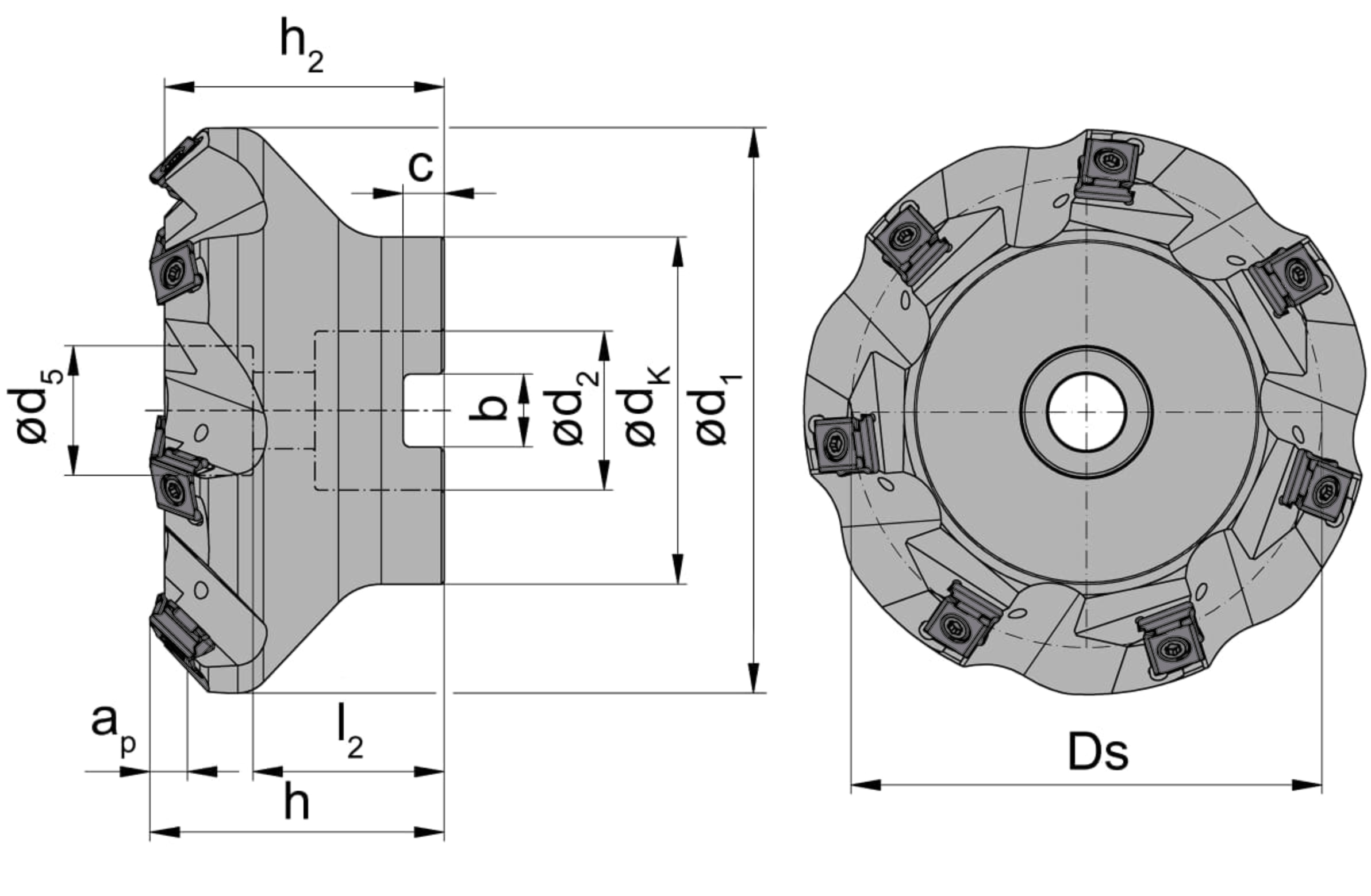

Diameter of the mandrel (dK)

41 mm

Number of revolutions maximum (nmax)

12500 Min-1

Maximum stepover (ap) (ap)

6.2 mm

Depth carrier cross groove (C)

6.3 mm

Width carrier cross groove (b)

10.4 mm

Length from stop to base fastening screw head (l2)

20 mm

Mounting hole diameter (d2)

22 mm

Lowering for mounting screw head (d5)

20 mm

Miller length without indexable insert (h2)

37.5 mm

Miller length with indexable insert (h)

40 mm

ISO_CCTMS

FDA22G2200$$$$

DIN_CCTMS

FDA02202210

Katalog_CCTWS

40900R

DIN_CCTWS

HORN-409003R

ISO_CCTWS

HORN40900$$$3R$$$$$

Diameter miller body (d1)

67 mm

Number of teeth (Z)

5 St.

Cutting diameter (Ds)

50 mm
