M409.032.14.D25.1.02.B

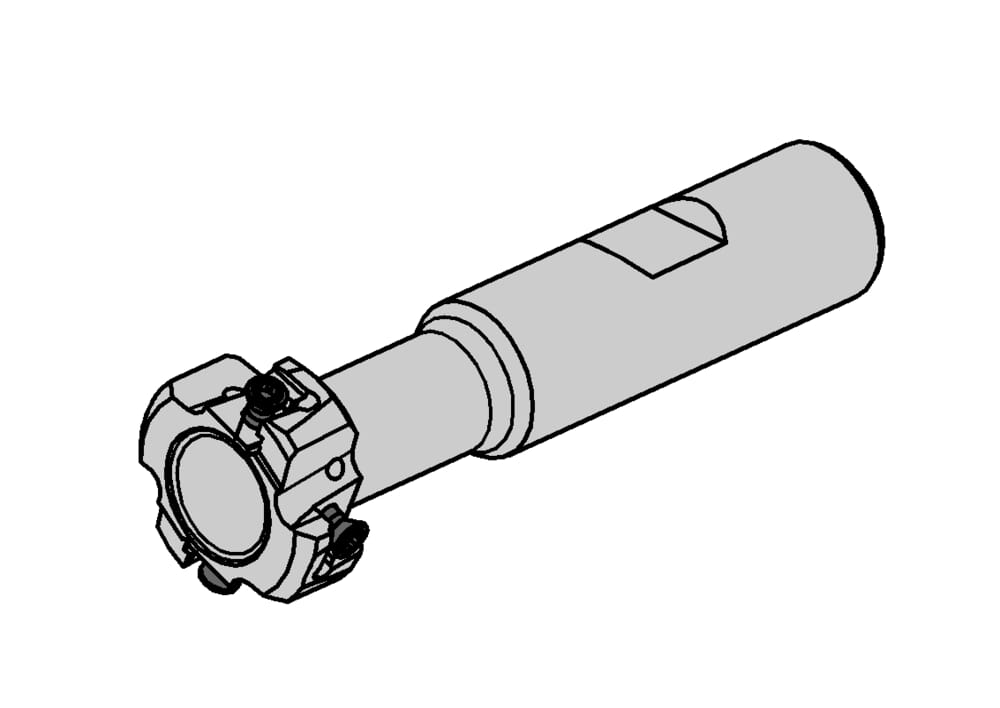

T-Slot cutter

Part number M40903214D25102B

HORN T-Slot cutter M409.032.14.D25.1.02.B for Milling

ISO_CCTMS

ZYL10G2500h$06

eclass-shortcut

21-18-08-90

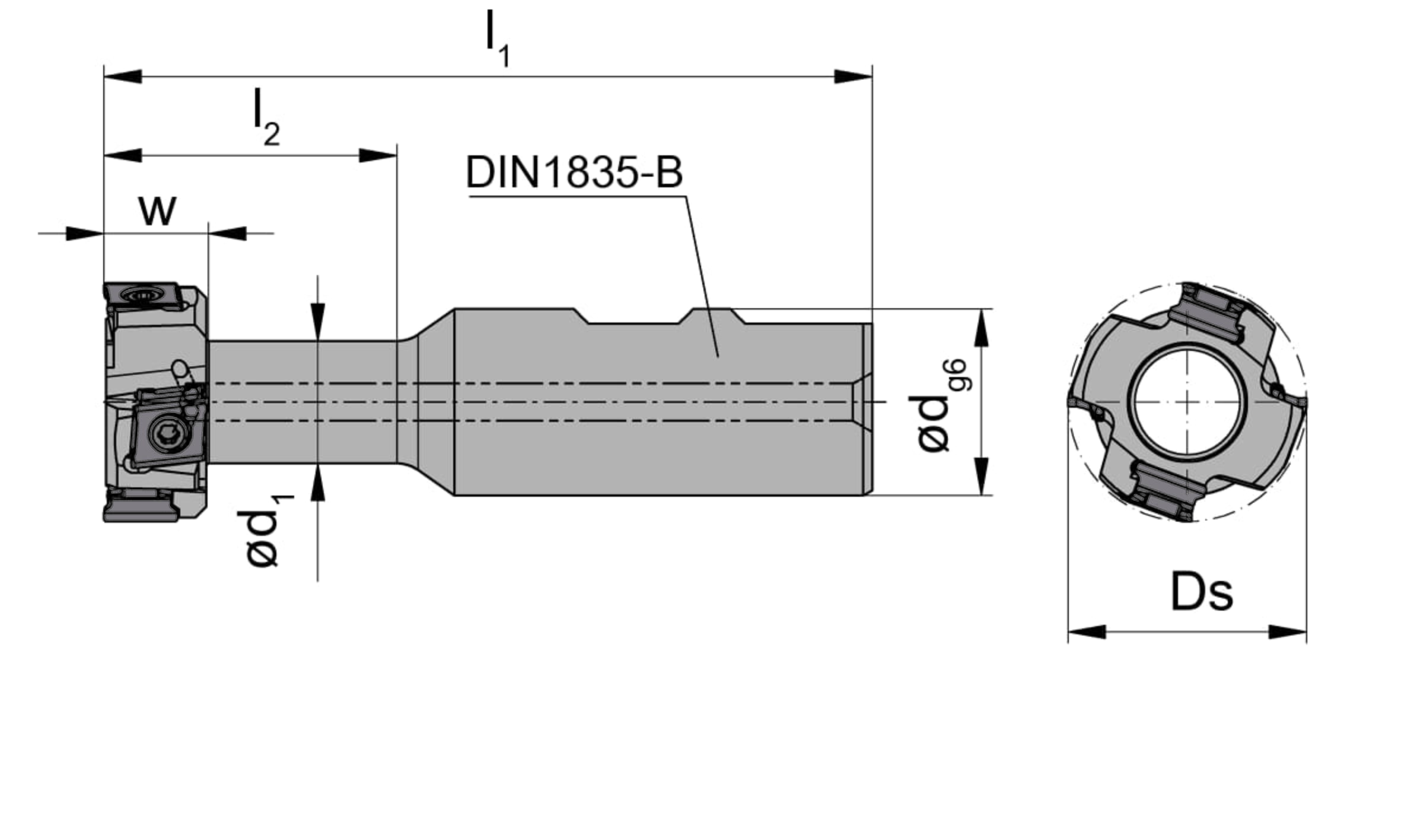

Number of revolutions maximum (nmax)

15600 Min-1

Size of groove (a)

16.9 mm

Maximum milling depth/ depth of groove (w)

14 mm

form

Working length, Neck length, Extension length (l2)

39 mm

Total length insert (l1)

103 mm

Neck diameter (d1)

16.4 mm

Left hand indexable insert (linke WSP)

2x L409.093.U...

Right hand indexable insert (rechte WSP)

2x R409.093.U...

Number of teeth effective (Zeff)

2 St.

DIN_CCTMS

ZYL02501005

Katalog_CCTWS

40900R;40900L

DIN_CCTWS

HORN-409003R;HORN-409003L

ISO_CCTWS

HORN40900$$$3R$$$$$;HORN40900$$$3L$$$$$

Number of teeth (Z)

4 St.

Cutting diameter (Ds)

32 mm

Shank diameter (d)

25 mm
