MDG.20.ST25.90.01.A

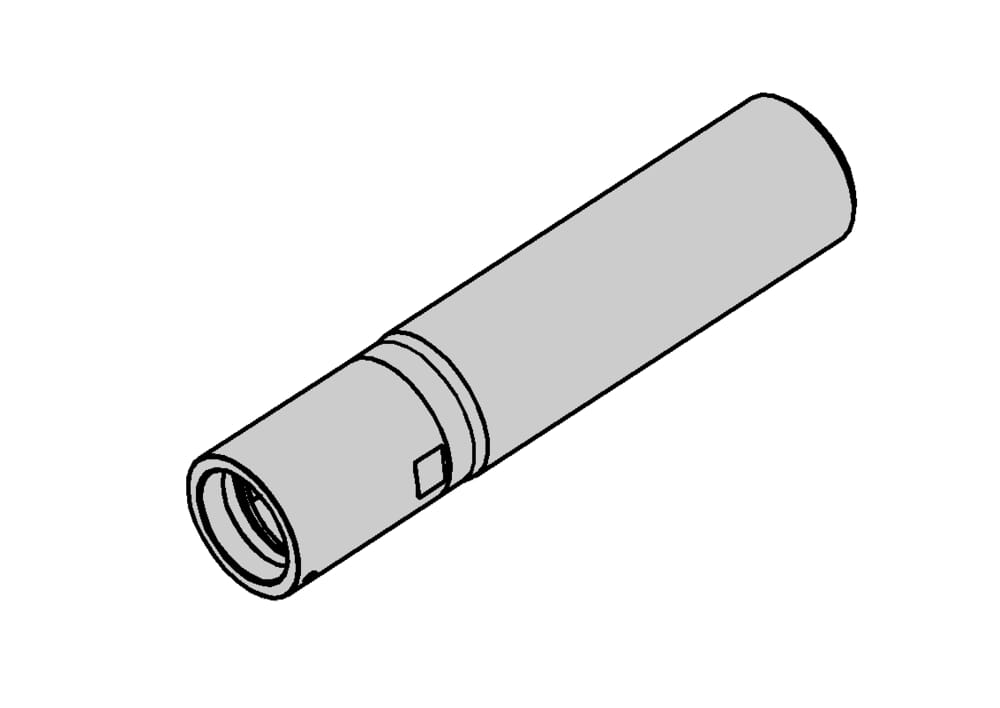

Toolholder
Part number MDG20ST259001A
HORN Toolholder MDG.20.ST25.90.01.A for Milling
Please note:Technical instructions
Katalog_SSC
DG0201
eclass-shortcut
21-02-90-90

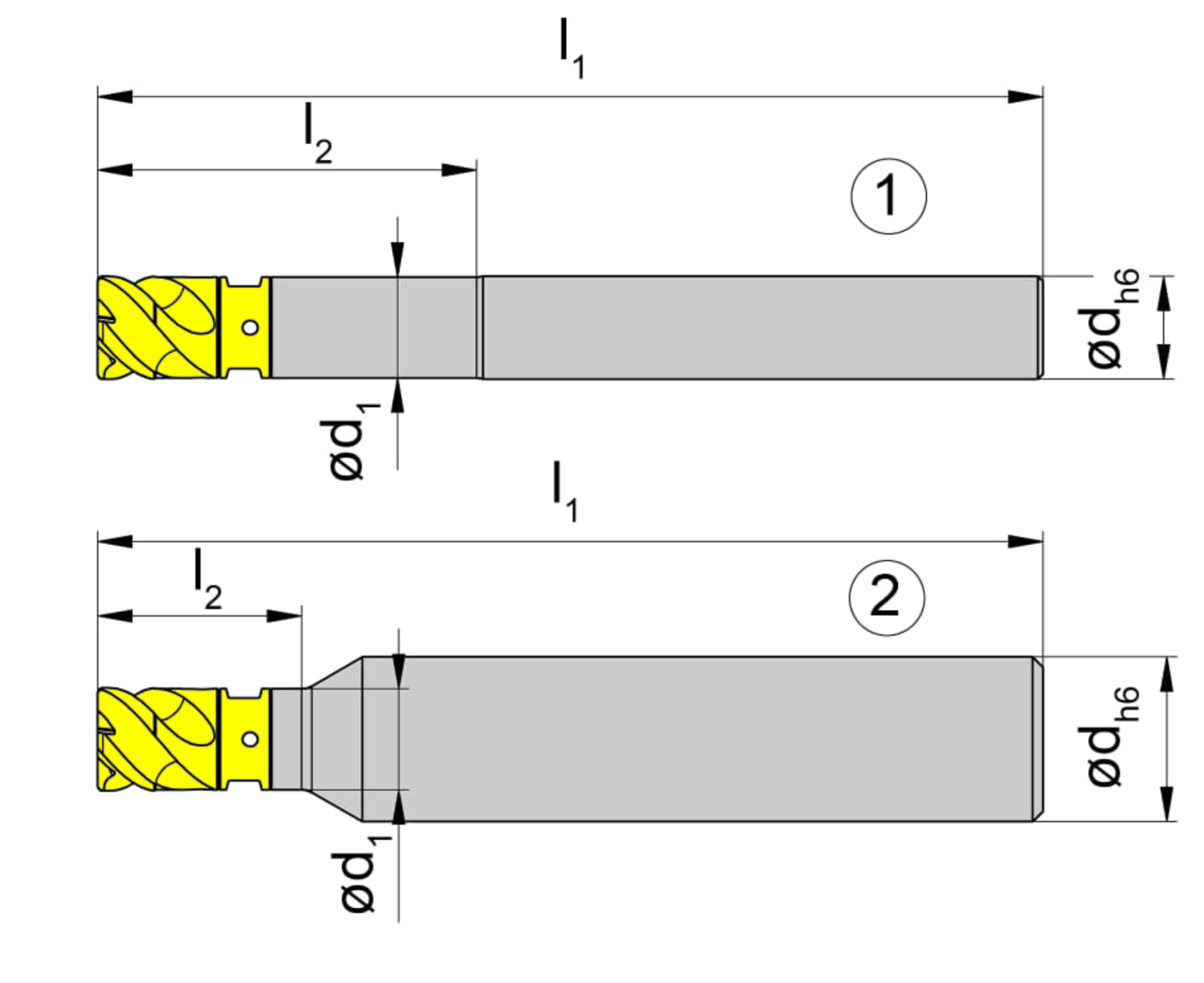

Form (Form)
2
Working length, Neck length, Extension length (l2)
33.3
mm
Total length insert (l1)
110.3
mm
Neck diameter (d1)
19.5
mm
Katalog_CCTMS
DG0201
ISO_CCTMS
ZYL01G2500h$06
DIN_CCTMS
ZYL02500105
DIN_SSC
HORN-DG02010N
ISO_SSC
HORNDG02018$0N$$$$$
system
DG20
Shank diameter (d)
25
mm
| Downloads | |
|---|---|
| MDG20ST259001A.DXF | Download |
| MDG20ST259001A_20230113_222140908.STP | Download |
| Download all files | |
