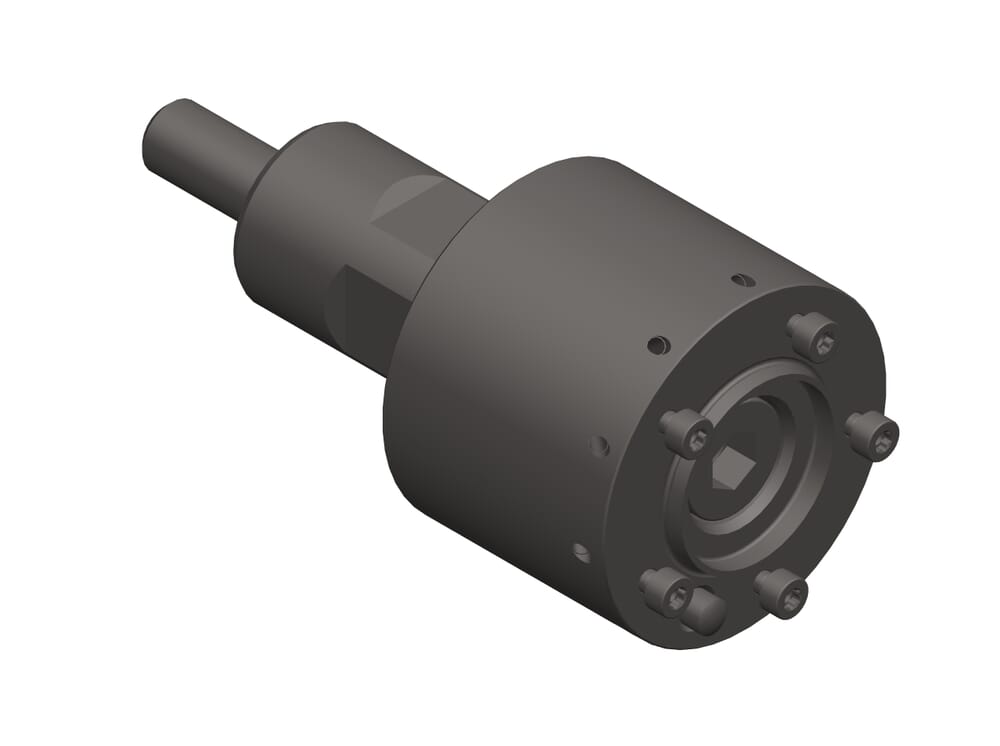

MDR.141.76.60.V.D
Toolholder
Part number MDR1417660VD
HORN Toolholder MDR.141.76.60.V.D for Reaming
Please note:Technical instructions
bore-diameter-rotate-met
76
mm
size
141
cutting-circle-diameter-max-met
140.6
mm
cutting-circle-diameter-min-met
120.601
mm
working-length-with-insert-met
60
mm

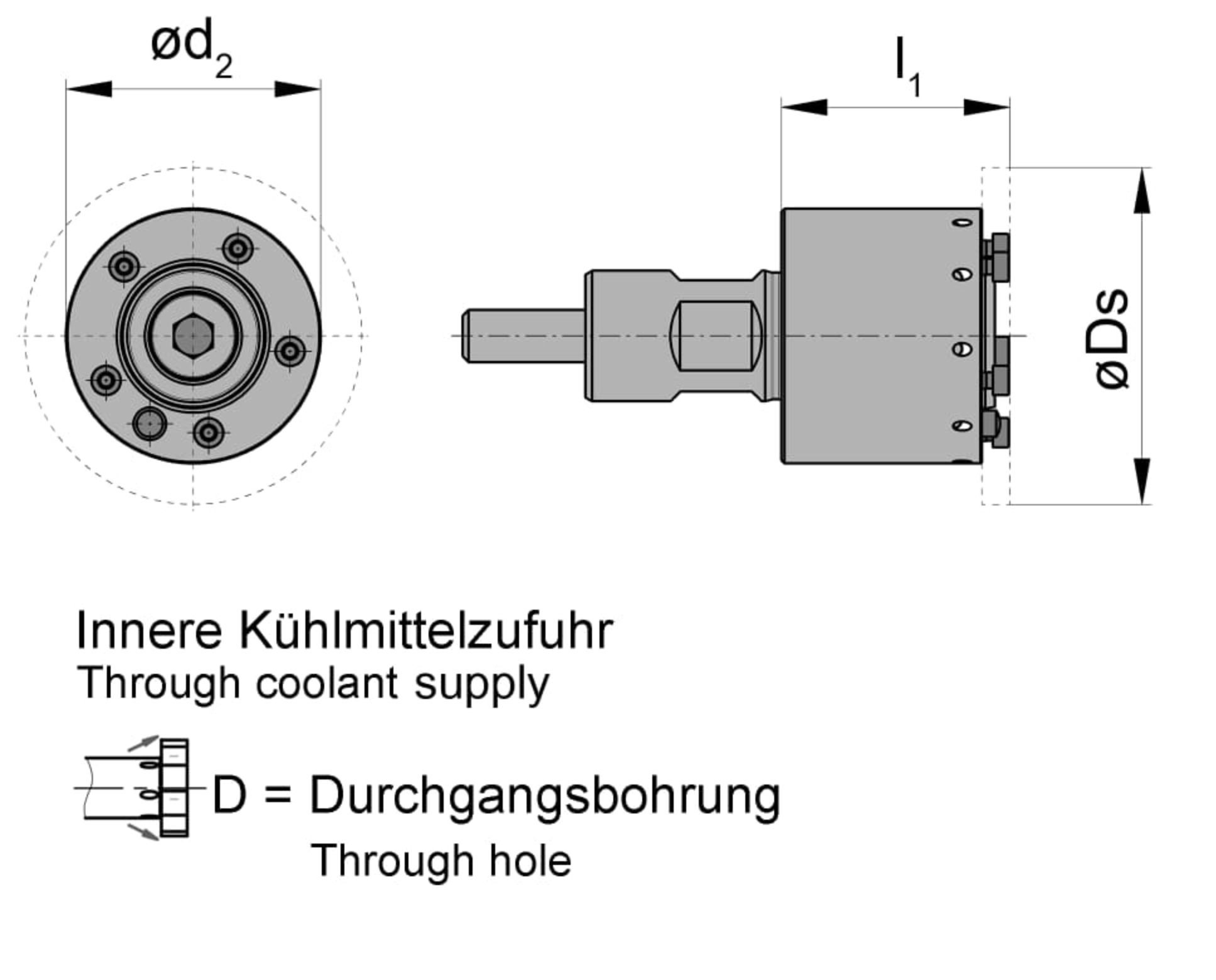

coolant
D
eclass-shortcut
21-18-05-90
| Downloads | |
|---|---|
| MDR1417660VD_20211215_164929149.DXF | Download |
| MDR1417660VD_20210630_152651332.STP | Download |
| Download all files | |
