N849.0012N.60.K1
Part number N8490012N60K1

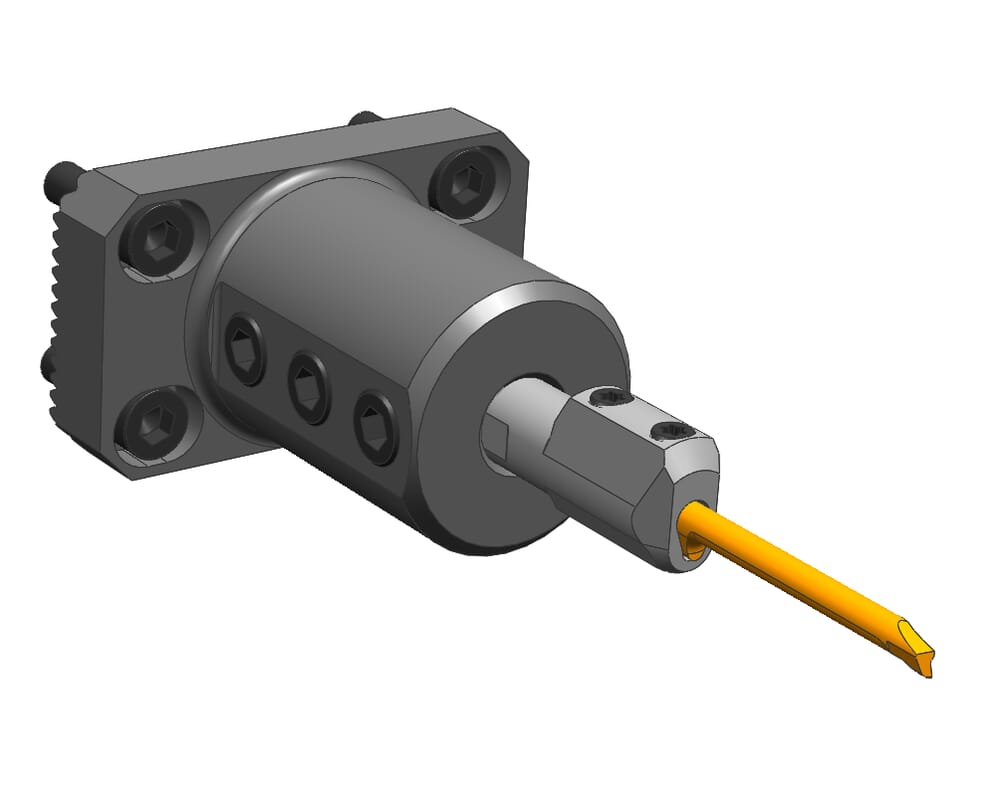

HORN N849.0012N.60.K1 for Turning
Please note:Technical instructions

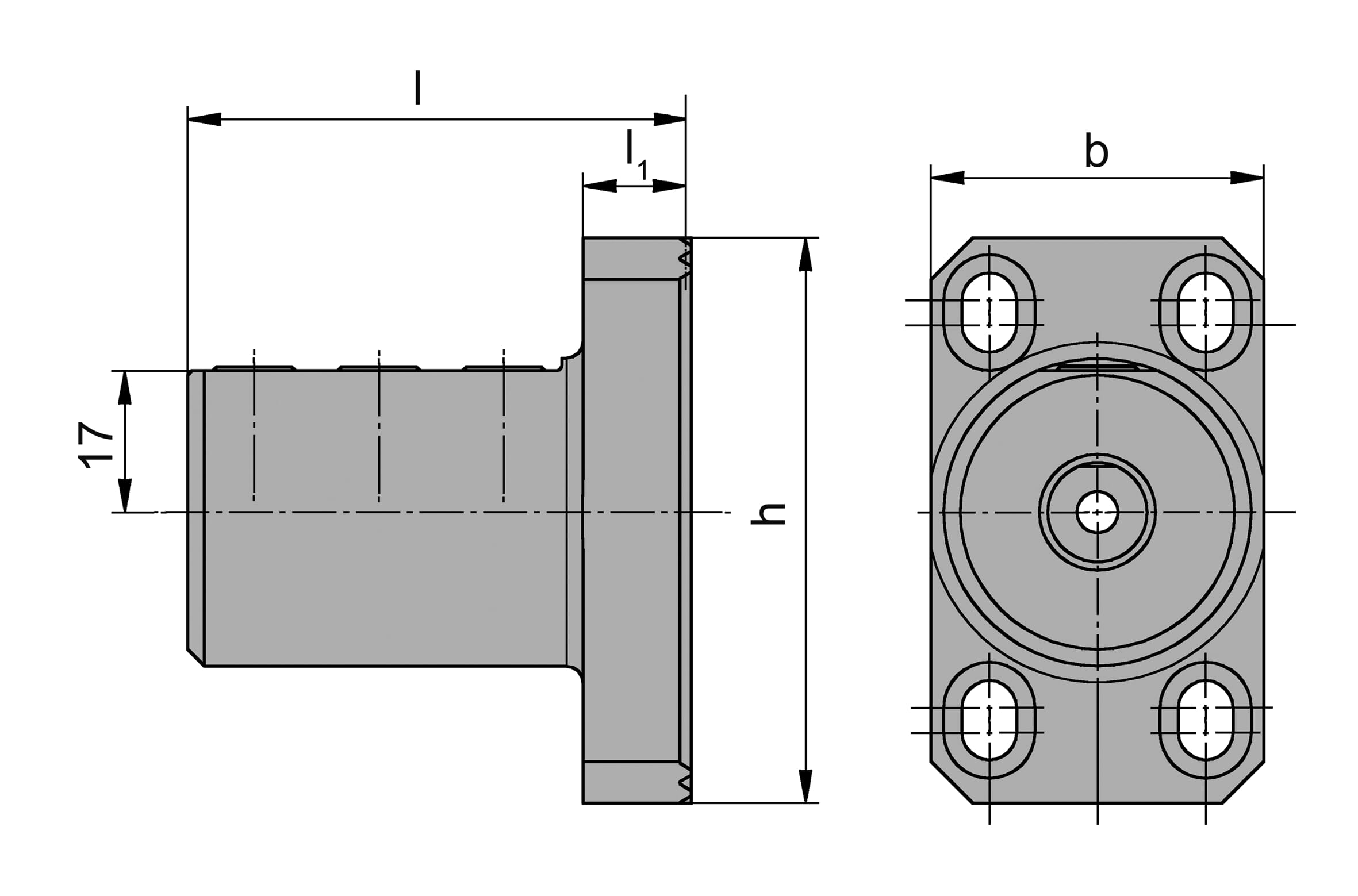

Width (b)
40
mm
Flange thickness (l1)
12.45
mm
Height (h)
68
mm
Toolholder (Klemmhalter)
B105.0012...
ISO_CCTWS
ZYL10G1200h$06;ZYL10G1200h$06;ZYL13G1200h$06
DIN_CCTWS
ZYL01201015;ZYL01201015;ZYL01205315
Katalog_CCTMS
Schütte
Total length (l)
60
mm
eclass-shortcut
21-02-90-90
| Downloads | |
|---|---|
| N8490012N60K1_20210629_094909173.DXF | Download |
| N849_0012N_60_K1_20171121_230500121.STP | Download |
| Download all files | |
