N849.00C3.01
Grundträger
Part number N84900C301

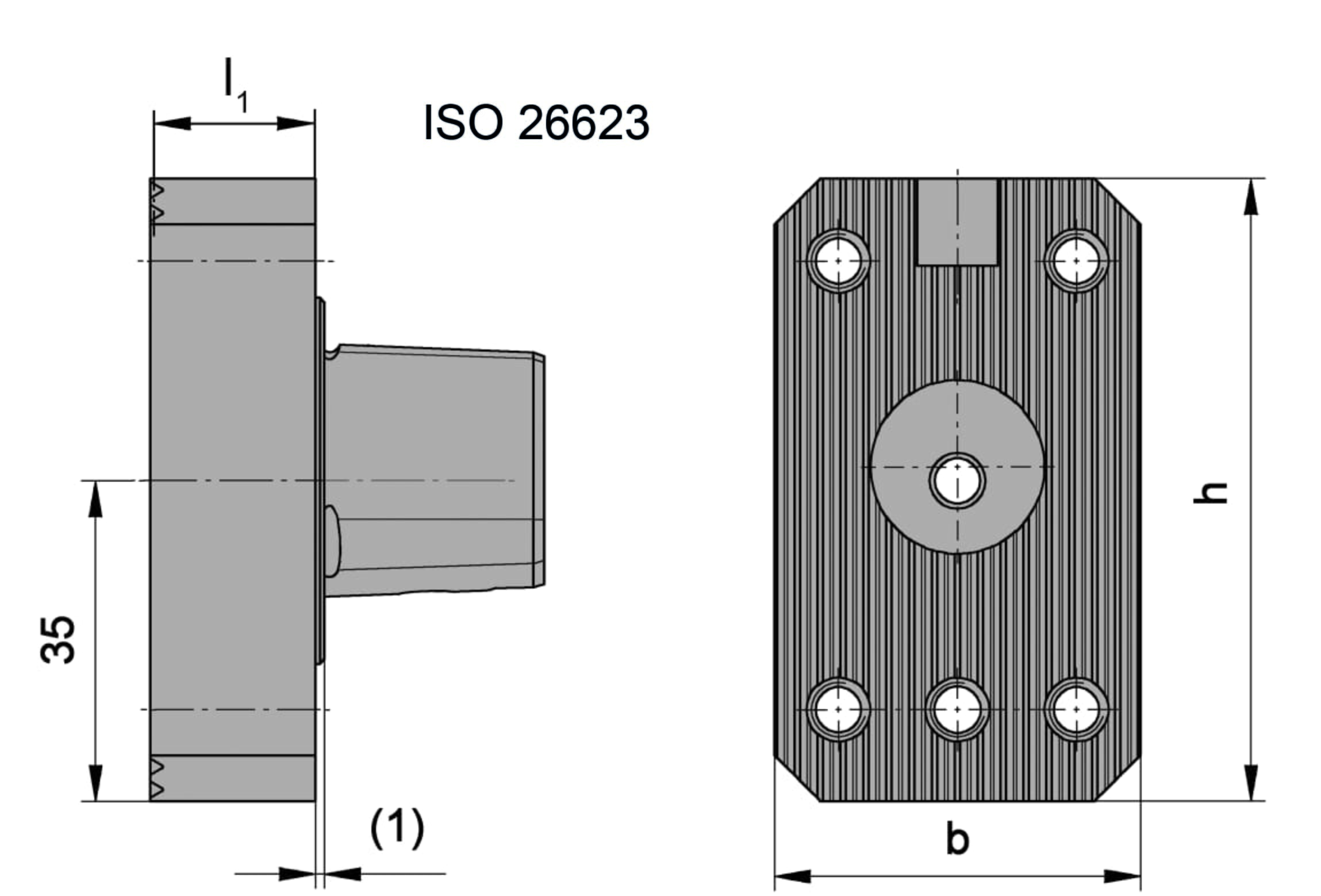

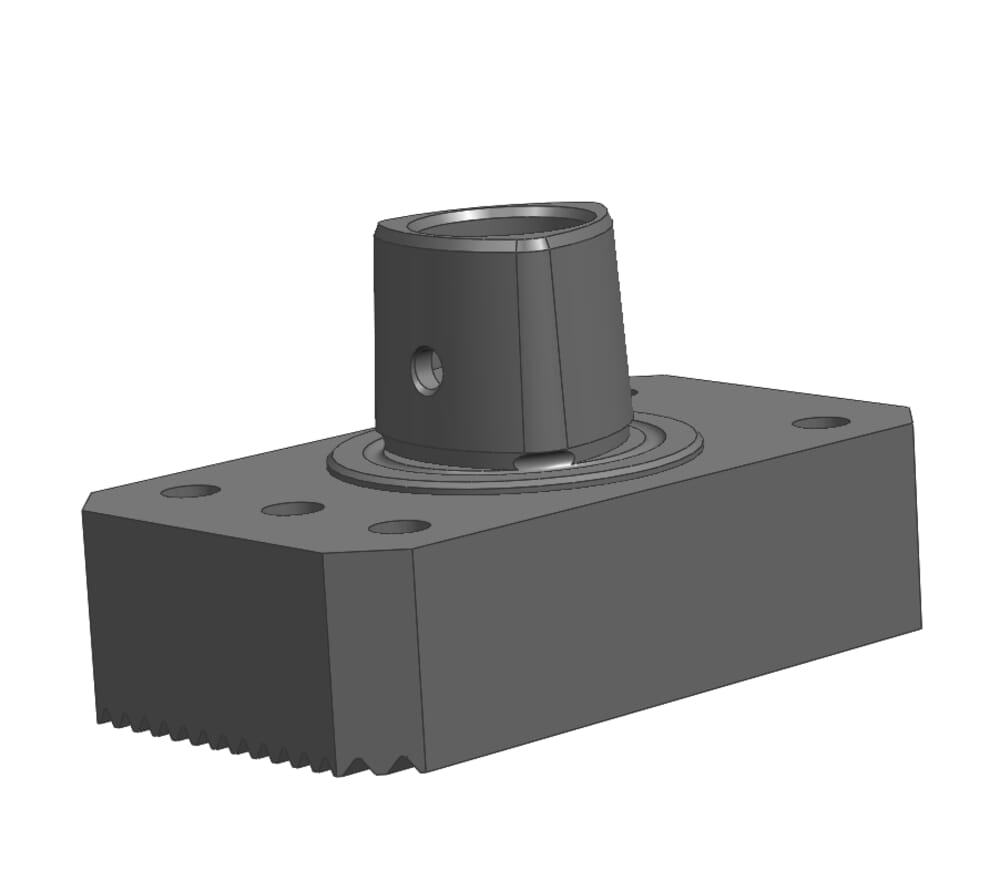

HORN Grundträger N849.00C3.01 for Turning
Please note:Technical instructions
system-cassette-from-the-collar-met
18.5
mm
Width (b)
40
mm
Flange thickness (l1)
18.5
mm
Height (h)
68
mm
Katalog_CCTWS
Schütte
DIN_CCTMS
CCS03200195
ISO_CCTMS
CCS01C0320$$$$
eclass-shortcut
21-02-90-90
| Downloads | |
|---|---|
| N84900C301_20210629_180951429.DXF | Download |
| N849_00C3_01_20171121_215337485.STP | Download |
| Download all files | |
