N849.0117R.12.00
Werkzeugaufnahme
Part number N8490117R1200

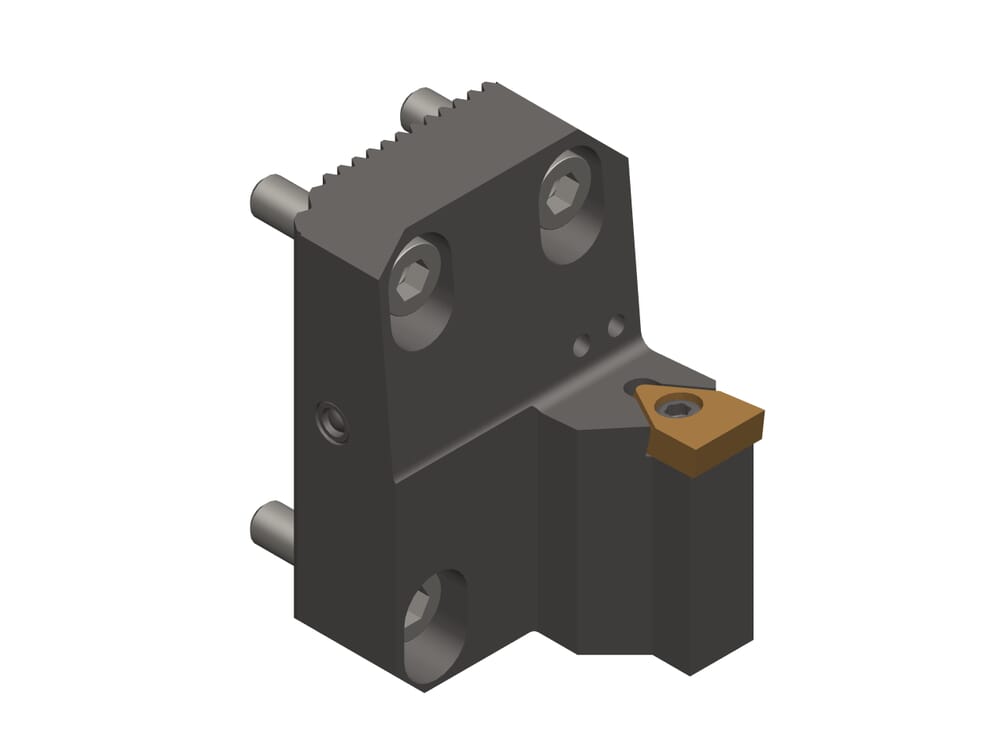

HORN Werkzeugaufnahme N849.0117R.12.00 for Turning
Please note:Technical instructions
Width (b)
43
mm
Adjustment dimension from center (f)
22
mm
Total length with cutting edge (l1)
40
mm
Height (h)
68
mm
ISO_CCTWS
HORN117121050N$$$$$
DIN_CCTWS
HORN-117121050N
Katalog_CCTWS
1171205
Katalog_CCTMS
Schütte
eclass-shortcut
21-02-90-90
| Downloads | |
|---|---|
| N8490117R1200_20210629_174044173.DXF | Download |
| N849_0117R_12_00_20171121_214842190.STP | Download |
| Download all files | |
