N849.0117R.26.00
Werkzeugaufnahme
Part number N8490117R2600

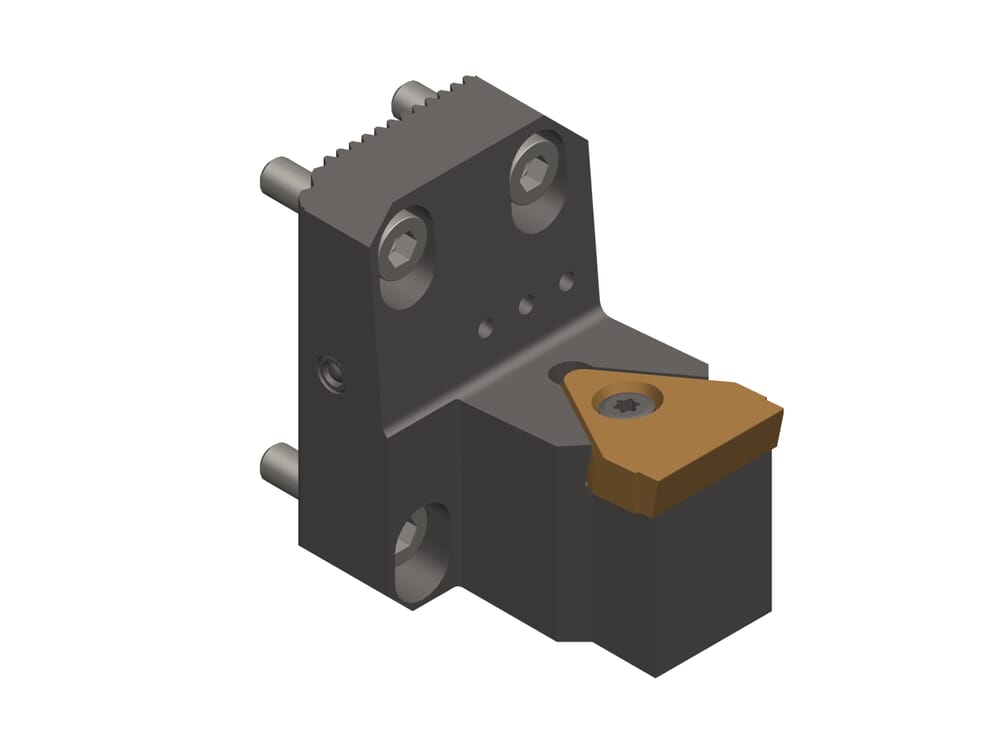

HORN Werkzeugaufnahme N849.0117R.26.00 for Turning
Please note:Technical instructions
Width (b)
43
mm
Adjustment dimension from center (f)
22
mm
Total length with cutting edge (l1)
55
mm
Height (h)
68
mm
ISO_CCTWS
HORN117261050N$$$$$
DIN_CCTWS
HORN-117261050N
Katalog_CCTWS
1172605
Katalog_CCTMS
Schütte
eclass-shortcut
21-02-90-90
| Downloads | |
|---|---|
| N8490117R2600_20210629_174001282.DXF | Download |
| N849_0117R_26_00_20171121_215757654.STP | Download |
| Download all files | |
