N849.0117R.32.00
Toolholder
Part number N8490117R3200

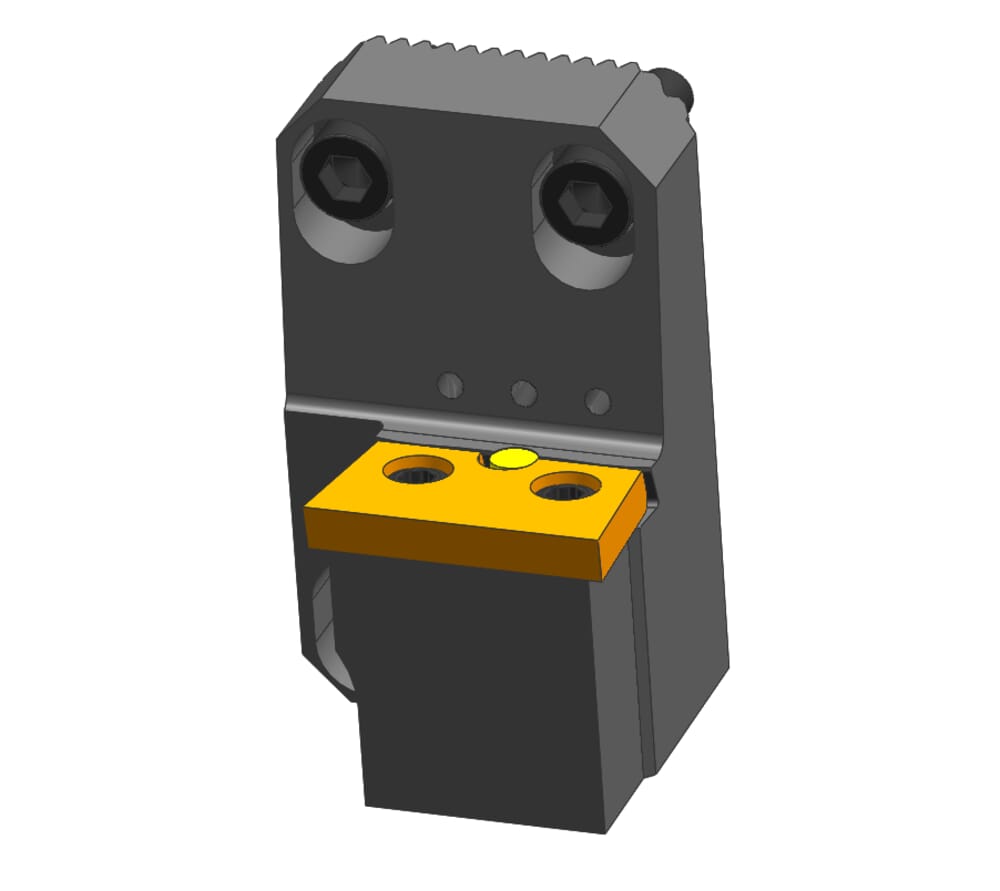

HORN Toolholder N849.0117R.32.00 for Turning
Please note:Technical instructions
Width (b)
41
mm
Adjustment dimension from center (f)
22
mm
Total length with cutting edge (l1)
40
mm
Height (h)
68
mm
ISO_CCTWS
HORN117321050N$$$$$
DIN_CCTWS
HORN-117321050N
Katalog_CCTWS
1173205
Katalog_CCTMS
Schütte
eclass-shortcut
21-02-90-90
| Downloads | |
|---|---|
| N8490117R3200_20210629_174300082.DXF | Download |
| N849_0117R_32_00_20171121_184307094.STP | Download |
| Download all files | |
