base support

INNEN_BOHRUNG_KONTUR_AUSDREHEN.EPS

ABSTECHEN_20210506_153854505.EPS

IK_GENERELL.EPS

AUSSEN_LAENGSDREHEN.EPS

AUSSEN_EINSTECHEN.EPS

AXIALSTECHEN.EPS

Part number N85000C401

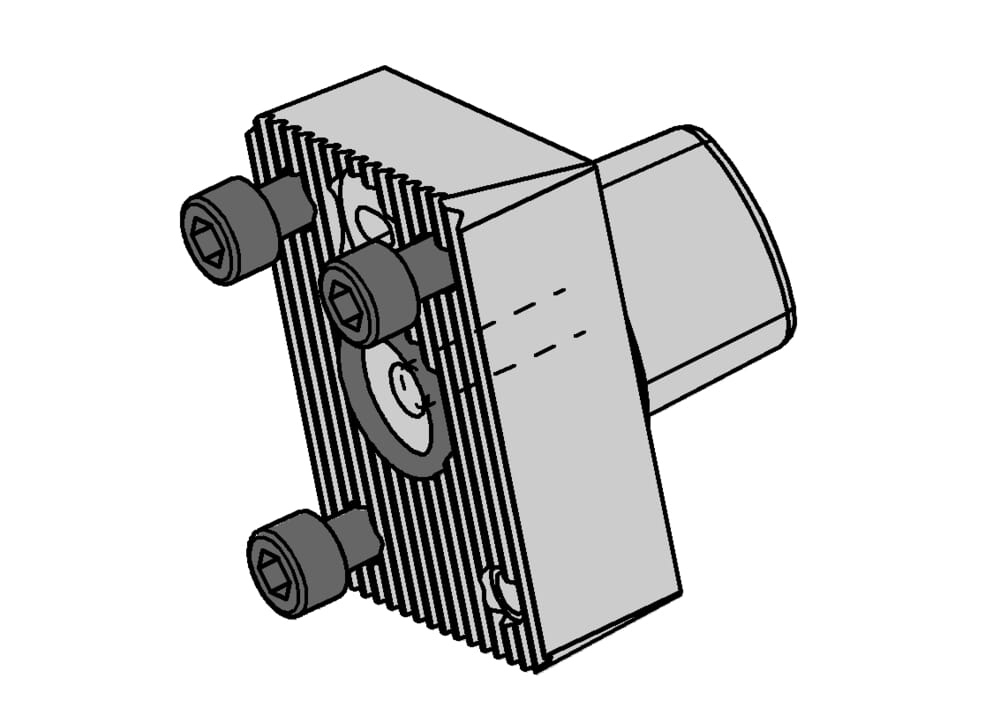

HORN base support N850.00C4.01 for Turning

Please note:Technical instructions

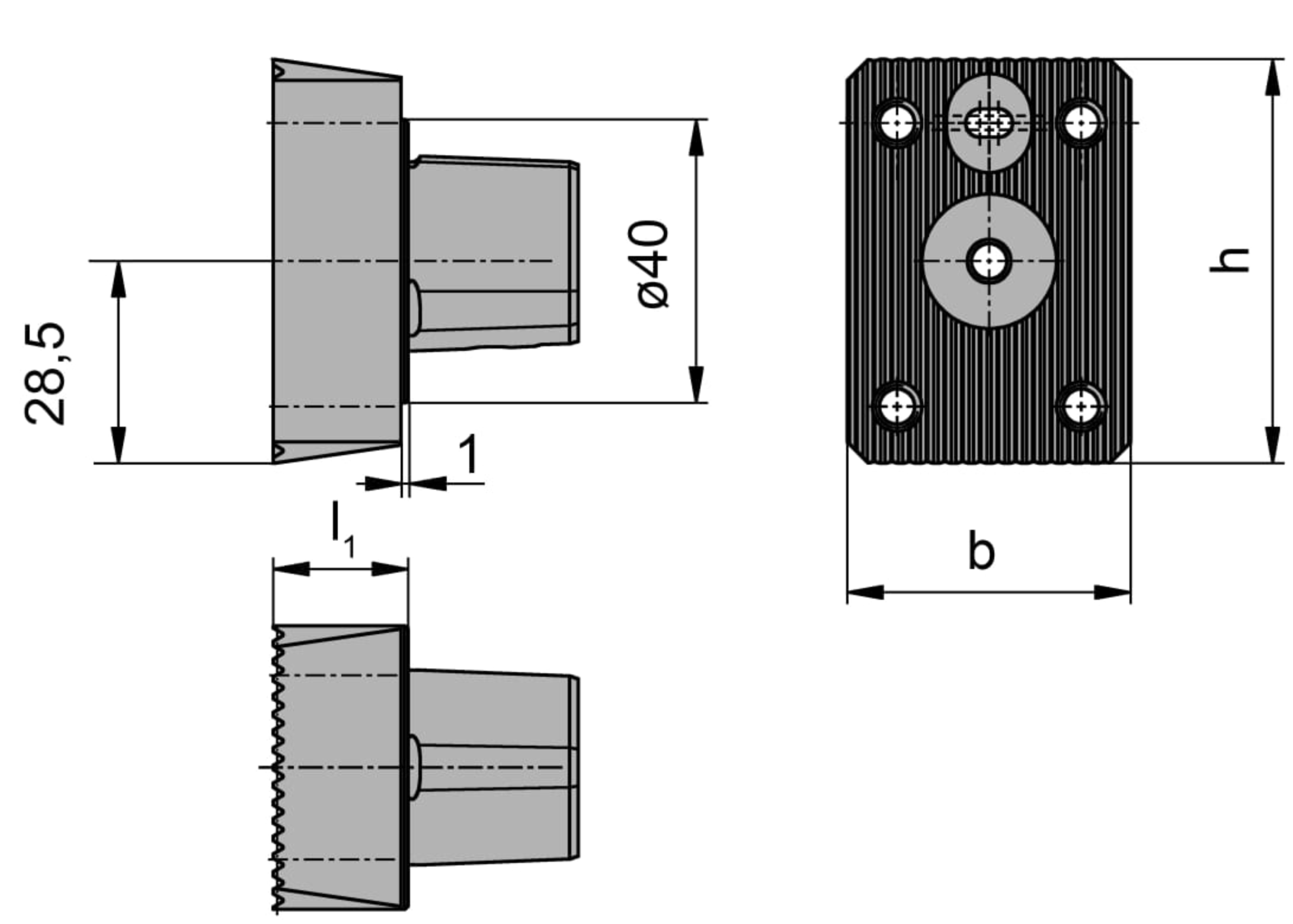

Width (b)

40 mm

Flange thickness (l1)

18.5 mm

Height (h)

57 mm

Katalog_CCTWS

Schütte

DIN_CCTMS

CCS04000185;CCS04000185

ISO_CCTMS

CCS01C0400$$$$;CCS01C0400$$$$
