NH105.MD06.3.01
Toolholder
Part number NH105MD06301

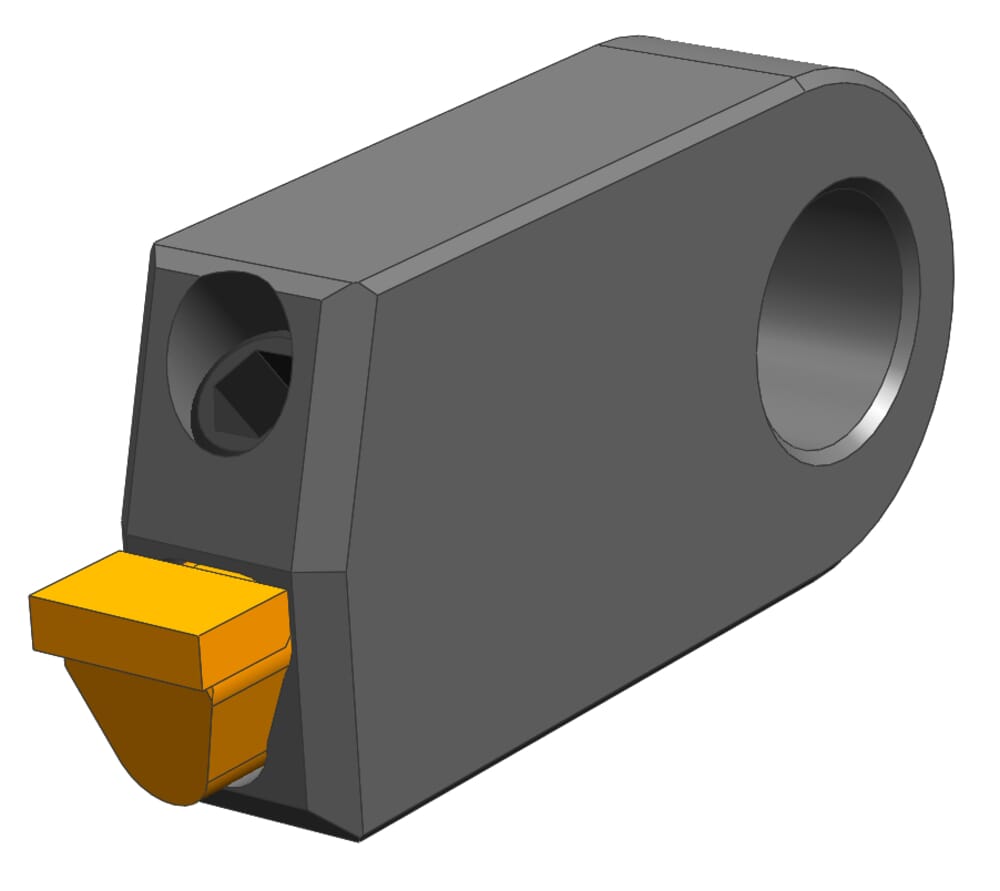

HORN Toolholder NH105.MD06.3.01 for Turning
Please note:Technical instructions

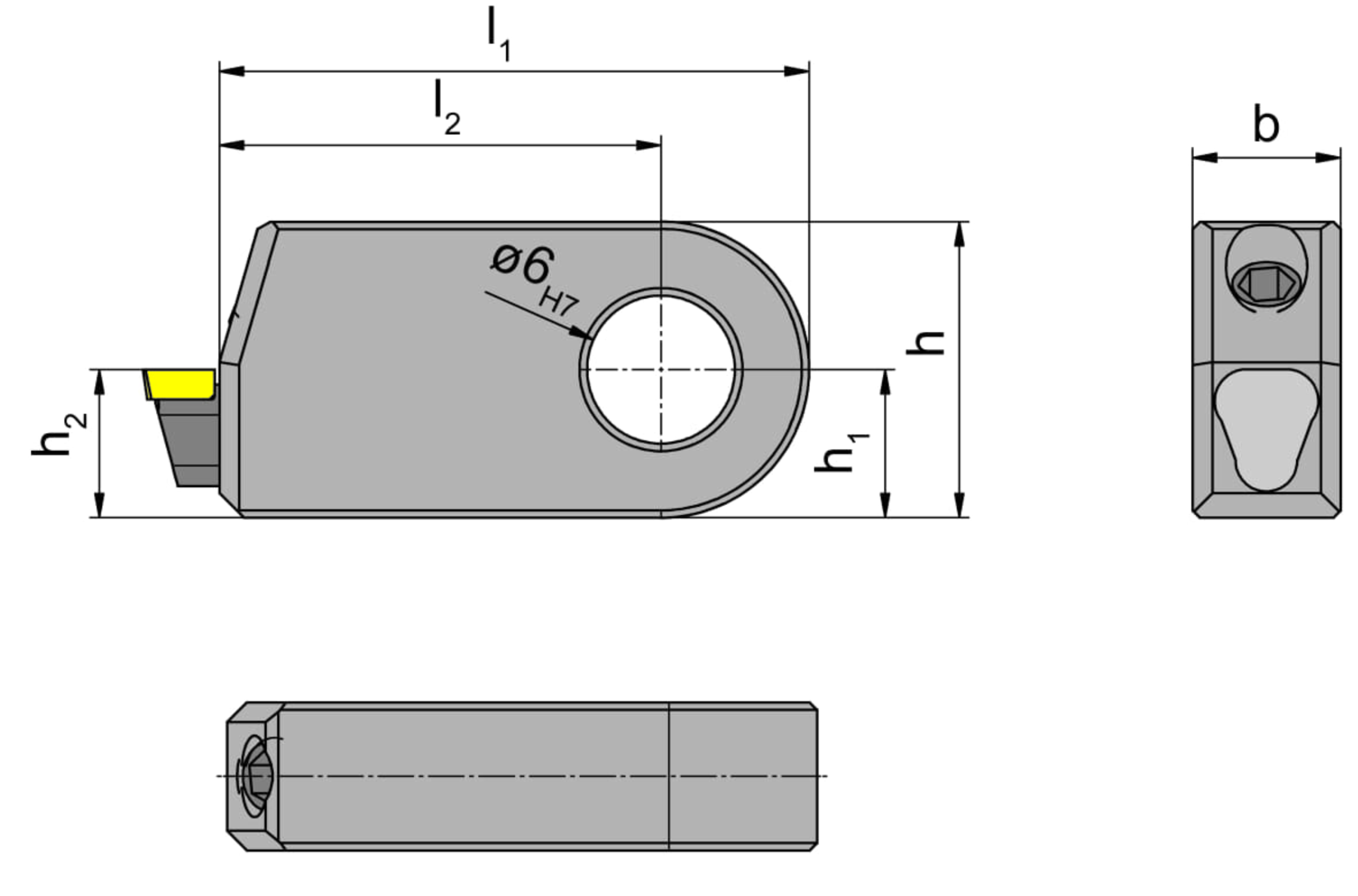

Length (l2)
17.9
mm
Total length (without cutting insert) (l1)
23.9
mm
Height (h)
12
mm
Cassette thickness (b)
6
mm
Peak height (h2)
6
mm
Distance system cassette to mounting hole (h1)
6
ISO_CCTWS
HORN105MD02$0N$$$$$
DIN_CCTWS
HORN-105MD020N
Katalog_CCTWS
105MD02
eclass-shortcut
21-18-10-06
| Downloads | |
|---|---|
| NH105MD06301_20210629_180510658.DXF | Download |
| NH105MD06301_20240116_232909870.STP | Download |
| Download all files | |
