R105.0100.5.5.H0.C HD03
Insert
Part number R105010055H0CHD03

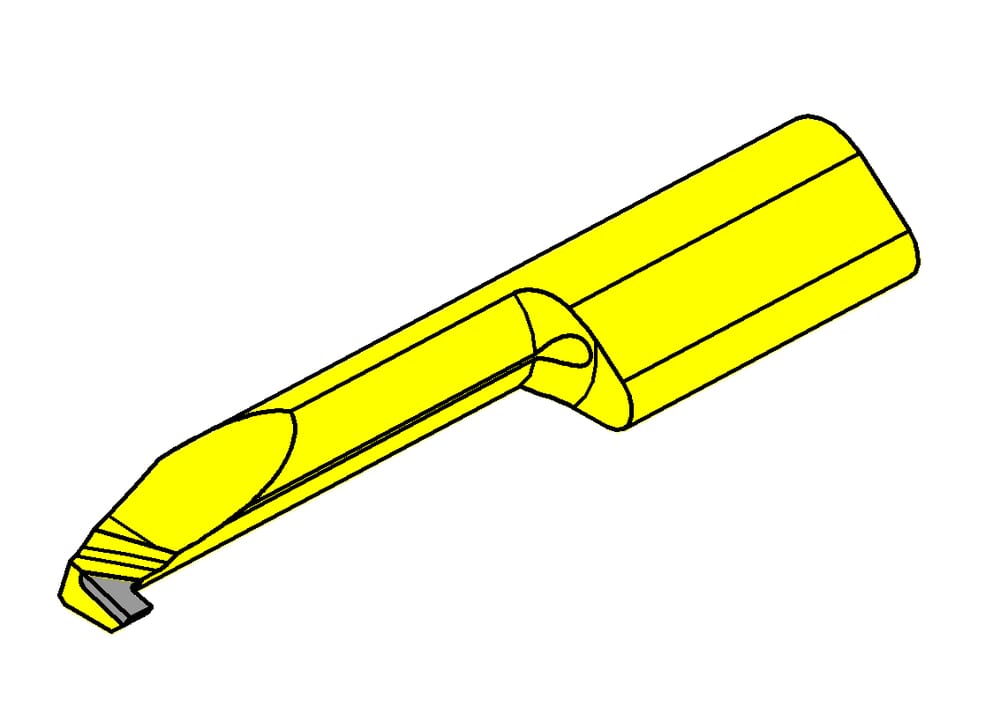

HORN Insert R105.0100.5.5.H0.C HD03 for Turning
Please note:Technical instructions

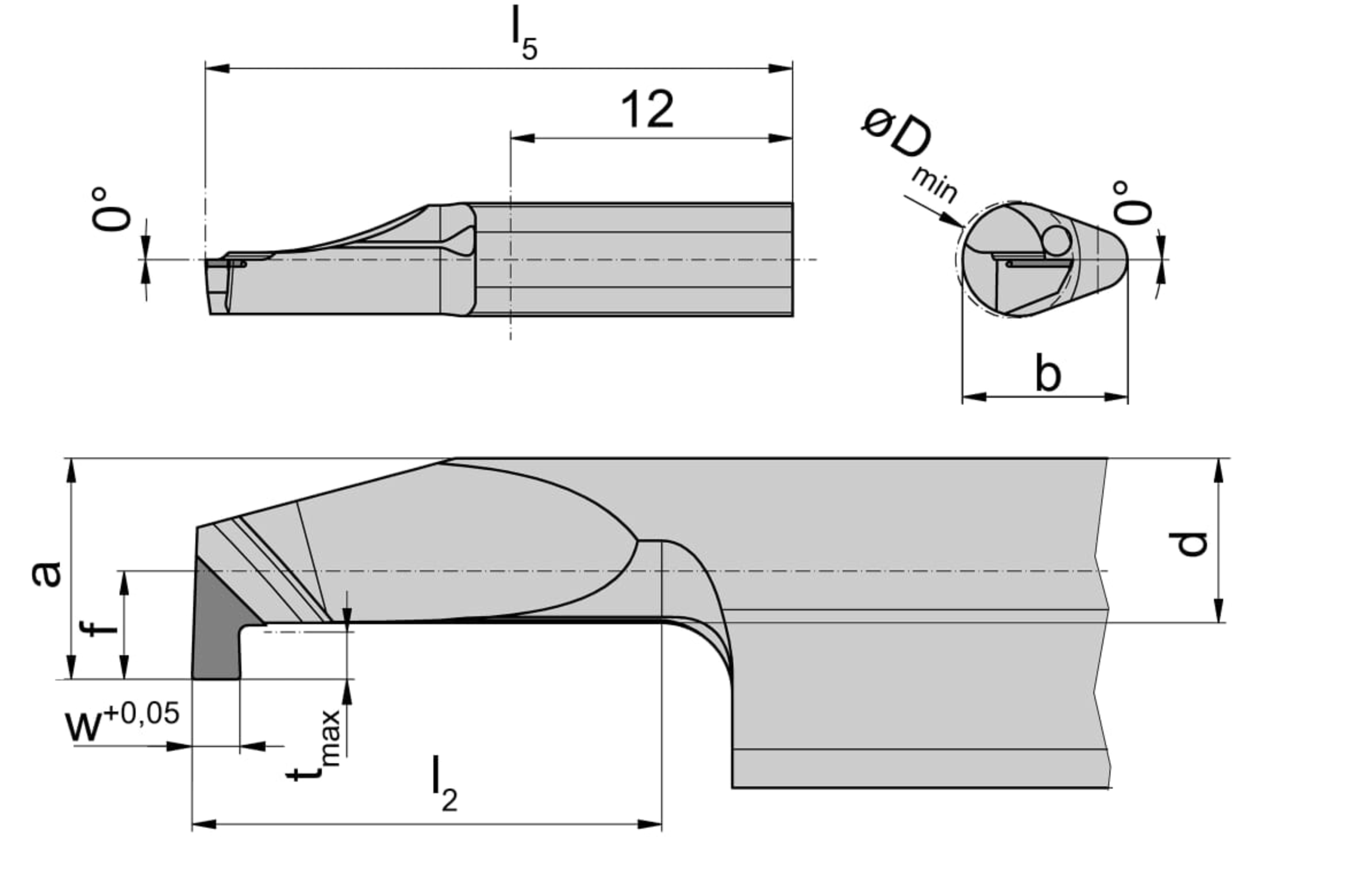

Width of blank (b)
7
mm
Smallest bore diameter (Dmin)
5
mm
Total length (l5)
45
mm
Setting range radial (f)
2.3
mm
Neck diameter (d)
3.5
mm
Width of groove (w)
1
mm
Katalog_SSC
105125
DIN_SSC
HORN-10512595N
ISO_SSC
HORN105125$95N$$$$$
eclass-shortcut
21-18-20-11
Maximum depth of groove (tmax)
1
mm
Head size (a)
4.7
mm
Neck length (l2)
30
mm
