R218.1616.03.IK

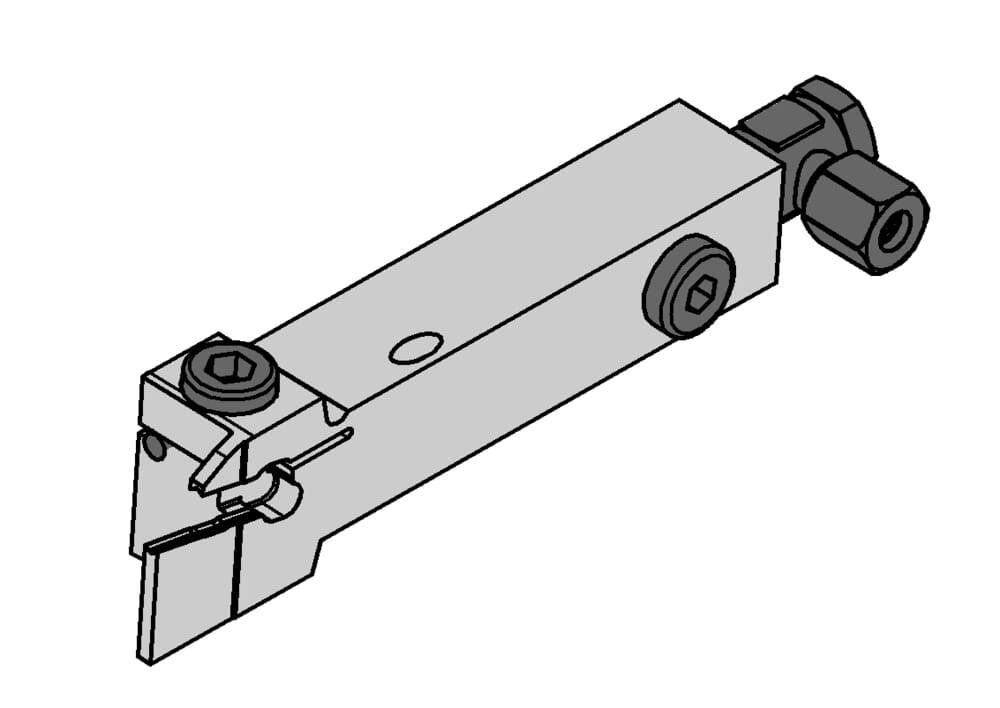

Toolholder
Part number R218161603IK
HORN Toolholder R218.1616.03.IK for Turning
Please note:Technical instructions
Clamping range maximum (Spannbereich)
4
mm
eclass-shortcut
21-18-10-04
Plating seat size (Größe)
3
ISO_CCTMS
VKT01A1616$$$$
DIN_CCTMS
VKT16160115
Katalog_CCTWS
229030
DIN_CCTWS
HORN-229030108N
ISO_CCTWS
HORN229030108N$$$$$

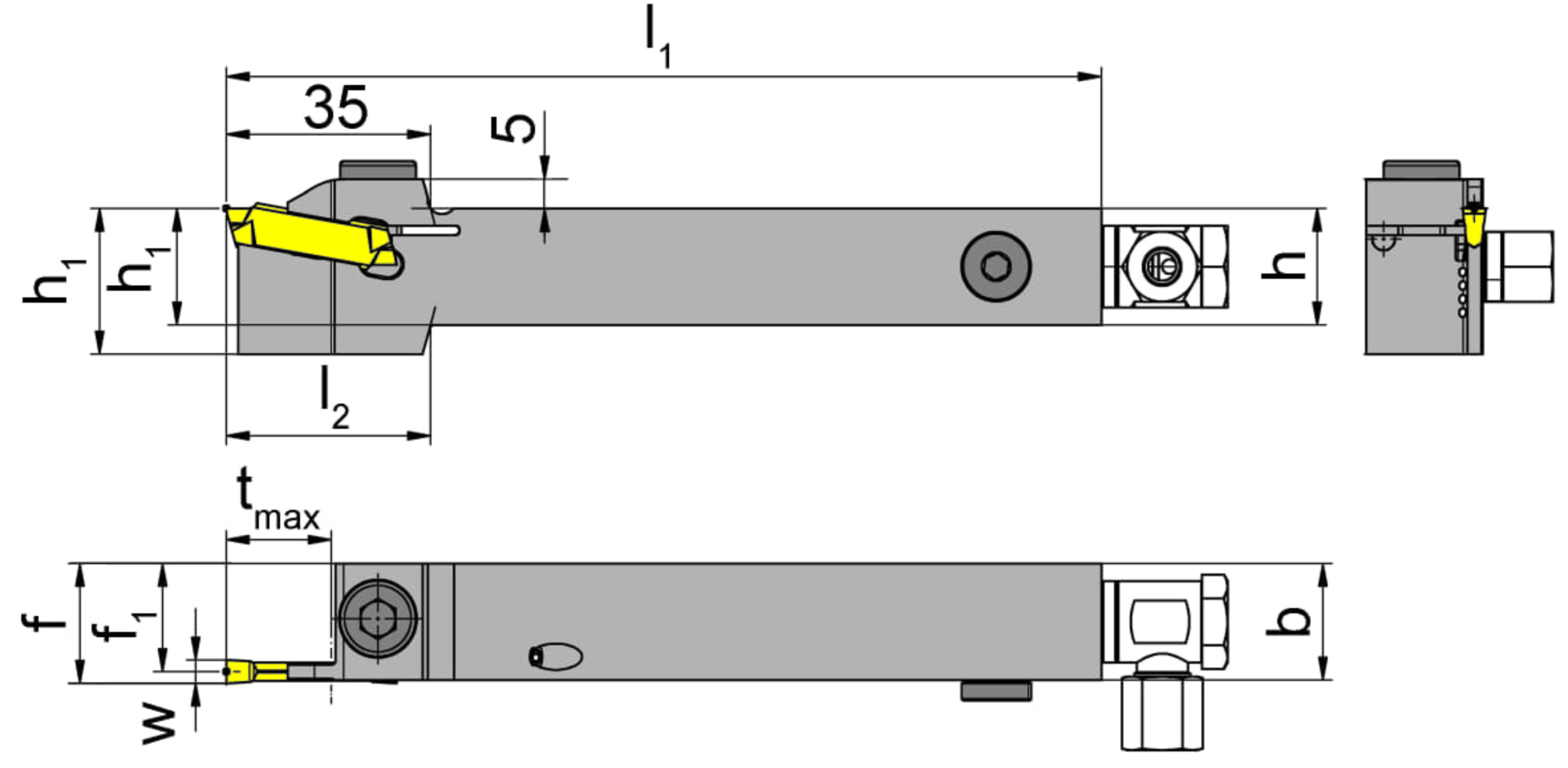

Head length (including cutting edge) (l2)
45
mm
Adjustment dimension (formula) (f)
f1+w/2
Clamping range minimum (Spannbereich)
3
mm
Peak height (h1)
25
mm
Maximum insertion depth (tmax)
18
mm
Shank height (h)
16
mm
Total length (including cutting insert) (l1)
150
mm
Adjustment dimension cutting center (f1)
14.55
mm
Shank width (b)
16
mm
