R220.00C4.K1.IK

Toolholder

Part number R22000C4K1IK

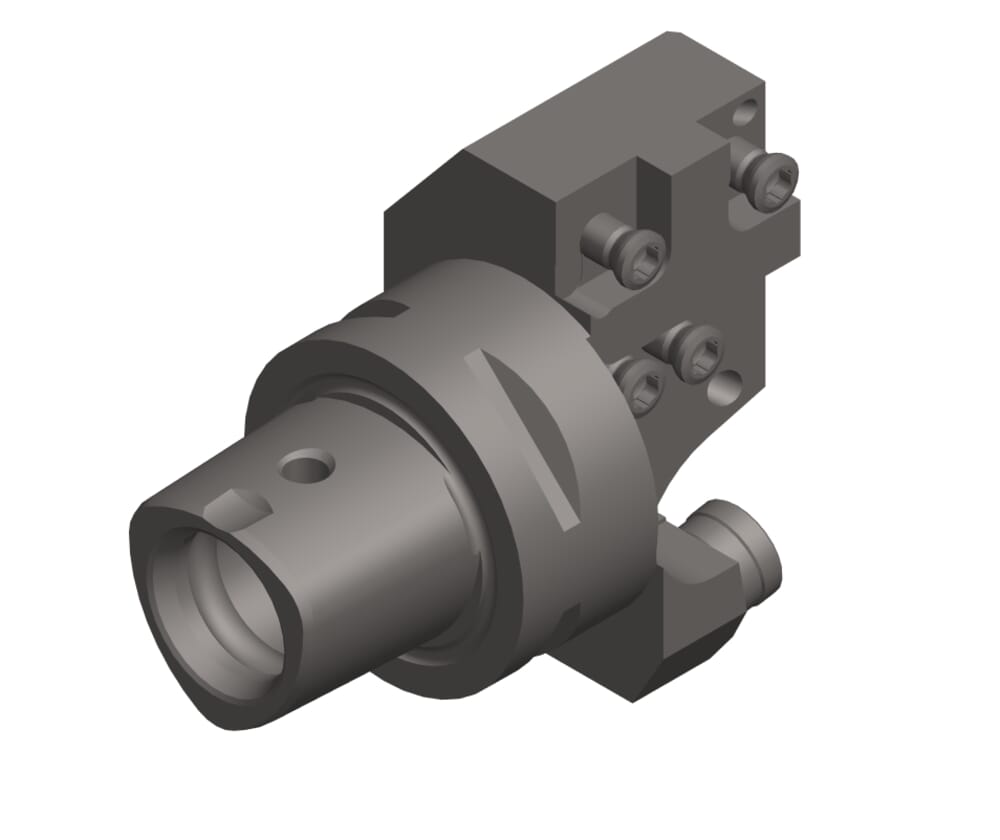

HORN Toolholder R220.00C4.K1.IK for Turning

Adjustment dimension (formula) (f)

f1+f3

eclass-shortcut

21-18-10-18

ISO_CCTMS

CCS01C0400$$$$;CCS01C0400$$$$

DIN_CCTMS

CCS04000195;CCS04000195

Katalog_CCTWS

220001

DIN_CCTWS

HORN-22000193;HORN-22000193;HORN-22000183;HORN-22000183

ISO_CCTWS

HORN22000193$$;HORN22000193$$;HORN22000183$$;HORN22000183$$

Length assembly formula (l)

l1+lK

Length from bore (l2)

50 mm

Adjustment dimension (f1)

4.6 mm

Bore diameter rotate (d1)

40 mm

System cassette from the collar (l1)

40 mm

Distance from center (h1)

12.5 mm
