R220.2525.2.K1.IK
base support
Part number R22025252K1IK

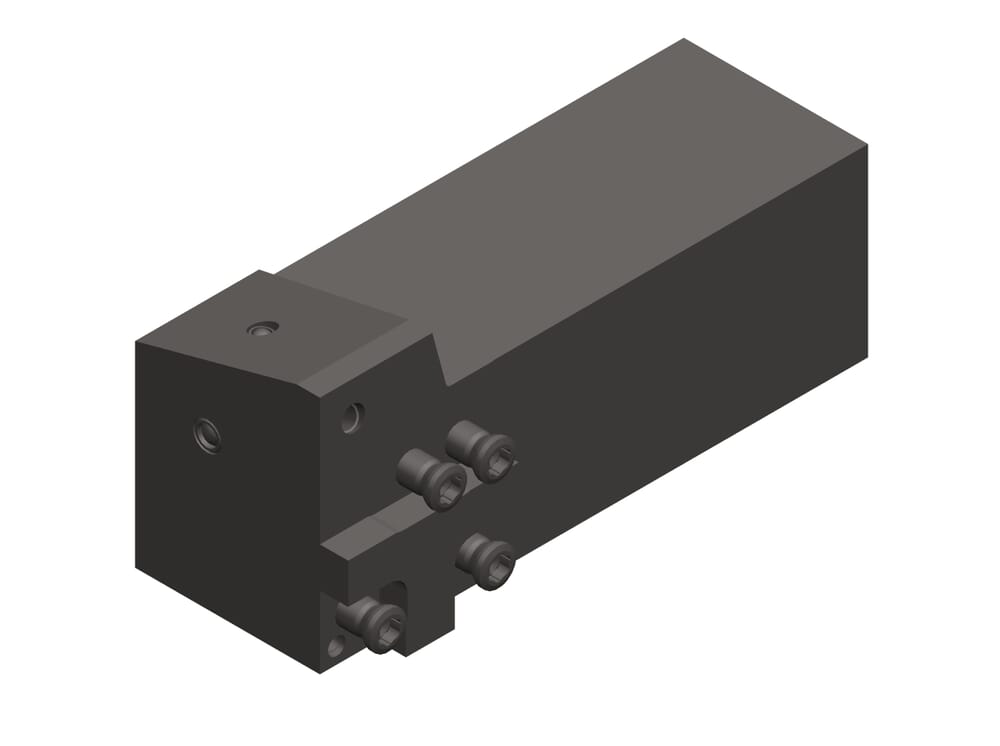

HORN base support R220.2525.2.K1.IK for Turning
Please note:Technical instructions
Length overall formula (l)
l1+lK
eclass-shortcut
21-18-10-18
ISO_CCTMS
VKT01A2525$$$$
DIN_CCTMS
VKT25250115
Katalog_CCTWS
220001
DIN_CCTWS
HORN-22000193;HORN-22000183
ISO_CCTWS
HORN22000193$$;HORN22000183$$
dim-locating-face-to-cassette-formula
l2-10
Length assembly formula (B)
b2+b3
Adjustment dimension (formula) (b1)
b2+f3
Peak height (h1)
32
mm
Head length stop (b)
25
mm
Shank height (h)
25
mm
Shank width (b2)
32
mm
Shank length (l2)
96
mm
| Downloads | |
|---|---|
| R22025252K1IK_20210628_205351385.DXF | Download |
| R22025252K1IK_20210630_174654783.STP | Download |
| Download all files | |
