R226.2020.0.04.IK
Toolholder
Part number R2262020004IK

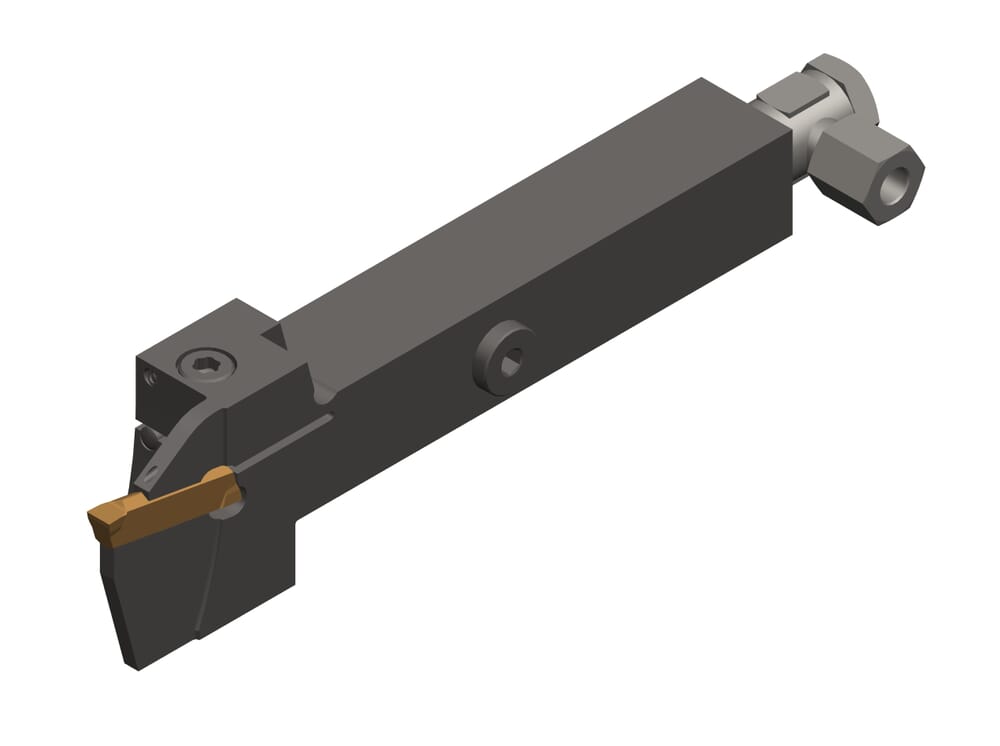

HORN Toolholder R226.2020.0.04.IK for Turning
Please note:Technical instructions
Head length (including cutting edge) (l2)
41
mm
eclass-shortcut
21-18-10-04
Plating seat size (Größe)
4
ISO_CCTMS
VKT01A2020$$$$
DIN_CCTMS
VKT20200115
Katalog_CCTWS
229040
DIN_CCTWS
HORN-229040108N
ISO_CCTWS
HORN229040108N$$$$$
Head length top (including cutting edge) (l3)
50.5
mm
Adjustment dimension (formula) (f)
f1+w/2
Peak height (h1)
32
mm
Maximum insertion depth (tmax)
25
mm
Shank height (h)
20
mm
Total length (including cutting insert) (l1)
150
mm
Adjustment dimension cutting center (f1)
17.7
mm
Shank width (b)
20
mm
