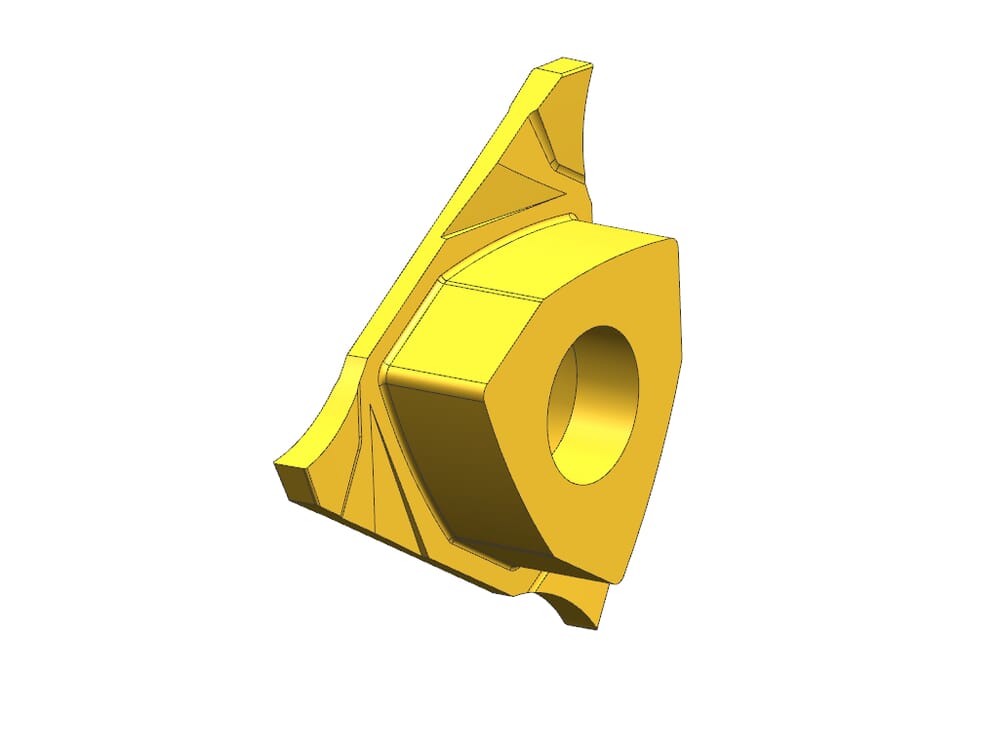

R314.0130.00 AS45
insert
Part number R314013000AS45
HORN insert R314.0130.00 AS45 for Milling
Please note:Technical instructions
eclass-shortcut
21-18-20-01
ISO_SSC
HORN314027101R$$$$$
DIN_SSC
HORN-314027101R
Katalog_SSC
314027R
Width of groove (w)
1.41
mm
Nominal range (Nw)
1.3
mm
Plate thickness without cutting edge (s)
5.4
mm
Corner radius (r)
0.1
mm
| Downloads | |
|---|---|
| R314013000_20210625_183513348.DXF | Download |
| R314013000_20240117_000416466.STP | Download |
| Download all files | |
