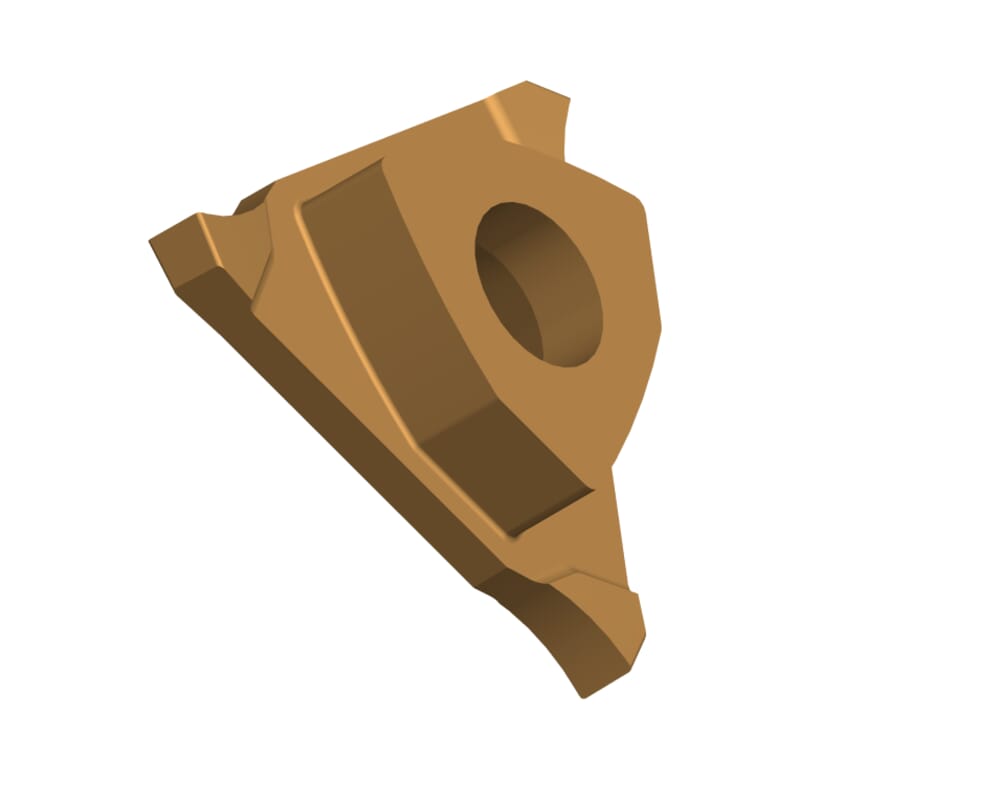

R314.0215.40 TI25
Inserts
Part number R314021540TI25
HORN Inserts R314.0215.40 TI25 for Milling
Please note:Technical instructions
eclass-shortcut
21-18-20-01
ISO_SSC
HORN314027101R$$$$$
DIN_SSC
HORN-314027101R
Katalog_SSC
314027R
Width of groove (w)
2.26
mm
Nominal range (Nw)
2.15
mm
Plate thickness without cutting edge (s)
5.4
mm
Corner radius (r)
0.15
mm
| Downloads | |
|---|---|
| R314021540_20211124_135938032.DXF | Download |
| R314021540_20240117_000506967.STP | Download |
| Download all files | |
