R314.0315.00 TI25
Insert
Part number R314031500TI25

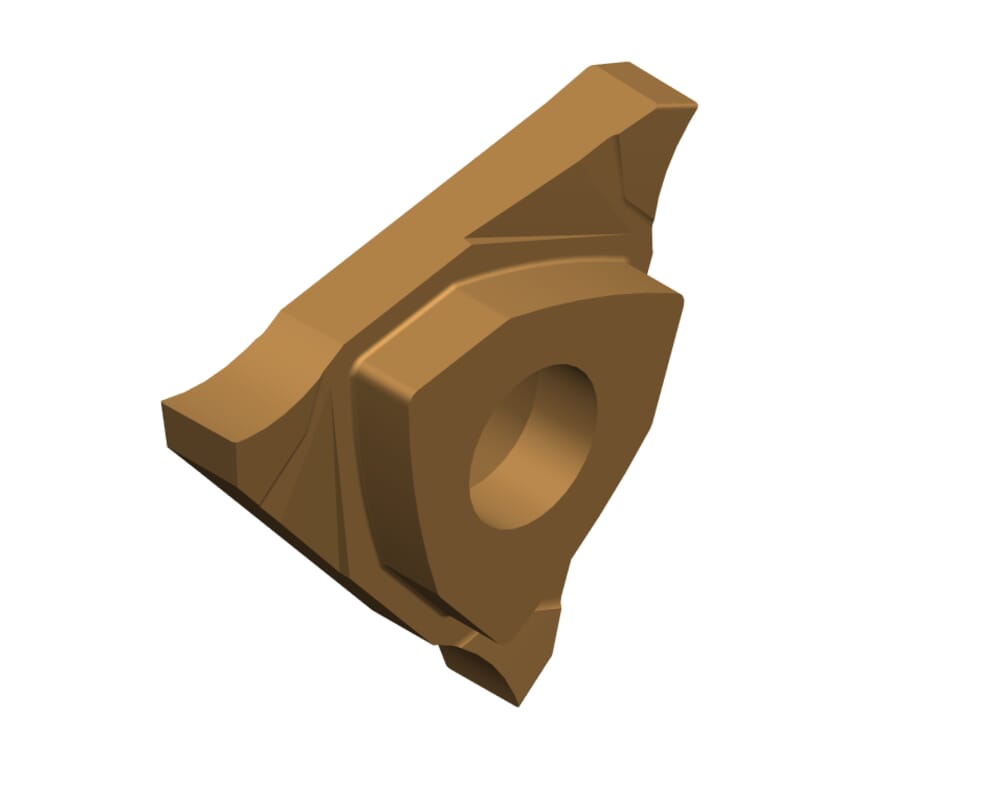

HORN Insert R314.0315.00 TI25 for Milling
Please note:Technical instructions
eclass-shortcut
21-18-20-01
ISO_SSC
HORN314027101R$$$$$
DIN_SSC
HORN-314027101R
Katalog_SSC
314027R
Width of groove (w)
3.26
mm
Nominal range (Nw)
3.15
mm
Plate thickness without cutting edge (s)
5.4
mm
Corner radius (r)
0.15
mm
| Downloads | |
|---|---|
| R314031500_20210625_184118939.DXF | Download |
| R314031500_20210630_181520757.STP | Download |
| Download all files | |
