R314.0415.40 TI25
Inserts
Part number R314041540TI25

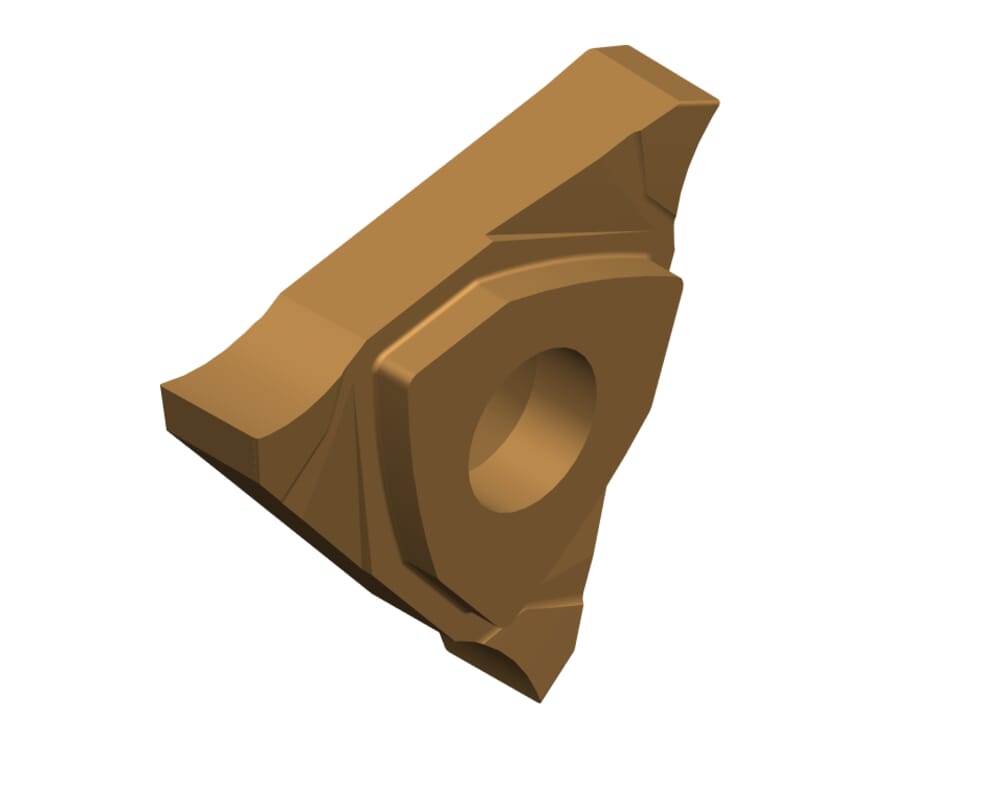

HORN Inserts R314.0415.40 TI25 for Milling
Please note:Technical instructions
eclass-shortcut
21-18-20-01
ISO_SSC
HORN314041101R$$$$$
DIN_SSC
HORN-314041101R
Katalog_SSC
314041R
Width of groove (w)
4.26
mm
Nominal range (Nw)
4.15
mm
Plate thickness without cutting edge (s)
5.4
mm
Corner radius (r)
0.15
mm
| Downloads | |
|---|---|
| R314041540_20210625_184323614.DXF | Download |
| R314041540_20240117_000729378.STP | Download |
| Download all files | |
