R314.0540.40 TI25
Insert
Part number R314054040TI25

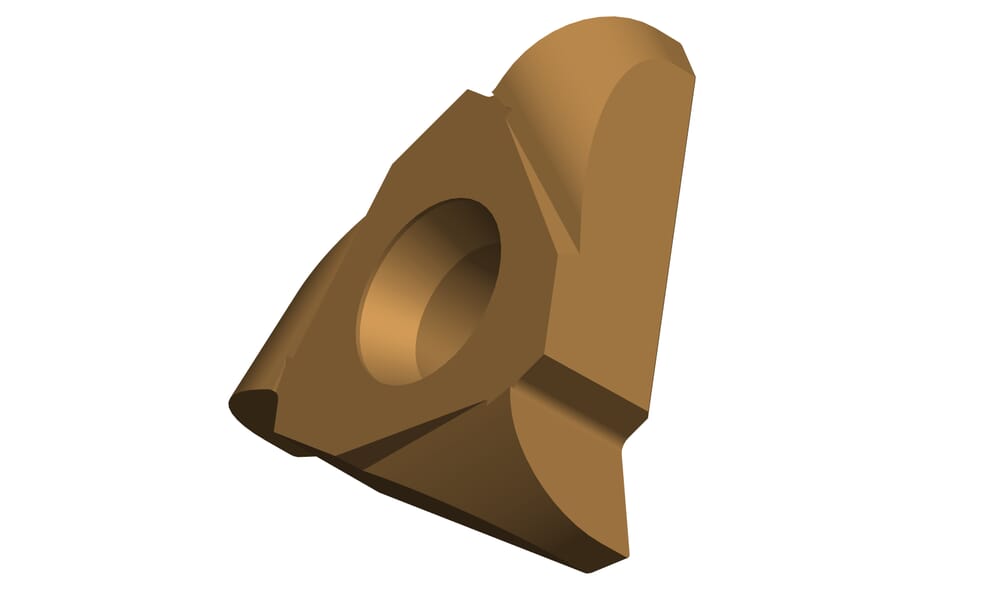

HORN Insert R314.0540.40 TI25 for Milling
Please note:Technical instructions
groove-width-met
10
mm
eclass-shortcut
21-18-20-01
ISO_SSC
HORN314052101R$$$$$
DIN_SSC
HORN-314052101R
Katalog_SSC
314052R

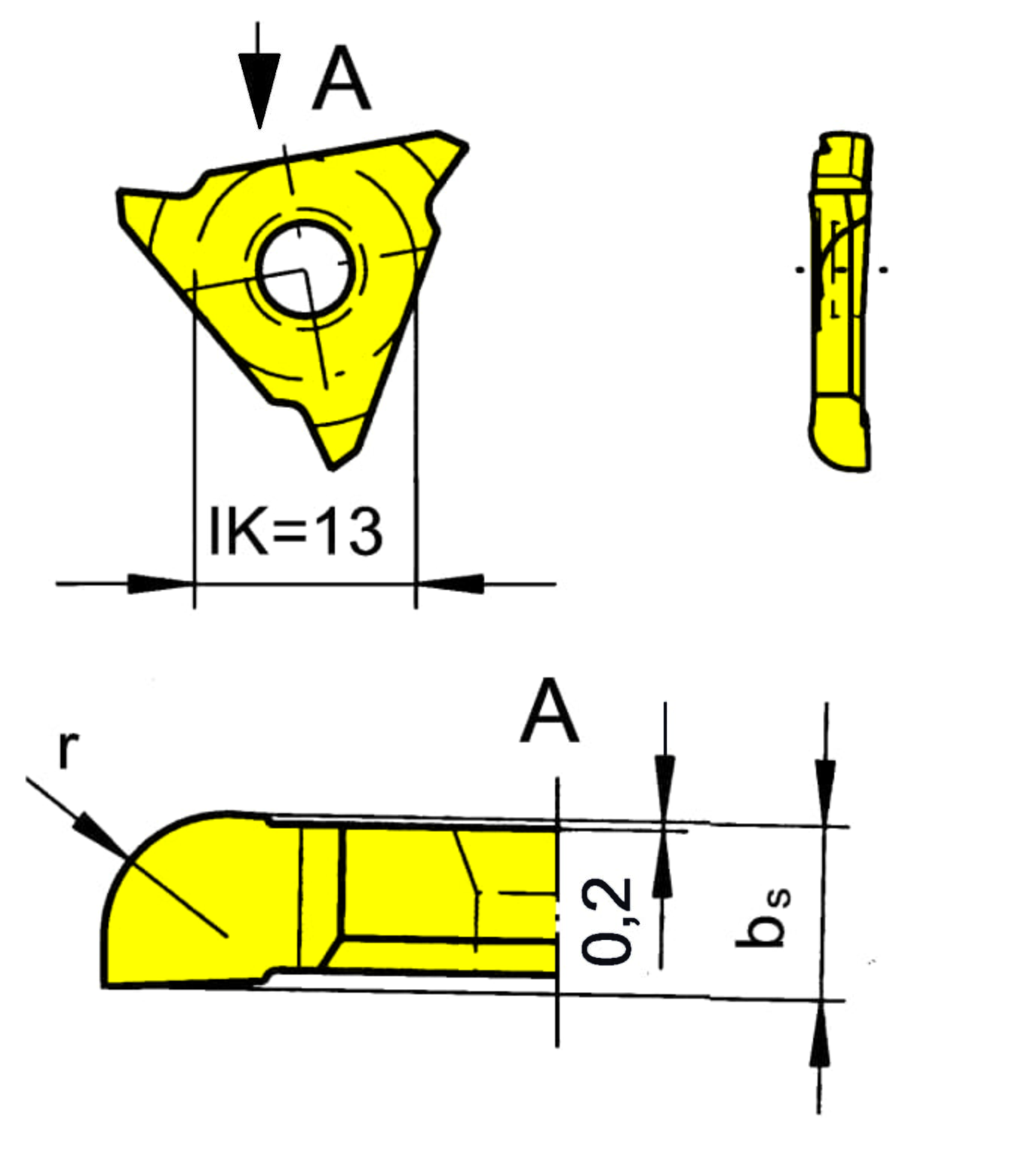

Width of groove (bs)
5.47
mm
Corner radius (r)
4
mm
| Downloads | |
|---|---|
| R314054040_20210628_212204548.DXF | Download |
| R314054040_20230113_181342385.STP | Download |
| Download all files | |
