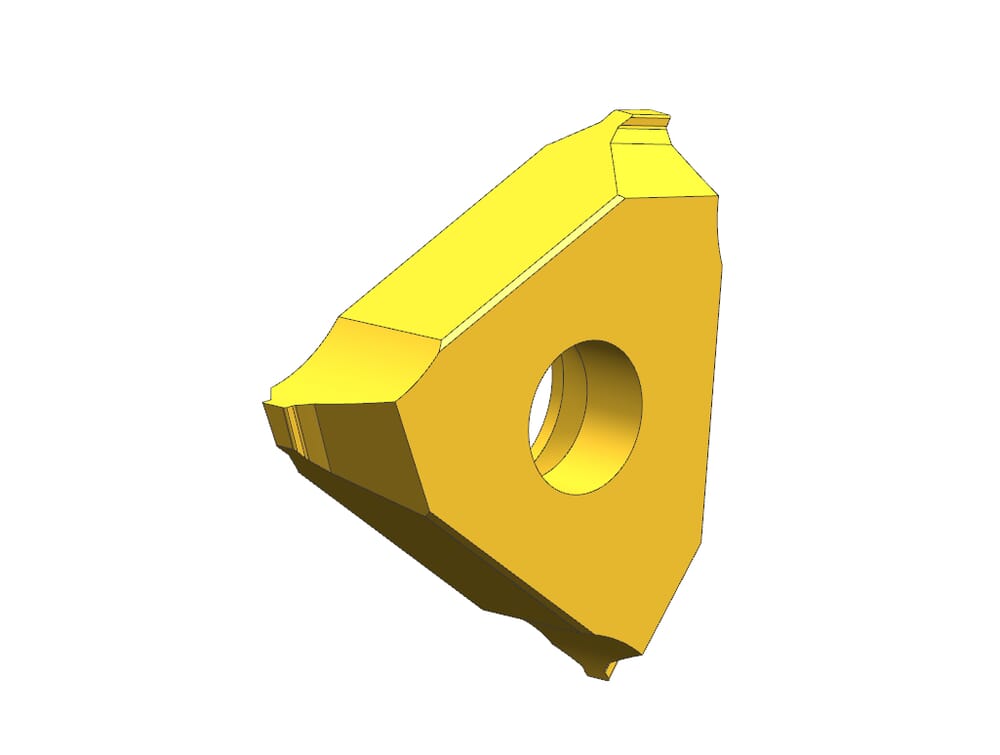

R314.1105.54 TN35

Inserts

Part number R314110554TN35

HORN Inserts R314.1105.54 TN35 for Milling

DIN_SSC

HORN-314052101R

Corner radius (r)

0.1 mm

Plate thickness without cutting edge (s)

5.45 mm

Cutting insert thickness (Plant to cutting edge) (s1)

4.52 mm

Nominal range (Nw)

1.1 mm

Milling depth without NAKF (t1)

0.49 mm

Maximum milling depth/ depth of groove (tmax)

0.5 mm

Width of groove (w)

1.21 mm

Katalog_SSC

314052R

ISO_SSC

HORN314052101R$$$$$

eclass-shortcut

21-18-20-01
