R314.2617.54 TN35

Inserts

Part number R314261754TN35

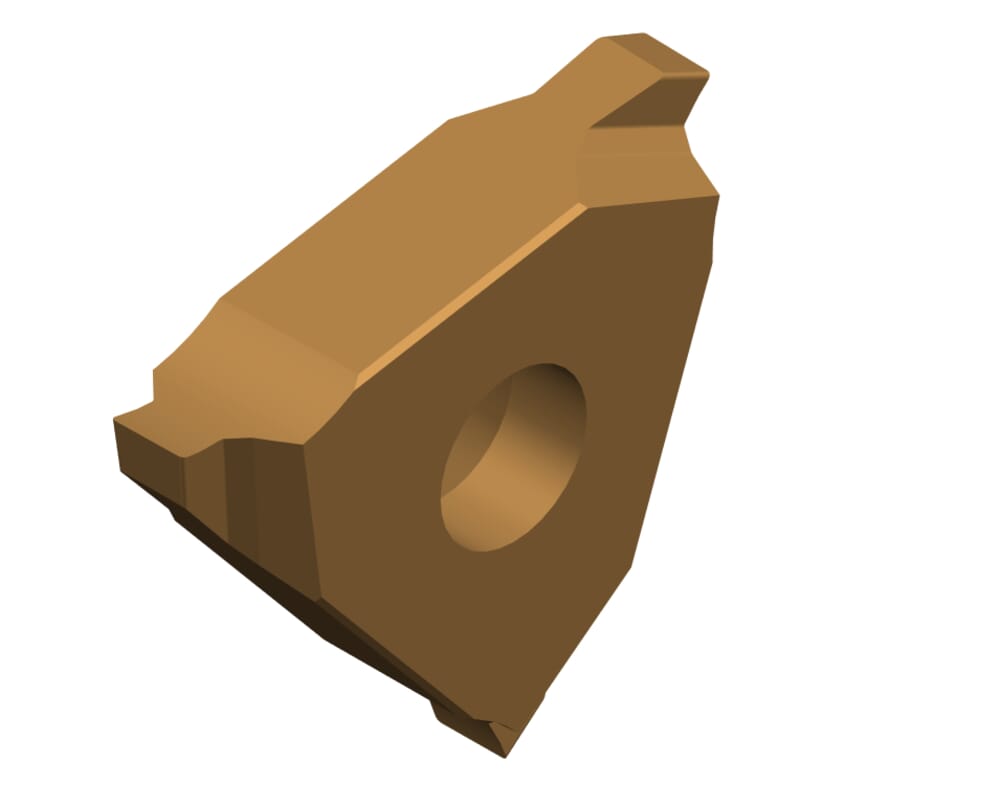

HORN Inserts R314.2617.54 TN35 for Milling

DIN_SSC

HORN-314041101R

Corner radius (r)

0.15 mm

Plate thickness without cutting edge (s)

5.45 mm

Cutting insert thickness (Plant to cutting edge) (s1)

4.54 mm

Nominal range (Nw)

2.65 mm

Milling depth without NAKF (t1)

1.72 mm

Maximum milling depth/ depth of groove (tmax)

1.75 mm

Width of groove (w)

2.76 mm

Katalog_SSC

314041R

ISO_SSC

HORN314041101R$$$$$

eclass-shortcut

21-18-20-01
