R314.8043.00 AS45
Insert
Part number R314804300AS45

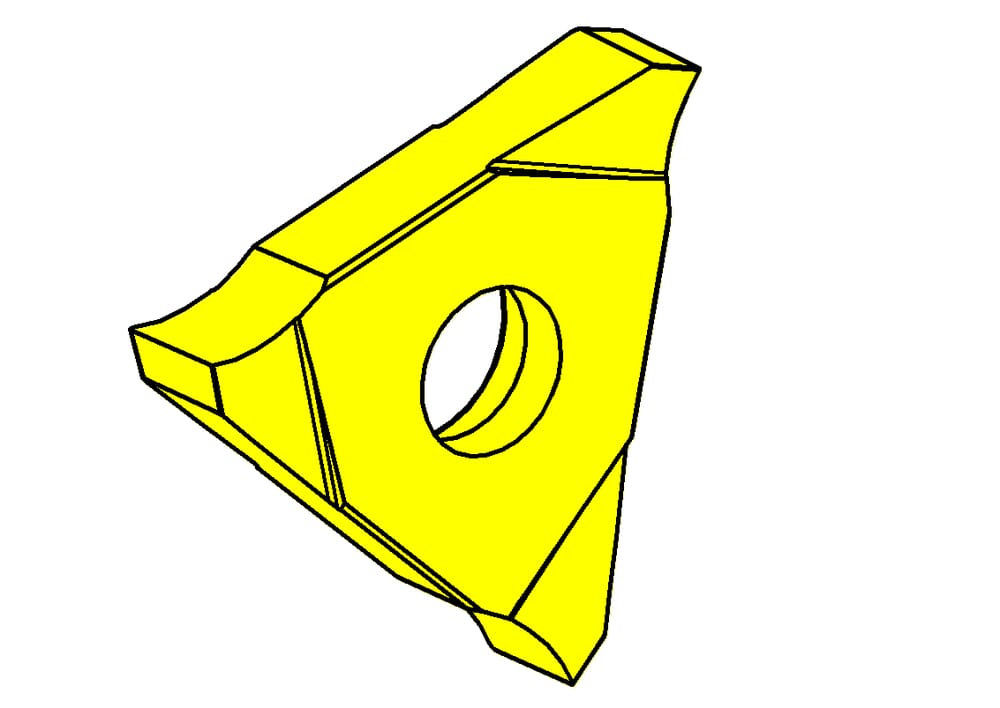

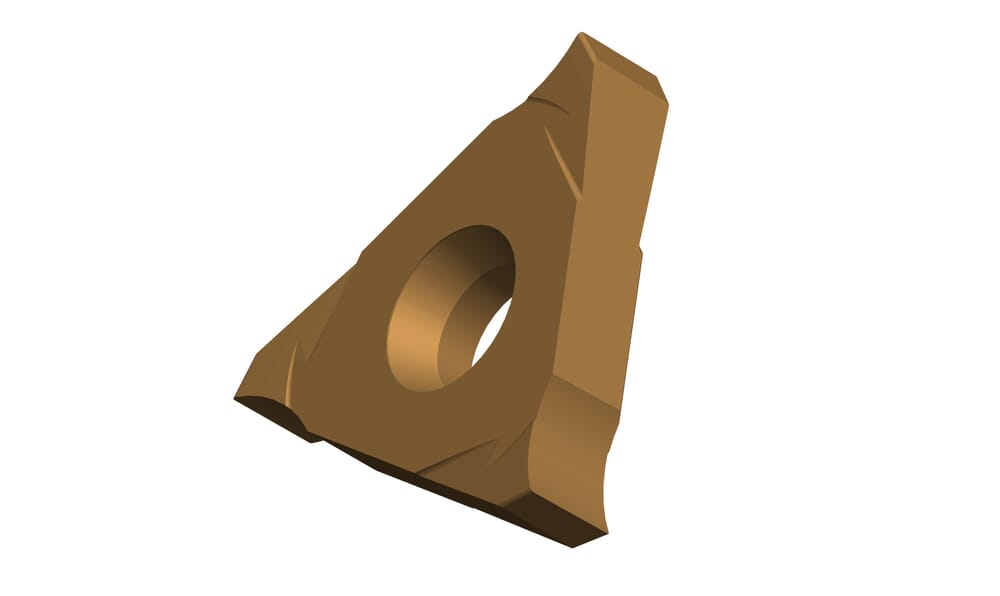

HORN Insert R314.8043.00 AS45 for Milling
Please note:Technical instructions
groove-width-met
8
mm
eclass-shortcut
21-18-20-01
ISO_SSC
HORN314041101R$$$$$
DIN_SSC
HORN-314041101R
Katalog_SSC
314041R

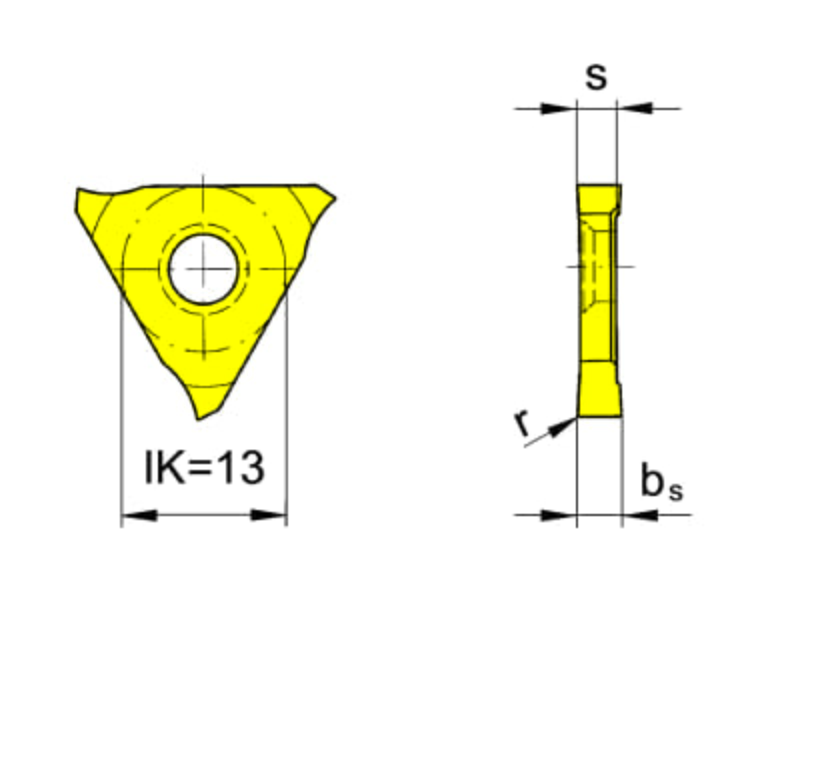

Width of groove (bs)
4.3
mm
Plate thickness without cutting edge (s)
4.1
mm
Corner radius (r)
0.2
mm
| Downloads | |
|---|---|
| R314804300_20210628_212626163.DXF | Download |
| R314804300_20210630_174834566.STP | Download |
| Download all files | |
