R356.1616.0.15.IK
Toolholder
Part number R3561616015IK

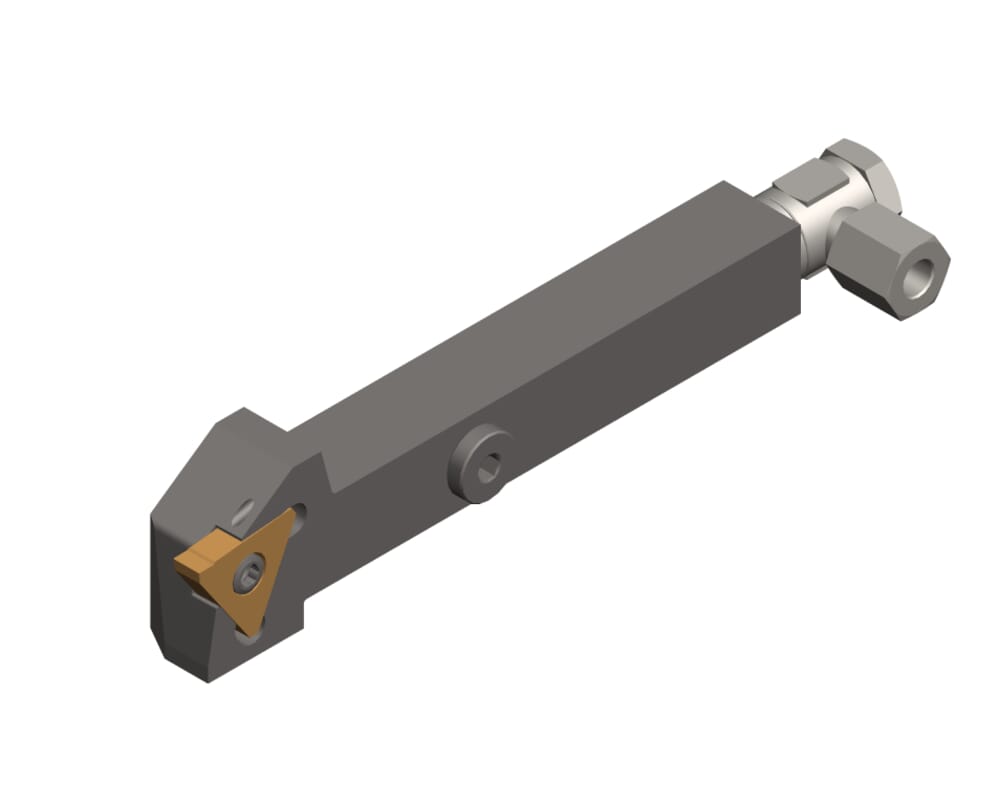

HORN Toolholder R356.1616.0.15.IK for Turning
Please note:Technical instructions
Adjustment dimension locating face insert (f1)
10.8
mm
eclass-shortcut
21-18-10-04
Plating seat size (Größe)
5
ISO_CCTMS
VKT01A1616$$$$
DIN_CCTMS
VKT16160115
Katalog_CCTWS
31505R
DIN_CCTWS
HORN-31505051R
ISO_CCTWS
HORN31505$051R$$$$$
Head length top (including cutting edge) (l3)
28
mm
Head length (including cutting edge) (l2)
22
mm
Peak height (h1)
21
mm
Shank height (h)
16
mm
Total length (including cutting insert) (l1)
125
mm
Shank width (b)
16
mm
| Downloads | |
|---|---|
| R3561616015IK_20210628_215451872.DXF | Download |
| R3561616015IK_20210630_141249387.STP | Download |
| Download all files | |
