R356.2020.0.13.IK
Toolholder
Part number R3562020013IK

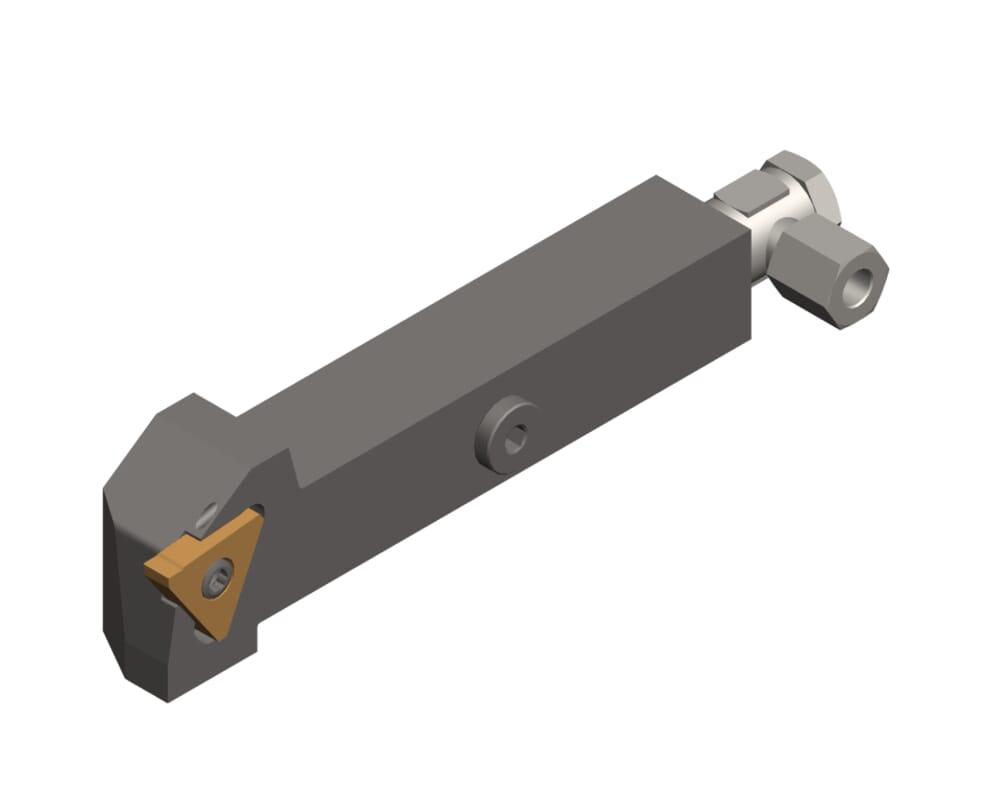

HORN Toolholder R356.2020.0.13.IK for Turning
Please note:Technical instructions
Adjustment dimension locating face insert (f1)
17
mm
eclass-shortcut
21-18-10-04
Plating seat size (Größe)
3
ISO_CCTMS
VKT01A2020$$$$
DIN_CCTMS
VKT20200115
Katalog_CCTWS
31503R
DIN_CCTWS
HORN-31503051R
ISO_CCTWS
HORN31503$051R$$$$$
Head length top (including cutting edge) (l3)
30
mm
Head length (including cutting edge) (l2)
21
mm
Peak height (h1)
25
mm
Shank height (h)
20
mm
Total length (including cutting insert) (l1)
125
mm
Shank width (b)
20
mm
