R356.2525.0.13.IK
Toolholder
Part number R3562525013IK

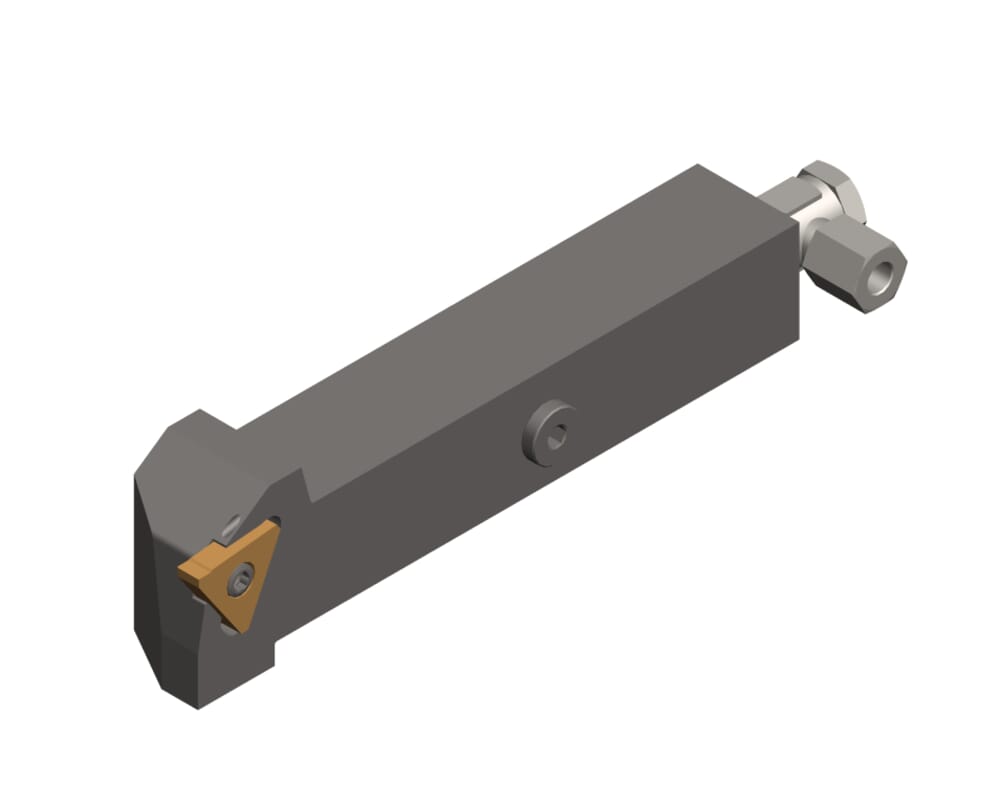

HORN Toolholder R356.2525.0.13.IK for Turning
Please note:Technical instructions
Adjustment dimension locating face insert (f1)
22
mm
eclass-shortcut
21-18-10-04
Plating seat size (Größe)
3
ISO_CCTMS
VKT01A2525$$$$
DIN_CCTMS
VKT25250115
Katalog_CCTWS
31503R
DIN_CCTWS
HORN-31503051R
ISO_CCTWS
HORN31503$051R$$$$$
Head length top (including cutting edge) (l3)
30
mm
Head length (including cutting edge) (l2)
21
mm
Peak height (h1)
30
mm
Shank height (h)
25
mm
Total length (including cutting insert) (l1)
150
mm
Shank width (b)
25
mm
| Downloads | |
|---|---|
| R3562525013IK_20210628_220312508.DXF | Download |
| R3562525013IK_20210630_173752506.STP | Download |
| Download all files | |
