R360.TS40.K1

Toolholder

Part number R360TS40K1

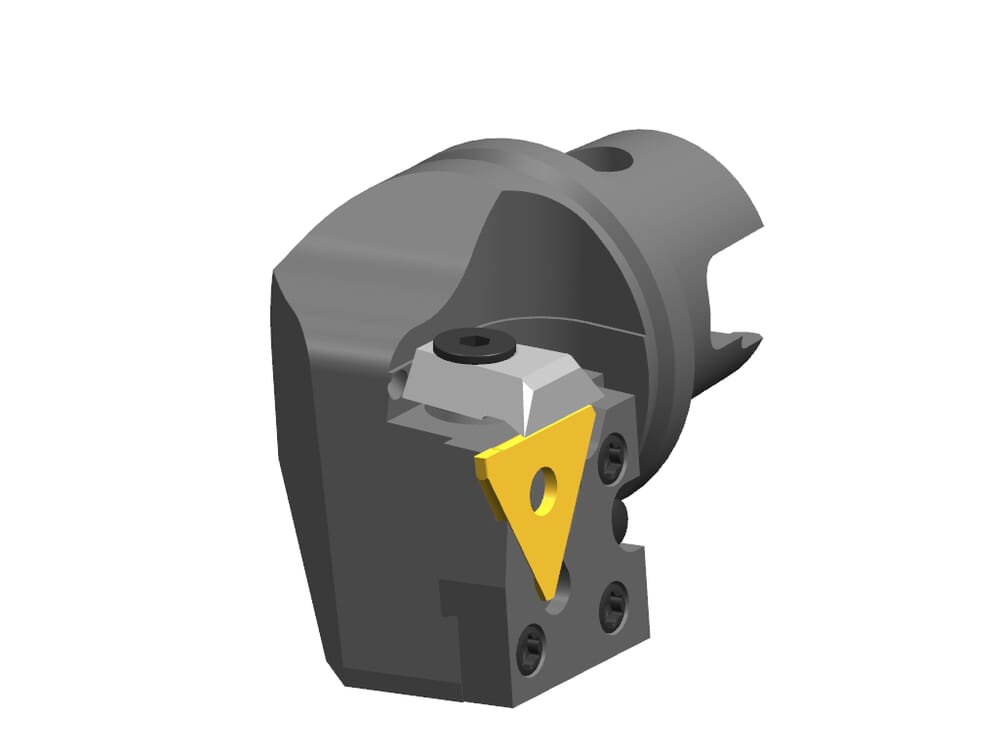

HORN Toolholder R360.TS40.K1 for Turning

Adjustment dimension (formula) (f)

f1+w-a1

eclass-shortcut

21-18-10-04

Length from stop (l1)

40 mm

Plating seat size (Größe)

ISO_CCTMS

KMT01C0400$$$$

DIN_CCTMS

KMT04000185

Katalog_CCTWS

31201N;31201R;31201L;31208N;31211N

DIN_CCTWS

HORN-31201000N;HORN-31201000R;HORN-31201000L;HORN-31208000N;HORN-31211000N

ISO_CCTWS

HORN-31201$000N$$$$$;HORN-31201$000R$$$$$;HORN-31201$000L$$$$$;HORN-31208$000N$$$$$;HORN-31211$000N$$$$$

Clamping range maximum (Spannbereich)

1.9 mm

Clamping range minimum (Spannbereich)

0.5 mm

Peak height (h1)

27.3 mm

Cutting insert center from the middle (f1)

19 mm

Maximum depth of groove (tmax)

4 mm

Adjustment dimension from center (f2)

20.5 mm

Bore diameter rotate (d1)

40 mm

Downloads
R360_KM40_K1.STP	Download
Download all files
