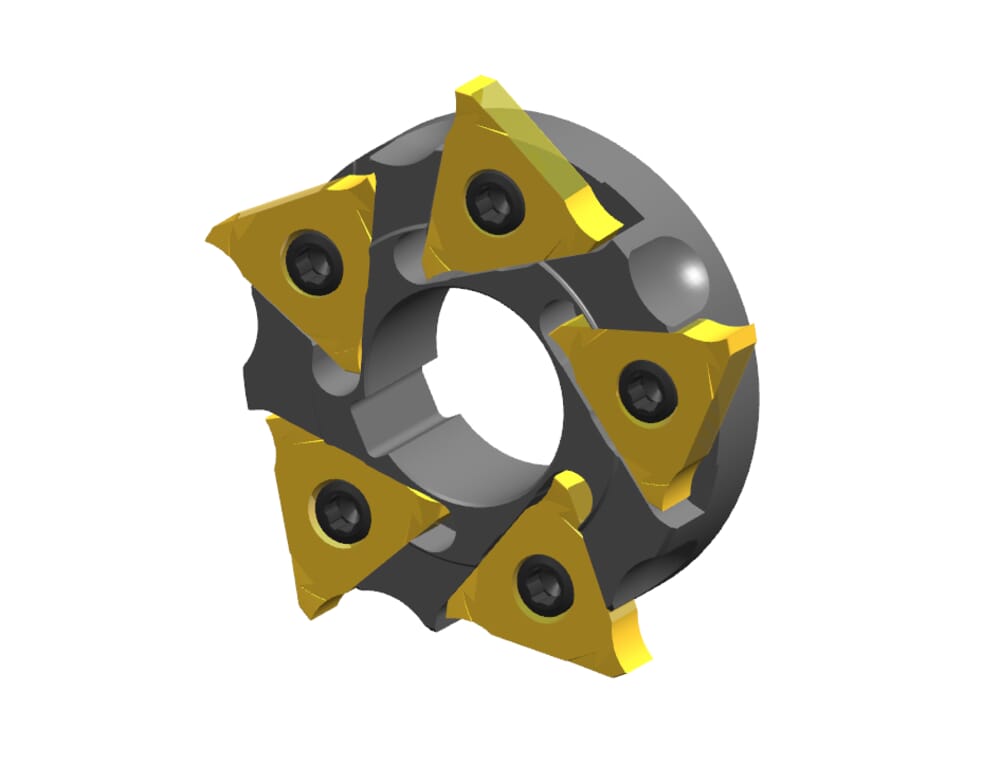

R381.0063.05

Toolholders

Part number R381006305

HORN Toolholders R381.0063.05 for Milling

eclass-shortcut

21-02-91-13

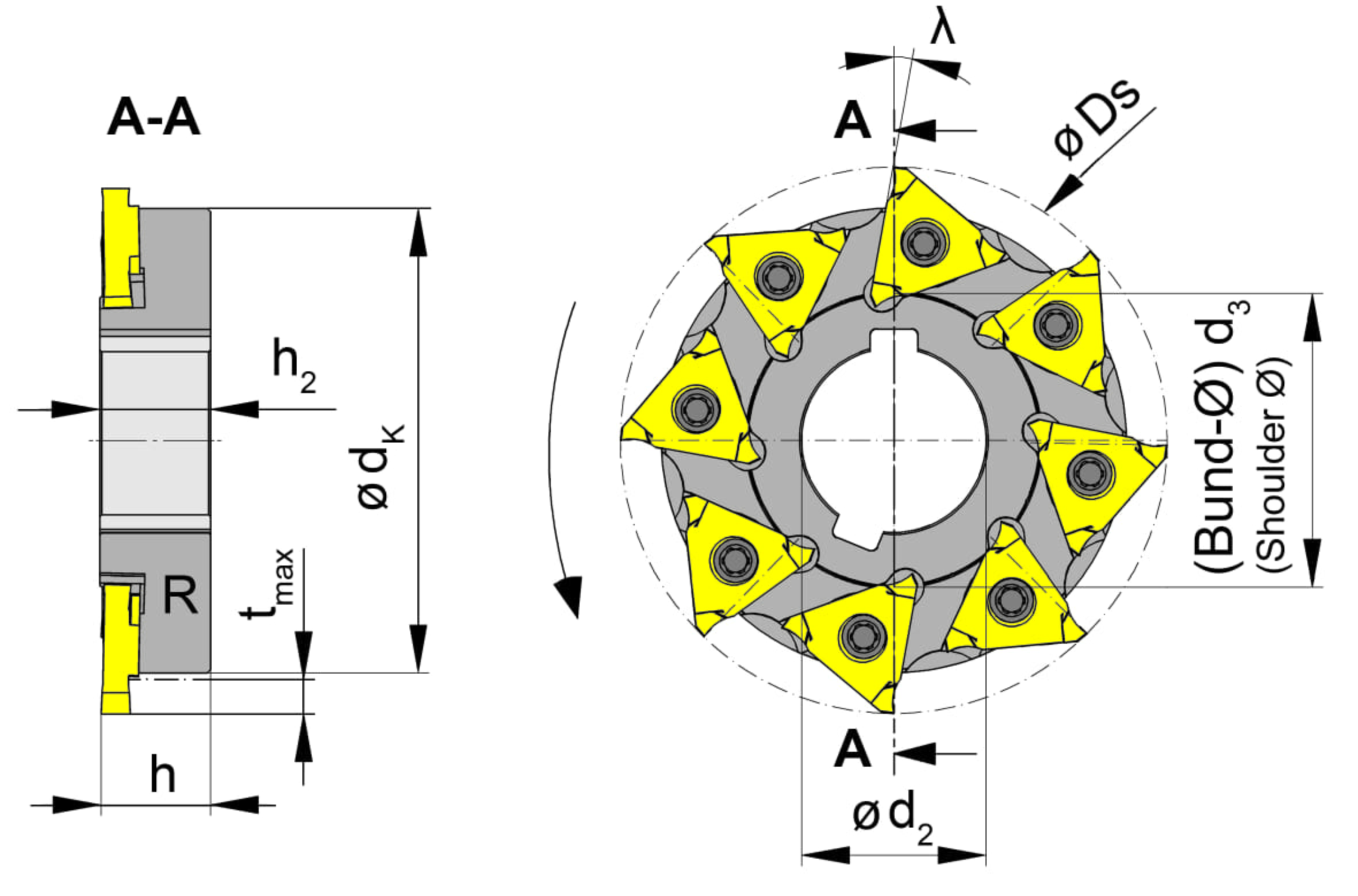

Miller body diameter (dK)

51 mm

Mounting hole diameter (d2)

22 mm

ISO_CCTMS

FDA01G2200$$$$

DIN_CCTMS

FDA02200100

Katalog_CCTWS

314027R;314041R;314052R

DIN_CCTWS

HORN-314027101R;HORN-314041101R;HORN-314052101R

ISO_CCTWS

HORN314027101R$$$$$;HORN314041101R$$$$$;HORN314052101R$$$$$

Einlegewinkel Wendeschneidplatte (λ)

14 °

Number of teeth (Z)

5 St.

Bore diameter miller body (d3)

34 mm

Height of miller body (h2)

14.2 mm

Miller height, miller length, miller thickness (h)

14 mm

Cutting diameter (Ds)

63 mm
