R381.0100.10

Toolholders

Part number R381010010

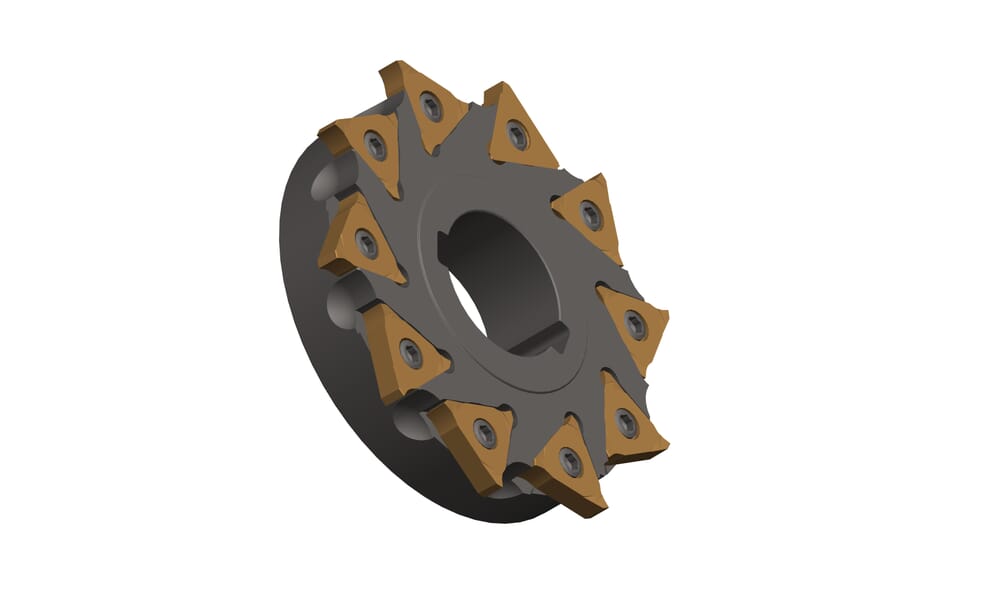

HORN Toolholders R381.0100.10 for Milling

eclass-shortcut

21-02-91-13

Miller body diameter (dK)

88 mm

Mounting hole diameter (d2)

32 mm

ISO_CCTMS

FDA01G3200$$$$

DIN_CCTMS

FDA03200100

Katalog_CCTWS

314027R;314041R;314052R

DIN_CCTWS

HORN-314027101R;HORN-314041101R;HORN-314052101R

ISO_CCTWS

HORN314027101R$$$$$;HORN314041101R$$$$$;HORN314052101R$$$$$

Einlegewinkel Wendeschneidplatte (λ)

10 °

Number of teeth (Z)

10 St.

Bore diameter miller body (d3)

48 mm

Height of miller body (h2)

20.2 mm

Miller height, miller length, miller thickness (h)

20 mm

Cutting diameter (Ds)

100 mm
