R381.A060.13.04
Disk milling cutter
Part number R381A0601304
HORN Disk milling cutter R381.A060.13.04 for Milling
Please note:Technical instructions

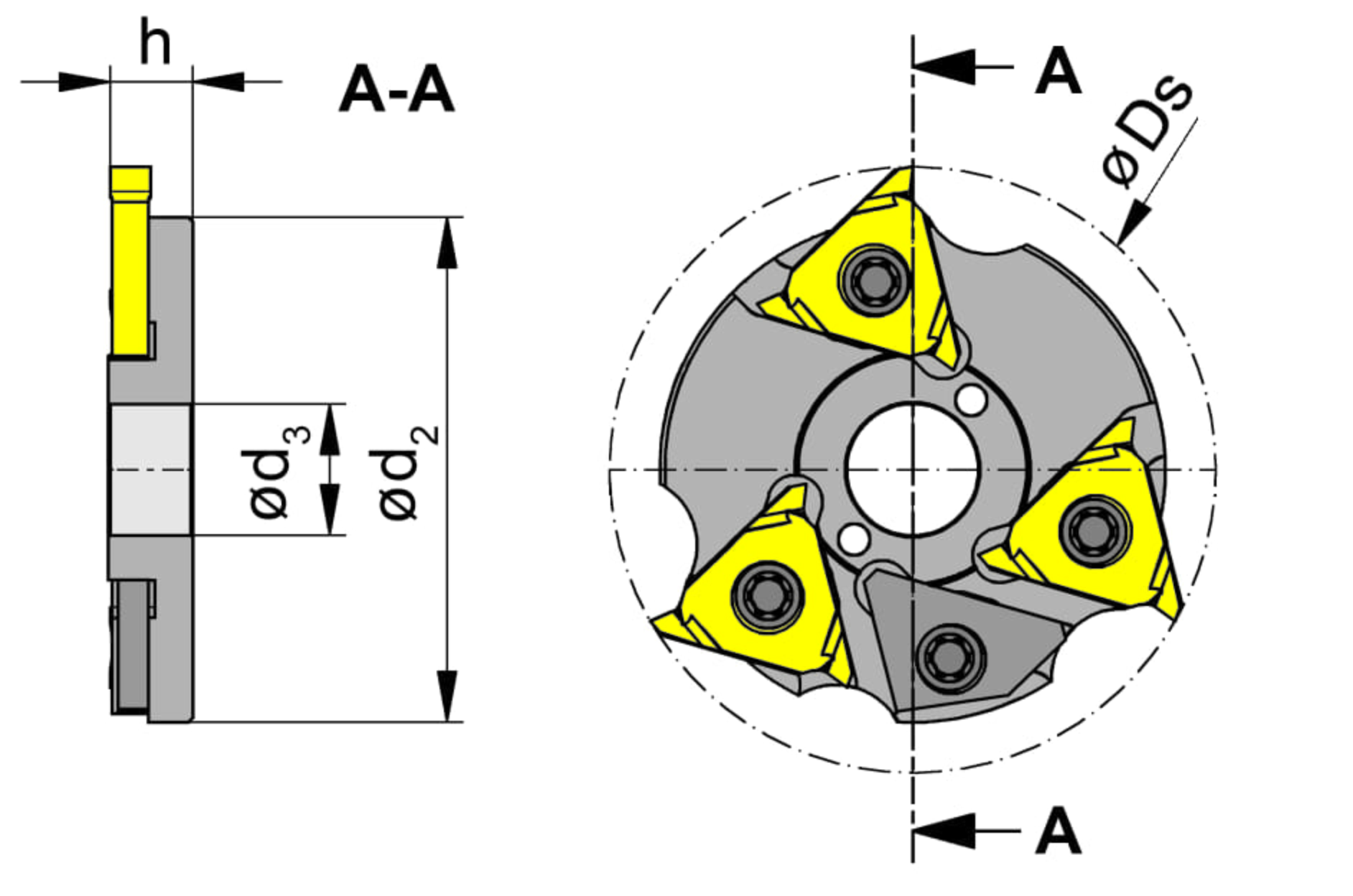

Cutting diameter (Ds)
60
mm
Miller height, miller length, miller thickness (h)
8.2
mm
Machine type (Maschinentyp)
Star SR-20J
Clamping diameter (d3)
13
mm
ISO_SSC
HORN314027101N$$$$$
DIN_SSC
HORN314027101N
Katalog_SSC
314027N
Maximum milling depth/ depth of groove (tmax)
4.5
mm
Miller body diameter (d2)
50
mm
eclass-shortcut
21-02-91-13
| Downloads | |
|---|---|
| R381A0601304.DXF | Download |
| R381A0601304_20240117_034149193.STP | Download |
| Download all files | |
