R381.T080.16.04
Disk milling cutter
Part number R381T0801604

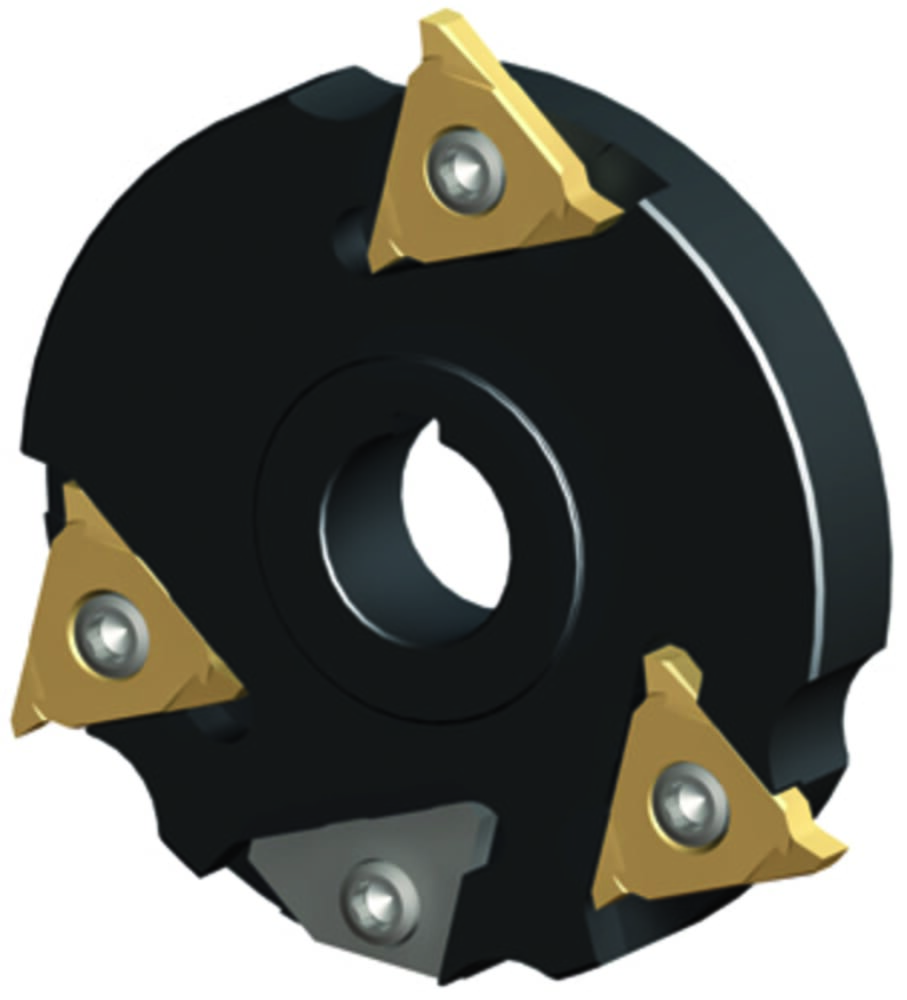

HORN Disk milling cutter R381.T080.16.04 for Milling
Please note:Technical instructions

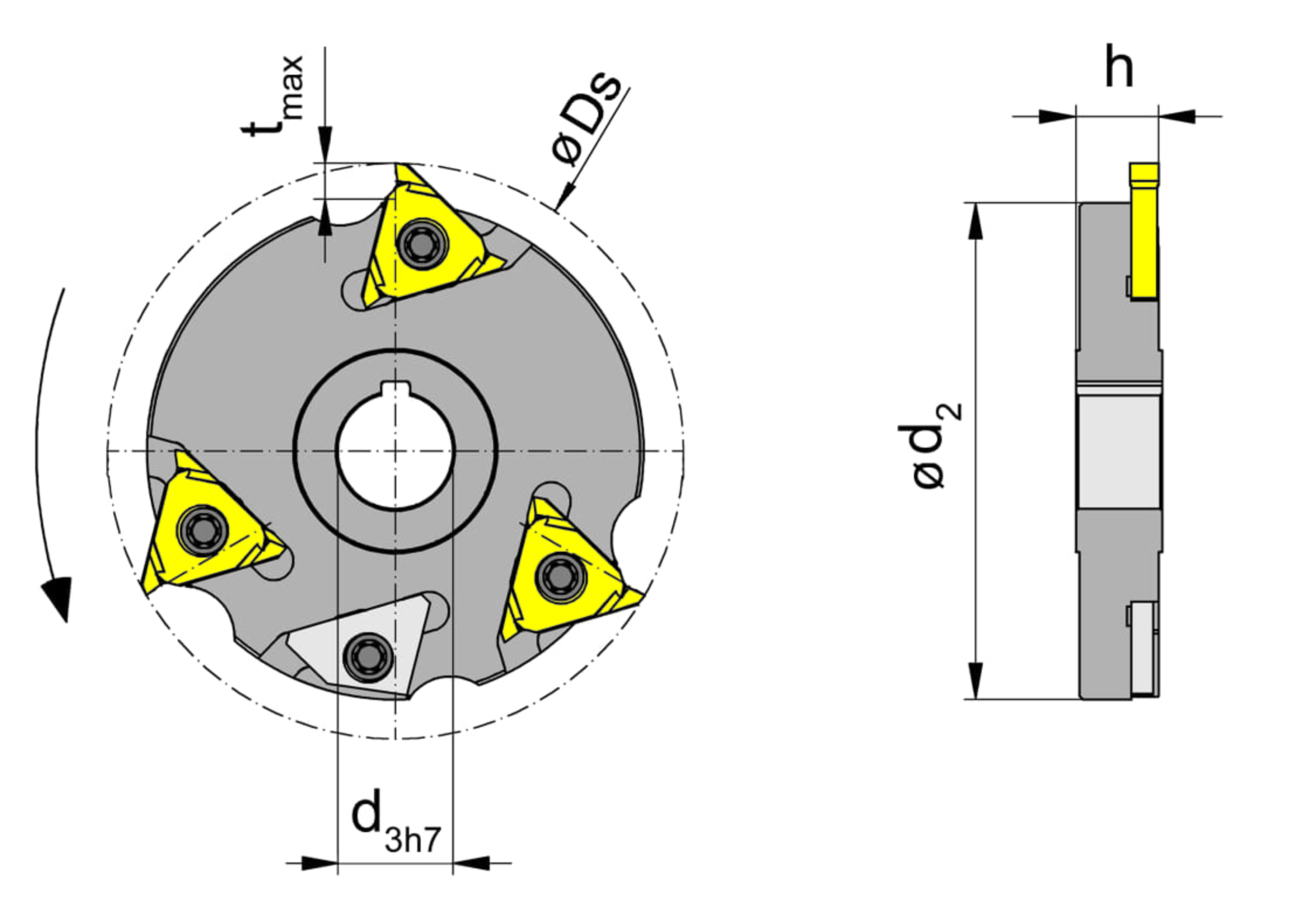

Cutting diameter (Ds)
80
mm
Miller height, miller length, miller thickness (h)
12
mm
Machine type (Maschinentyp)
TRAUB TNL18
Clamping diameter (d3)
16
mm
ISO_CCTWS
HORN314027101N$$$$$
DIN_CCTWS
HORN-314027101N
Katalog_CCTWS
314027N
Maximum milling depth/ depth of groove (tmax)
5
mm
Miller body diameter (d2)
69
mm
eclass-shortcut
21-02-91-13
Downloads | |
---|---|
R381T0801604_20210629_214610089.DXF | Download |
R381T0801604_20230113_211026811.STP | Download |
Download all files |
