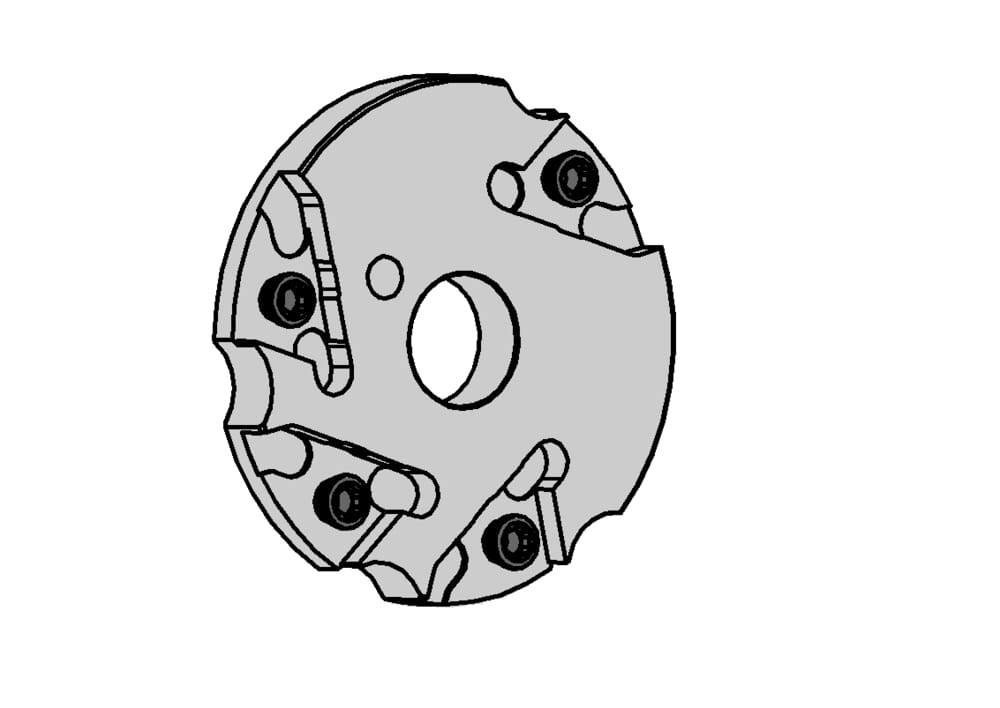

R381.X073.16.04
Toolholder
Part number R381X0731604
HORN Toolholder R381.X073.16.04 for Milling
Please note:Technical instructions

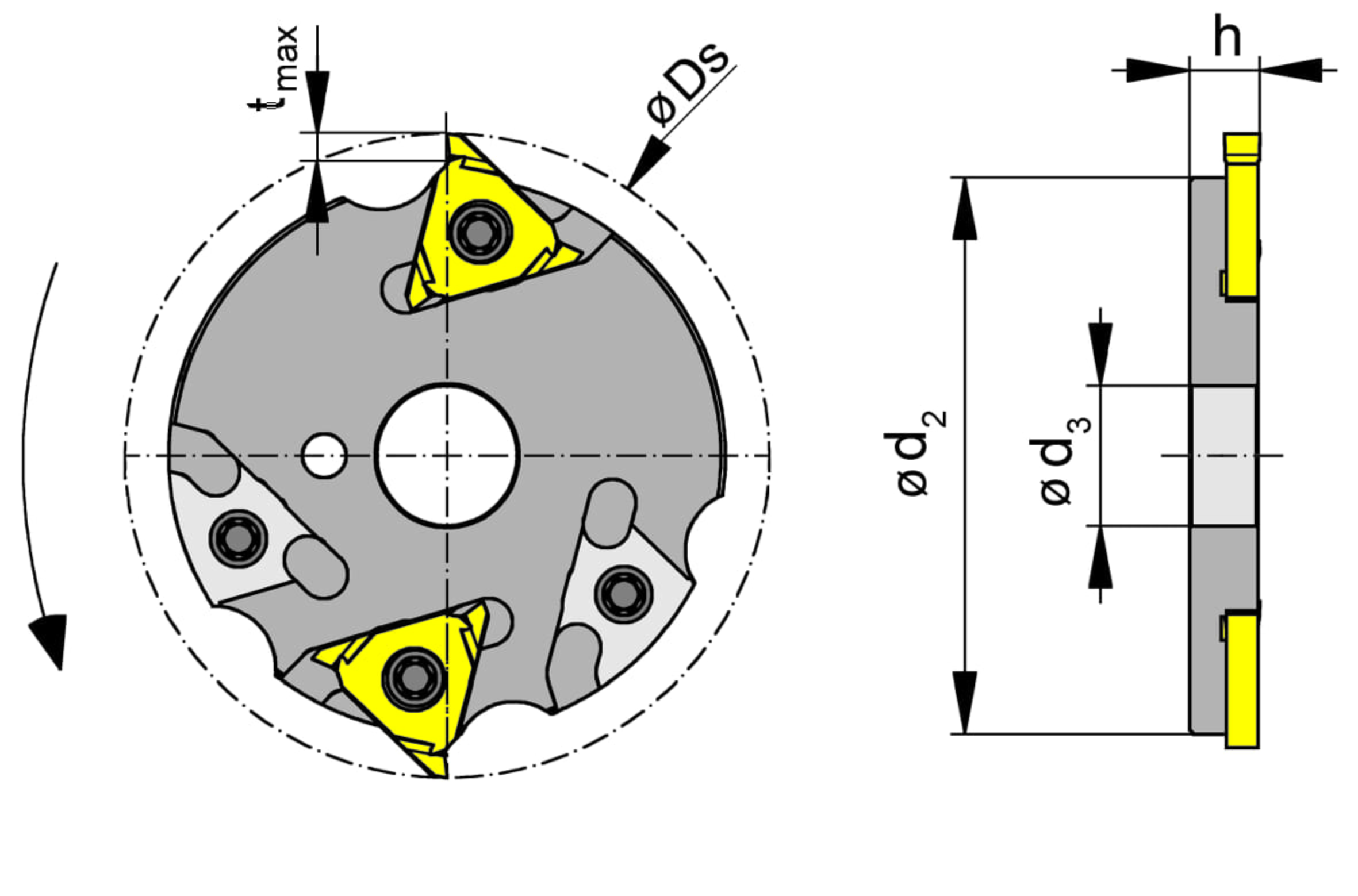

Cutting diameter (Ds)
73.5
mm
Miller height, miller length, miller thickness (h)
8
mm
Machine type (Maschinentyp)
Index MS25
Clamping diameter (d3)
16
mm
ISO_CCTWS
HORN314027101N$$$$$
DIN_CCTWS
HORN-314027101N
Katalog_CCTWS
314027N
Maximum milling depth/ depth of groove (tmax)
5
mm
Miller body diameter (d2)
63.5
mm
eclass-shortcut
21-02-91-13
| Downloads | |
|---|---|
| R381X0731604.DXF | Download |
| R381_X073_16_04.STP | Download |
| Download all files | |
