R381.X090.27.04
Toolholders
Part number R381X0902704

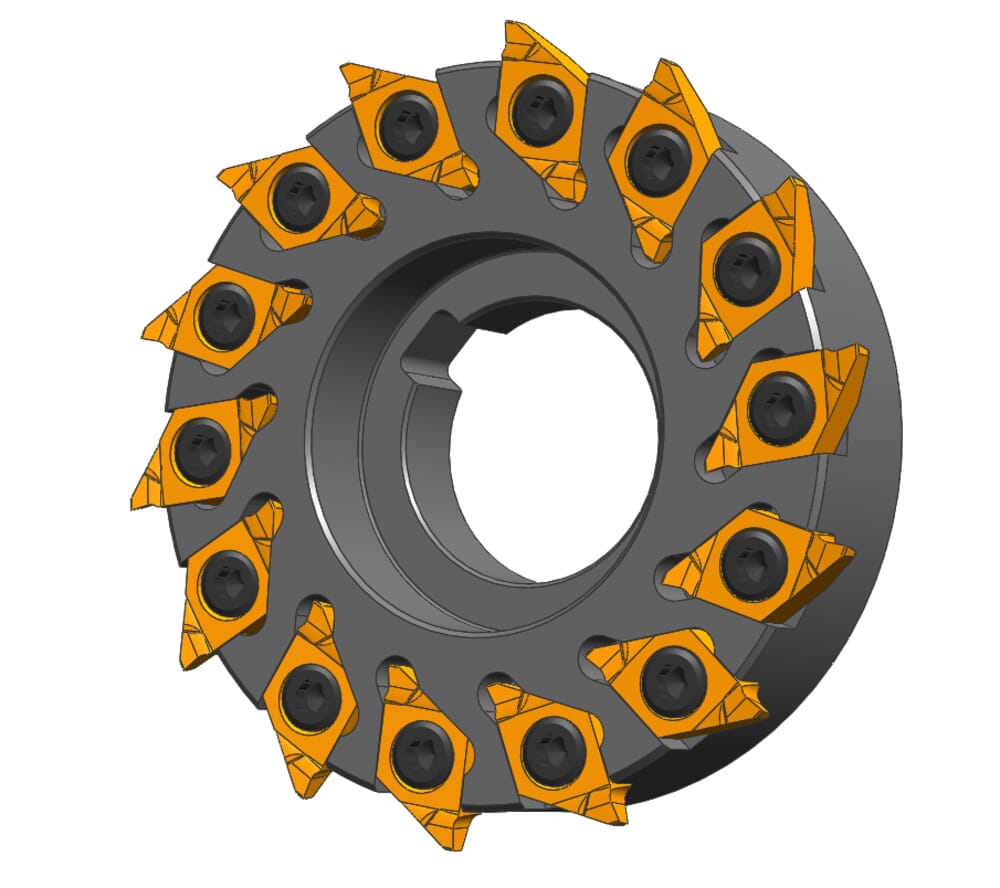

HORN Toolholders R381.X090.27.04 for Milling
Please note:Technical instructions
Cutting diameter (Ds)
90
mm
Miller height, miller length, miller thickness (h)
16.2
mm
Machine type (Maschinentyp)
Index ABC
Clamping diameter (d3)
27
mm
ISO_CCTWS
HORN314041101R$$$$$
DIN_CCTWS
HORN-314041101R
Katalog_CCTWS
314041R
Maximum milling depth/ depth of groove (tmax)
5
mm
Miller body diameter (d2)
78
mm
eclass-shortcut
21-02-91-13
| Downloads | |
|---|---|
| R381X0902704_20210629_214721284.DXF | Download |
| R381_X090_27_04_20171121_192914833.STP | Download |
| Download all files | |
